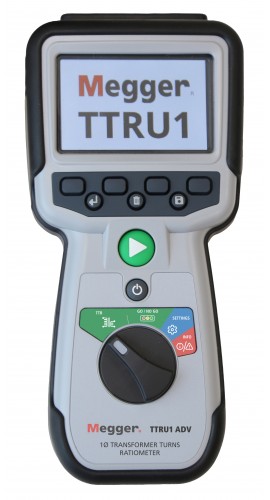

Megger TTRU1-ADV OffersPower through electromechanical transformer testings with this handheld transformer turns ratiometer guided by color-coded leads, clamps, and customizable on-screen vectors while ensuring that the testing parameters match the transformer's nameplate. Use customizable vector lists for data storage on frequently tested transformers, simplifying the selection process for common transformer configurations and results interpretations. Furthermore, users can organize and export readable results by email, PowerDB, or an optional USB printer (sold separately).
Minimize training duration with the intuitive full-color Hi bright LCD user interface, rotary knob for function selection, and automatic results storage. Obtain accurate results with the easy-to-follow setup and perform over 1000 turn ratio tests on a single charge of a NiMH AA battery. In addition, when the batteries need recharging, plug them into any standard USB wall charger or connect them to your PC.
Features
Applications
| Voltage Maximum | Induced: 62.5 VOutput: 45 V AC peak |
| Maximum Turns Ratio | 50,000 down |
| Maximum Current | 1 A |
| Pass/Fail Ratio Evaluation | Yes |
| Additive/Subtractive Polarity Validation | Yes |
| Excitation Current Measurements | Yes |
| Go/No Go Short Circuit, Open Circuit, Inductance | Yes |
| Customisable Transformer Vector List and Voltages | Yes |
| Automatic Results Storage | Yes |
| Three Phase Measurements | Yes (unguided) |
| Self-Check Diagnosis | Yes |
| USB Drive Save and Export | Yes |
| Output | Voltage: Single phase, 1 to 50 VCurrent: 0.1 mA to 1 A |
| Turns Ratio | Measurement methods: Single phase step up/single phase step downTurns ratio range and accuracy: Step down excitation25 to 50 V: ±0.05% 0.8 to 1000±0.1% 1001 to 2000±0.3% 2001 to 15,000 ±1% 15,000+1 to 24 V:±0.1% 0.8 to 1000 ±0.2% 1001 to 2000±0.6% 2001 to 15,000±2% 15,000+Step up measurement:25 to 250 V: ±0.05% 0.8 to 200 (most Power Tx) 1 to 24 V: ±0.1% 0.8 to 200 |
| Excitation | Current resolution: 0.1 mA, 0.1 mA to 100 mA/1 mA, 101 mA to 1000 mACurrent accuracy: ±1% reading, ±0.1 mA |
| Frequency Accuracy | ±1% reading, ±0.1 Hz |
| Phase Range | Range: 0 to 360°Accuracy: ±0.05° |
| Printer | 2" (51 mm) thermal printer (sold separately), prints all measurement data displayed on GUI |
| Display | Full colour 3.5" (88 mm) 320 x 240 pixels Hi-bright LCD screen with 'auto dim' and 'auto off' to preserve battery life |
| Case | Heavy duty over-molded case with built in connection for hook strap. Carry case with quick start guide, belt loop hook, and pouches for included lead set and accessories |
| Communication/Control Software | USB interface for PC download with custom GUISoftware: Microsoft Excel export and PowerDB Import |
| Internal/External Data Storage | Automatic results storageUp to 10 custom vector storageUp to 10,000 sets of single phase results internal storageTransferable via USB 2.0 drive |
| Environmental Conditions | Operating: -4 to 122°F (-20 to 50°C) Storage: -22 to 158°F (-30 to 70°C)Relative humidity: 0 to 90%, non-condensing |
| Regulatory | Safety: IEC 61010-1:2010 + AMD1:2016EMI/EMC: IEC 61326-1:2012RoHS2: EN50581Vibe/shock: MIL-STD -810GIngress: IP54 |
| Power | Auto dim and power off battery savingType: 6 x IEC LR6 1.5 V alkaline (AA)6 x IEC HR6 1.2 V NiMH rechargeable (AA)Battery life: 1000 TTR tests on a single chargeStorage: 1+ years NiMH, 5+ years alkalineBattery charging: USB-C when set to NiMH batteries, protection against alkaline chargingPowerEx PRO NiMH battery charging: 0 to 45°C |
| Transformer Testing Standards | IEEE: C57.152-2013IEC: 60076-1:2011AS/NZS: 6076 1:2014CIGRE: 445 2011GOST: 3484.1-88 |
| Dimensions | 8.98 x 4.1 x 2.95" (22.8 x 10.5 x 7.5 cm) |
| Weight | 2.2 lbs (1 kg) |
