Mitutoyo 172-868A Ph-3515F

No reviews yet Write a Review
$11,108.94
17 sold in last 36 hour
SKU:
172-868A
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Mitutoyo 172-868A Ph-3515F

$11,108.94

DESCRIPTION

  • Erect image on high brightness screen
  • 14" (355.6 mm) dia. protractor screen with crosshairs and staggered lines for easy alignment
  • Digital angle measurement of 1' or 0.01° with built in angle counter
  • Floating-type workstage incorporates linear scales for fast, accurate measurement
  • Halogen contour illumination
  • Fiber-optic illumination cables and halogen included
  • Suitable for thread pitch measurements - free from blurred or distorted images when the workpiece is angled

SPECIFICATIONS

  • Protractor Screen

Diameter: 14" (355.6 mm)

Screen material: Fine ground glass

Reference line: Cross hair line

Screen rotation: ±360°, fine feed and clamp

Angle display (LED): 1' or 0.01° Resolution (switchable), ±370° Range,

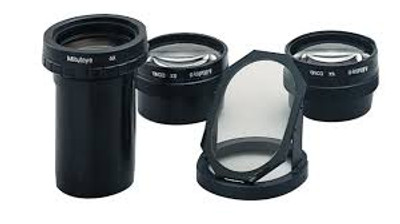

  • Projection Lens:

Standard accessory: 10x(172-011)

  • Magnification Accuracy:

Contour illumination: ±0.1% or less

Surface illumination: ±0.15% or less

  • XY Stage:

Table travel: (X-axis) 10" (254 mm)

Table size: (X, Z) 17.7 x 5.7" (450 x 146 mm)

Vertical travel: (Y-axis) 6" (152 mm)

Resolution: 0.0001" (0.001 mm)

Measuring Unit: Built in Linear scale

Maximum workpiece load: 100 lbs (45 kg)

  • Power Supply: 120V AC, 50/60Hz
  • Weight: 333 lbs (150 kg)
