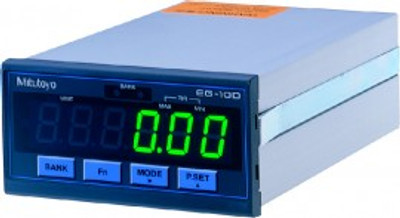

Features
| Applicable Gauge Head | LGS, LGD, LGD-M |
| Number of Gauge Inputs | 1 |
| Quantizing Error | ±1 count |
| Maximum Input Frequency | Response speed depends on gage specification |
| Resolution | 0.0005" (±99.9995")/0.01 mm (±9999.99mm) 0.00005" (±9.99995")/0.005 mm (±9999.995mm) 0.00005" (±9.99995")/0.001 mm (±999.999mm) 0.000005" (±0.999995")/0.0005 mm (±99.9995mm) 0.000005" (±0.999995")/0.0001 mm (±99.9999mm) |
| Display | Sign plus 6 digits (Green LED) |
| Tolerance Judgment Display | LED display (3 steps: Amber, green, red /5 steps: Amber, amber flashing, green, red flashing, red) |
| Input/Output | Tolerance judgment output: L1 to L5, open-collector Control output: Normal operation signal (NOM), open-collector Control input: Pre-setting, display hold, peak value clear, tolerance judgment BANK switch, open-collector or no-voltage contact signal (with/without contact point) |
| Interface | Serial BCD: Bit serial format, open-collector Analog output: 2.5 V + counting value× voltage resolution (25 mV/2.5 mV): Full-scale 0 to 5 V Digimatic input/output: Connecting to the external switch box (No.02ADF180) makes it easy to enter tolerance limits and preset values (Note: This function is not available when the gage is connected to DP-1VR, digimatic mini-processor) Can be connected to Digimatic peripherals that have data (poll) button Number of tolerance steps can be expanded by assembling EB-D counters |
| Rating | Power supply voltage: 12 to 24 V DC Power consumption: 6 W or less (50 mA maximum) Ensure at least 1 A is available per unit |
| Operating Temperature Range | 0 to 40°C (RH 20 to 80%, no condensation)/10 to 50°C (RH 20 to 80%, no condensation) |
| Applicable Input | Digimatic code (SPC) |
| Dimensions | 3.78 x 1.89 x 6.14" (96 × 48 × 156 mm) |
| Weight | 0.88 lbs (400 g) |
| Applicable Gauge Head | LGS, LGD, LGD-M |
| Number of Gauge Inputs | 1 |
| Quantizing Error | ±1 count |
| Maximum Input Frequency | Response speed depends on gage specification |
| Resolution | 0.0005" (±99.9995")/0.01 mm (±9999.99mm) 0.00005" (±9.99995")/0.005 mm (±9999.995mm) 0.00005" (±9.99995")/0.001 mm (±999.999mm) 0.000005" (±0.999995")/0.0005 mm (±99.9995mm) 0.000005" (±0.999995")/0.0001 mm (±99.9999mm) |
| Display | Sign plus 6 digits (Green LED) |
| Tolerance Judgment Display | LED display (3 steps: Amber, green, red /5 steps: Amber, amber flashing, green, red flashing, red) |
| Input/Output | Tolerance judgment output: L1 to L5, open-collector Control output: Normal operation signal (NOM), open-collector Control input: Pre-setting, display hold, peak value clear, tolerance judgment BANK switch, open-collector or no-voltage contact signal (with/without contact point) |
| Interface | Serial BCD: Bit serial format, open-collector Analog output: 2.5 V + counting value× voltage resolution (25 mV/2.5 mV): Full-scale 0 to 5 V Digimatic input/output: Connecting to the external switch box (No.02ADF180) makes it easy to enter tolerance limits and preset values (Note: This function is not available when the gage is connected to DP-1VR, digimatic mini-processor) Can be connected to Digimatic peripherals that have data (poll) button Number of tolerance steps can be expanded by assembling EB-D counters |
| Rating | Power supply voltage: 12 to 24 V DC Power consumption: 6 W or less (50 mA maximum) Ensure at least 1 A is available per unit |
| Operating Temperature Range | 0 to 40°C (RH 20 to 80%, no condensation)/10 to 50°C (RH 20 to 80%, no condensation) |
| Applicable Input | Digimatic code (SPC) |
| Dimensions | 3.78 x 1.89 x 6.14" (96 × 48 × 156 mm) |
| Weight | 0.88 lbs (400 g) |
