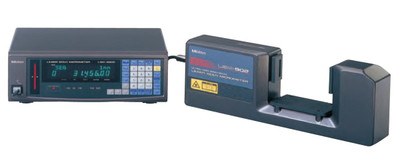

Resistant to rough measurement environments, this micrometer has an IP64-rating and can operate in high-speed production lines.
Features
Ultra-high scanning rate of 3200 scans/second
The incorporation of a 16-face polygonal mirror and a high precision motor now makes scanning at 3200 scans per second possible. This formidable capability is ideal, for example, for taking measurements on high-speed production lines or vibrating workpieces.
Improved resistance to IP64-level environments
This measuring unit has been extensively developed to resist rough measurement environments. As a result, for example, it can operate at an ambient temperature of 113°F (45°C).
Applications
| Measuring | Range: 0.012 to 1.18" (0.3 to 30 mm) Region: 0.4 x 1.18" (10 x 30 mm) |
| Resolution (Selectable) | 0.000001 to 0.005" (0.00002 to 0.1 mm) |
| Repeatability | ±3.9 µin (±0.11 µm) |
| Linearity at 68° (20°C) | Entire range: ±40 µin (±1 µm) Narrow range: ±(0.6 + 0.1 ?D)µm |
| Positional Error | ±60 µin (±1.5 m) |
| Scanning Rate | 3200 scans per second |
| Laser | Wavelength: 650 nm, visible Scanning speed: 8900"/s (226 m/s) |
| Operating | Temperature: 32 to 104°F (0 to 40°C) Humidity: 35 to 85% RH (with no condensation) |
| Water and Dust Protection Grade | Conforming to IP64 |
| Acceptable Standard of Laser | IEC, FDA |
| Dimensions | 13.98 x 4.33 x 2.68" (355 x 110 x 68 mm) |
| Weight | Emission unit: 2.42 lbs (1.1 kg) Reception unit: 1.32 lbs (0.6 kg) Base: 1.1 lbs (0.5 kg) Signal cable: 1.1 lbs (0.5 kg) |
| Measuring | Range: 0.012 to 1.18" (0.3 to 30 mm) Region: 0.4 x 1.18" (10 x 30 mm) |
| Resolution (Selectable) | 0.000001 to 0.005" (0.00002 to 0.1 mm) |
| Repeatability | ±3.9 µin (±0.11 µm) |
| Linearity at 68° (20°C) | Entire range: ±40 µin (±1 µm) Narrow range: ±(0.6 + 0.1 ?D)µm |
| Positional Error | ±60 µin (±1.5 m) |
| Scanning Rate | 3200 scans per second |
| Laser | Wavelength: 650 nm, visible Scanning speed: 8900"/s (226 m/s) |
| Operating | Temperature: 32 to 104°F (0 to 40°C) Humidity: 35 to 85% RH (with no condensation) |
| Water and Dust Protection Grade | Conforming to IP64 |
| Acceptable Standard of Laser | IEC, FDA |
| Dimensions | 13.98 x 4.33 x 2.68" (355 x 110 x 68 mm) |
| Weight | Emission unit: 2.42 lbs (1.1 kg) Reception unit: 1.32 lbs (0.6 kg) Base: 1.1 lbs (0.5 kg) Signal cable: 1.1 lbs (0.5 kg) |
