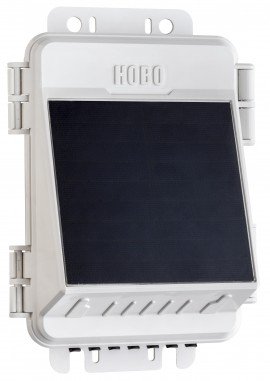

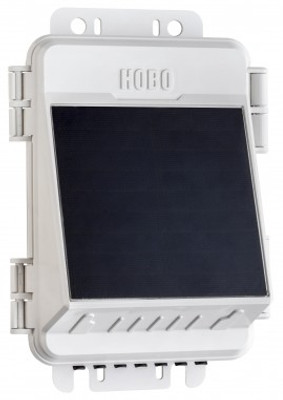

Onset HOBO RX2104 MicroRX Water Level Station with built-in solar panel

No reviews yet Write a Review
$1,006.88
SKU:
RX2104
Availability:
2 to 3 Weeks
5 customers are viewing this product

Onset HOBO RX2104 MicroRX Water Level Station with built-in solar panel

$1,006.88

Availability: 2 to 3 Weeks

Onset HOBO RX2104 Offers

The water level station is a cellular, web-enabled water level monitoring solution for stormwater, floodwater, irrigation, hydrologic, and environmental applications. Pre-programmed waterflow formulas for select weirs, flumes, and a stage-discharge table result in an easy and intuitive configuration. Features water flow and accumulated rainfall calculations, which are performed directly on the station at the time of measurement, trigger immediate notifications of critical water level conditions. The compact and durable station, together with the non-vented water level sensor, enables harsh condition deployments and reliable monitoring. The integrated solar panel, with a wide range of plug-and-play smart sensors, support flexible environmental monitoring.

Features

  • Station-side alarms for water flow and accumulated rainfall triggered at time of measurement
  • Non-vented ceramic water level sensor with a choice of four ranges
  • Interchangeable, Kevlar-reinforced water level sensor cables
  • Integrated barometric pressure sensor
  • Compact IP66/NEMA 4X enclosure
  • Built-in LCD confirms proper setup and operation
  • Integrated 1.7 W solar panel with rechargeable battery pack
  • Inputs for five plug-and-play smart sensors
  • Up to 10-minute connections rates via 4G cellular data plans
  • Cloud-based monitoring and data access through HOBOlink

Measure the flow of water in open canals

Measure the height of water to help prevent flooding

Use the water station in conjunction with a weir to regulate/alter water flow

With a compact and rugged design, the MicroRX Station provides long-term reliable performance, even in harsh conditions.

Soil Moisture

Temperature & Humidity

Rainfall

Light-PAR & Solar Radiation

Wind Speed & Direction

Leaf Wetness

Barometric Pressure

Water Level

Calculated Evapo-transpiration

  • Absolute pressure
  • 4 to 20 mA
  • AC current
  • AC voltage
  • Amp hour (Ah)
  • DC voltage
  • Kilowatt hours (kWh)
  • PowerFactor (PF)
  • Pulse input
  • Volt-Amp reactive hour
  • Volt-Amps (VA)
  • Watt hours (Wh)
  • Watts (W)

This data logger is operates in both indoor and outdoor environments including:

  • Environmental research
  • Agricultural research
  • Commercial agriculture
  • Water use tracking

Environmental research

Rugged and reliable microclimate monitoring in harsh field conditions, with access to your data from anywhere.

Agricultural research

Field condition monitoring and data collection to help save water, enhance crop quality, and increase yields.

Commercial agriculture

Critical field condition monitoring for optimal irrigation, pest control, and harvest timing decisions.

Water use tracking

Optional water level sensors (sold separately) and integrated flow calculations for automated water use tracking and alert notifications.



Onset HOBO RX2104 Specifications

Specifications

Operating Range-4 to 140°F (-20 to 60°C)
Smart Sensor Connectors5
Smart Sensor Network Cable Length328' (100 m) maximum
Smart Sensor Data ChannelsMaximum of 15 (some smart sensors use more than one data channel)
Logging Rate1 minute to 18 hours
Time Accuracy±8 seconds per month in 32 to 104°F (0 to 40°C) range ±30 seconds per month in -40 to 140°F (-40 to 60°C) range
Battery Type/Power SourceIntegrated 1.7 watt solar panel and NiMH rechargeable battery pack Optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel
Battery LifeTypical 3 to 5 years when operated in the temperature range -4 to 104°F (-20 to 40°C);operation outside this range will reduce the battery service life Maximum connection rates with built-in solar panel, in full sun: 10 minute connections year round for latitudes less than ±40°; 10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter Maximum connection rates with external 5 W or 15 W solar panels: 10 minute connections year round, in full sun; Connection rate with external solar panels may be less if deployed in partial sun Battery life without solar recharging, with hourly connections and 1 minute logging: 2 months
Memory16 MB, 1 million measurements, continuous logging
Alarm Notification LatencyLogging interval plus 2 to 4 minutes, typical
Enclosure AccessHinged door secured by two latches with eyelets for use with user-supplied padlocks
LCDLCD is visible from 32 to 122°F (0 to 50°C); the LCD may react slowly or go blank in temperatures outside this range
MaterialsOuter enclosure: Polycarbonate/PBT blend with brass inserts Interior: Polycarbonate/PBT Gasket: Silicone foam Cable channel: Santoprene™ TPE
Environmental RatingWeatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channelsystem)
Wireless RadioGSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna4G LTE
Dimensions7.85 x 5.39 x 2.95" (19.95 x 13.68 x 7.49 cm)
Weight23.9 oz (678 g)
CertificationsCE, FCC ID QIPPLS62-W, IC ID:7830A-PLS62W


What's included with the Onset HOBO RX2104
  • Station
  • Grease Packet
  • Cable Ties
  • Screws and Washers
  • Battery Pack
