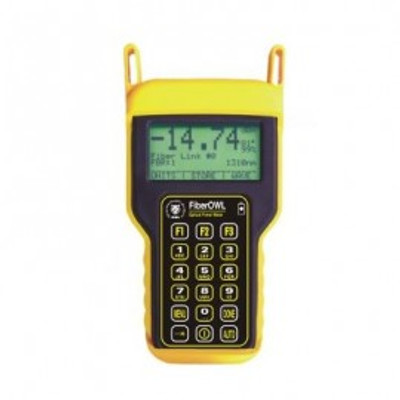

OWL F7V OffersThe OWL F7V Fiber OWL 7 series power meters are part of a fiber installers toolkit for fiber optic link certification. The F7V is Encircled Flux (EF) compliant and 10-Gig ready for testing multimode networks designed for transmission of 10 Gigabits and beyond. When used with EF mode controller cables, Fiber OWL 7 certifiers ensure high-speed multimode networks are compliant with standards-based EF requirements. OWL F7V VFL optical power meters are NIST Traceable and produced in the heartland of the US.
The OWL F7V features an InGaAs detector and is ready for multimode and single mode. The wavelengths this power meter uses are 850, 980, 1300, 1310, 1490, 1550, and 1625 nm with a measurement range of +5 to -70 dBm. The accuracy of these power meters is +/- 0.15 dB with a display resolution of 0.01 dB. The F7X uses a universal connector for 2.5 mm and 1.25 mm connection types.
OWLVIEW Certification Software. Data from your power meter can be downloaded to the software where the data can be selectively viewed, printed, and saved for later use. OWLView has a Tri-Report style comprehensive analysis that shows critical data from link certification, OTDR traces and events, and endface analysis all one one sheet. This quickly shows clients the overall health of their fiber network and ensures that it is installed and tested to official industry standards. Whats.
Features
| Detector Type | InGaAs |
| Wavelengths | 850, 980, 1300, 1310, 1490, 1550, 1625 nm |
| Measurement Range | +5 to -70 dBm |
| Accuracy (Uncertainty) | ± 0.15 dB |
| Display Resolution | 0.01 dB |
| Measurement Units | dBm, dB |
| Connector Type | Universal (2.5 mm and 1.25 mm) |
| Data Storage Points | < 10,000 |
| Download Port Connection | USB |
| Software | OWLView |
| Modes of Operation | PAIR, BIDI, CERT, LOSS, OPM |
| Length Measurement Range | Up to 25 km |
| Length Measurement Accuracy | ± 8.2' (2.5 m) |
| VFL Output Wavelength | 650 nm Laser |
| VFL Output Power | 1 mW |
| VFL Operating Modes | CW, Modulated |
| Display Type | 2.8" (7.11 cm) Color LCD |
| Battery Type | Lithium Polymer |
| Battery Life | Up To 50 Hours |
| Auto-Shutdown | Yes |
| Operating Temperature | 14 to 131°F (-10 to 55°C) |
| Storage Temperature | -22 to 158°F (-10 to 55°C) |
| Dimensions | 2.87 x 4.42 x 1.25" (7.29 x 11.23 x 3.18 cm) |
| Weight | 10 ounces (284 g) |
