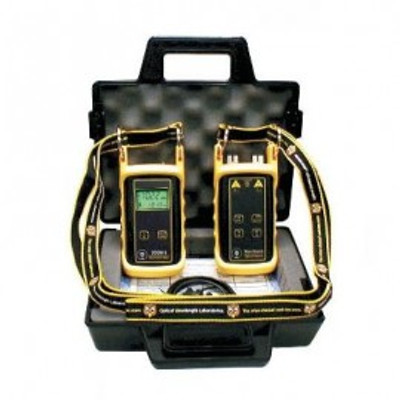

OWL KIT-WT-WSMDVsc OffersOWL KIT-WT-WSMDVsc Wavetester Fiber Optic Kit MM with Integrated VFL includes the WaveTester Power Meter and the WaveSource 850/1300 Light Source.
Features
| Optical Power Meter | |
| Detector Type | InGaAs |
| NIST Traceable Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm |
| Measurement Range | +5 to -60 dBm |
| Accuracy | ± 0.15 dB |
| Resolution | 0.01 dB |
| Connector Type | 2.5 mm Universal |
| Data Storage Points | Up to 200 |
| Download Data Points | OWL Reporter Software |
| Power Units Displayed | dBm, dB, μW |
| Battery Life | 250 hrs. (9 V alkaline) |
| Battery Capacity Display | Yes |
| Backlight | Yes |
| NIST Traceable | Yes |
| Auto-shutdown | Yes |
| Operating Temperature | 14 to 131°F (-132 to 131°F (0 to 55°C)) |
| Storage Temperature | -22 to 267°F (-132 to 131°F (0 to 55°C)) |
| Dimensions | 2.75 x 4.94 x 1.28" (6.99 x 12.55 x 3.25 cm) |
| Weight | 154 g (5.43 oz) |
| Optic Light Source | |
| Launch Method (Multimode) | LED |
| Connector | SC |
| Center Wavelength (850 nm) | 850 ± 30 nm/-10 nm |
| Center Wavelength (1300 nm) | 1300 ± 50nm |
| Spectral Width (FWHM; 850 nm) | 50 nm |
| Spectral Width (FWHM; 1300 nm) | 180 nm |
| Output Power | -20.0 dBm |
| Initial Accuracy | 0.1 dB |
| Output Modes | Continuous Wave Modulated |
| Battery Life | Up to 30 hours |
| Battery Type | 9 V Alkaline |
| Battery Capacity Display | Yes |
| Operating Temperature | 68 to 158°F (20 to 70°C) |
| Storage Temperature | 104 to 185°F (40 to 85°C) |
| Dimensions | 2.75 x 4.94 x 1.28" (6.99 x 12.55 x 3.25 cm) |
| Weight | 5.43 oz (154 g) |
