Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v

No reviews yet Write a Review
$1,801.98
SKU:
170611
UPC:
85462001499
Condition:
New
5 customers are viewing this product

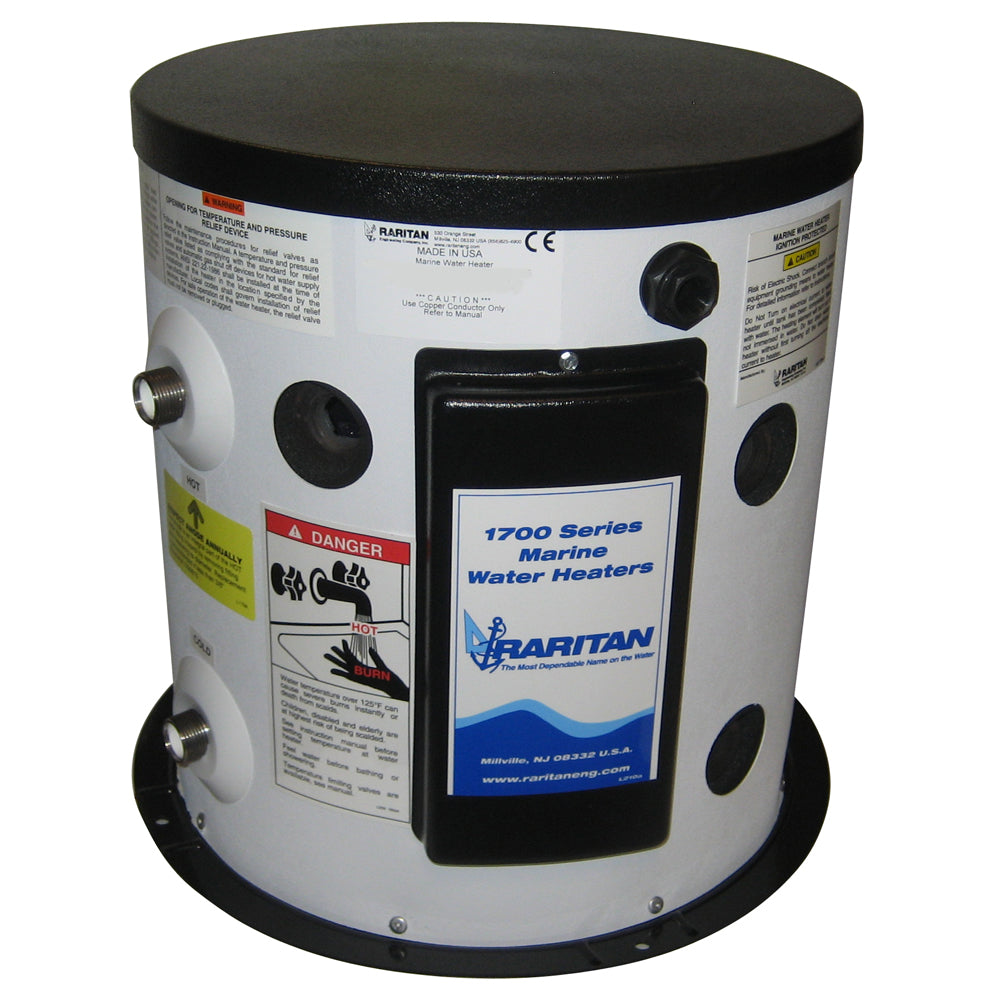

Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v

$1,801.98

Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v Product Description

1700 Series Water Heater

120v
6 Gallon
With Engine Heat Exchanger

The "1700 Series" water heater provides hot water for galley and shower. Dense foam insulation provides better and longer heat retention than traditional fiberglass. The tank itself is protected by a 75 PSI T& P ( temperature and pressure) relief valve. The cylindrical design of the tank enables it to withstand more pressure than a cube shaped tank.

Heat exchanger models can be connected to the engine cooling system. This provides the added convenience of hot water when underway or generator power is not available. The innovative heat exchanger is over seven feet in length and is evenly coiled throughout the interior of the tank, providing hot water rapidly and efficiently.

Raritan's water heaters use an ignition protected thermostat. Although it is factory set to 120°F, it is adjustable from 110° to 160°F and has a safety shut down limit of 190°F. All models and sizes have the plumbing connections on the same side to simplify installation. Hot and cold water connections are 3/4" male NPT (National Pipe Thread). Heat exchanger connections are 3/4" female NPT.

Benefits:
  • Simple installation - retrofits to most on-board pressure systems
  • Proven long-life design
  • Withstands the rigors of the marine environment
  • Glass-lined steel tank is more durable than stainless steel
  • Attractive polymer jacket resists corrosion from dampness
  • Ignition-protected, adjustable thermostat
  • Round tanks are designed to withstand more pressure than square tanks
  • Glass-lined steel tank for long life and high efficiency
  • Environmentally friendly CFC-free foam insulation
  • Replaceable magnesium anode to protect tank and neutralize acids in the water
  • The tank is covered by a five-year Limited Warranty
  • Each unit is assembled by hand, individually tested and backed by Raritan's two-year Limited Warranty and legendary technical support team



The 1700 series water heaters provide hot water for the kitchen and shower rooms. Compared with traditional glass fiber, dense foam insulation material has better insulation time and longer insulation time. The fuel tank itself is protected by a 75 PSI T&P (temperature and pressure) safety valve. The cylindrical design of the storage tank makes it bear more pressure than the square storage tank. The heat exchanger model can be connected to the engine cooling system. This provides more convenience for hot water when driving or when there is no generator power. The innovative heat exchanger has a length of more than 7 feet and is evenly coiled inside the water tank to provide hot water quickly and efficiently. Raritans water heaters use anti-ignition thermostats. Although the factory setting is 120 F, its adjustable range is 110 F to 160 F, and the safety shutdown limit is 190 F. All types and sizes of pipes are on the same side to simplify installation. Hot and cold water connection is 3 4 inch male thread NPT (National Pipe Thread).

Raritan Magnesium Anode f/6-Gallon Water Heater
Raritan Heating Element w/Gasket - Screw-In Type - 120v
Raritan Pressure Relief Valve - 75 PSI
Raritan Water Heater Thermostat Assembly


Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v

Raritan?
How to describe Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v?
What is the warranty policy for Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v?
What is the working voltage of the product?
What is the working voltage of the product?
What is the material of Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v?
What is the product amperage?
What is the capacity of product?
What is the capacity of product (gallons)?
What is the dimensions of the product?

Raritan?

Raritan manufactures equipment for pleasure boats throughout the world. Products include marine toilets, waste treatment systems, icemakers and water heaters. Committed to the environment and preserving sea life, Raritan designs products to help maintain an environmental balance and ensure the quality of marine waters.

How to describe Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v?

The 1700 series water heaters provide hot water for the kitchen and shower rooms. Compared with traditional glass fiber, dense foam insulation material has better insulation time and longer insulation time. The fuel tank itself is protected by a 75 PSI T&P (temperature and pressure) safety valve. The cylindrical design of the storage tank makes it bear more pressure than the square storage tank. The heat exchanger model can be connected to the engine cooling system. This provides more convenience for hot water when driving or when there is no generator power. The innovative heat exchanger has a length of more than 7 feet and is evenly coiled inside the water tank to provide hot water quickly and efficiently. Raritans water heaters use anti-ignition thermostats. Although the factory setting is 120 F, its adjustable range is 110 F to 160 F, and the safety shutdown limit is 190 F. All types and sizes of pipes are on the same side to simplify installation. Hot and cold water connection is 3 4 inch male thread NPT (National Pipe Thread).

What is the warranty policy for Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v?

Five Year Limited on Tank
Two Year Limited on Entire Heater
  • Solid-foam insulation keeps water hot longer than traditional fiberglass insulation
  • Specifically designed for the marine environment
  • Glass-lined tank is more durable than stainless steel
  • Polymer jacket resists corrosion from dampness
  • Ignition-protected, adjustable thermostat
  • Environmentally-friendly, CFC-free foam insulation
  • Replaceable magnesium anode protects tank and neutralizes acids in the water
  • Available in 6, 12 and 20 gallon models—with or without engine heat exchangers
  • Five year warranty on tank; Two year warranty on entire heater
  • Choice of 120V AC or 240V AC

What is the working voltage of the product?

120 Volts

What is the working voltage of the product?

120v

What is the material of Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v?

Glass Lined Steel

What is the product amperage?

10 Amps at 120 Volts

What is the capacity of product?

6 Gallons

What is the capacity of product (gallons)?

6

What is the dimensions of the product?

14 1/2" Diameter x 16 1/4" Height


Save $670 when you buy the Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v for only $1059 from NVN Marine! Same day shipping before 3pm.

Raritan 6-Gallon Hot Water Heater w/Heat Exchanger - 120v Technical Specifications

Type:

Marine Plumbing & Ventilation | Hot Water Heaters

Vendor:

Raritan

Weight:

33.0 lb

Gallons:

6

Heat Exchanger:

Yes

Volts:

120v

Product Manual:

Download PDF

Product Brochure:

Download PDF

Product Installation:

Download PDF
