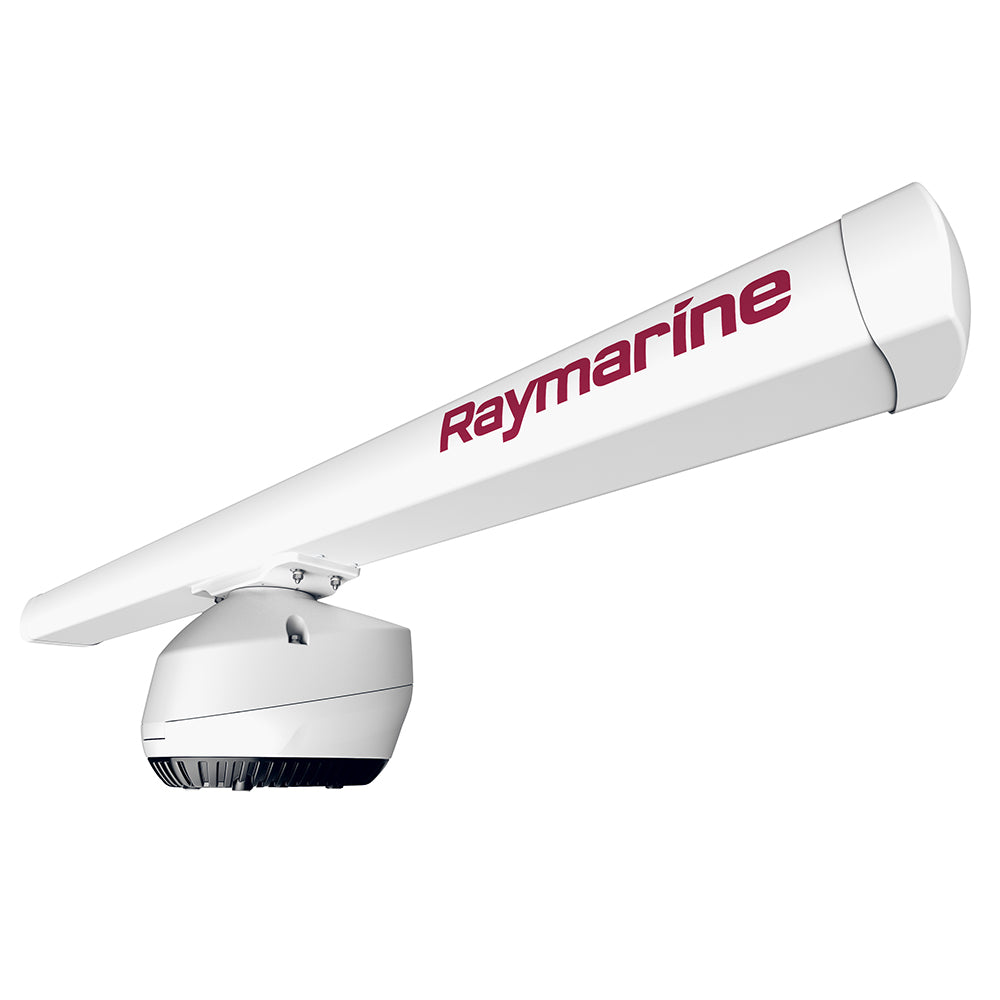

Raymarine 4kW Magnum w/6' Array & 15M RayNet Radar Cable

Type:	Marine Navigation & Instruments \| Radars
Vendor:	Raymarine
Weight:	92.2 lb
Array Size (Inches):	72"
Power - Output:	4kW
Product Installation:	Download PDF

✋

Section 01

Order Cancellation Rights

You are entitled to cancel your Order within 30 days of receipt without providing a reason, subject to the processing fee structure described below.

The cancellation deadline is 30 days from the date on which you received the Goods, or on which a third party appointed by you (other than the carrier) takes possession of the delivered product.

To exercise your cancellation right, notify us with a clear written statement by:

Email: info@equiptestpro.com
Online form: equiptestpro.com/contact-us

💳

Section 02

Cancellation Processing Fees

The following fee structure applies to all cancellations. Please review carefully before requesting a cancellation.

Customer-Initiated

10%

A processing fee of 10% of the total order value will be withheld from your refund to cover payment processing, handling, and administrative costs.

Company-Initiated (Item Unavailable)

$0

If we cancel your order due to item unavailability, no processing fee will be withheld. You receive a full refund of the amount paid.

Refunds will be issued using the same payment method as the original purchase. No additional fees beyond those described above will be applied.

✅

Section 03

Conditions for Returns

To be eligible for a return, all of the following conditions must be met:

The Goods were purchased within the last 30 days
The Goods are in their original, undamaged packaging
The Goods are unused and unaltered from the condition received
A valid receipt or proof of purchase accompanies the return

Sale Items: Only regular-priced Goods are eligible for a refund. Items purchased on sale or at a discounted price cannot be refunded. This exclusion may not apply where prohibited by applicable law.

We reserve the right to refuse returns of any merchandise that does not meet the above conditions, at our sole discretion.

🚫

Section 04

Non-Returnable Goods

The following items are not eligible for return under any circumstances:

Goods made to your specifications or clearly personalized
Goods that by their nature are not suitable for return, deteriorate rapidly, or where the expiry date has passed
Goods not suitable for return due to health protection or hygiene reasons that have been unsealed after delivery
Goods that, after delivery, have become inseparably mixed with other items by their nature
Goods purchased on sale or at a promotional discount

📬

Section 05

How to Return Goods

You are responsible for the cost and risk of returning Goods to us. Before sending any items, please contact us at info@equiptestpro.com to obtain the return shipping address.

Important: We strongly recommend using an insured and trackable mail service. We cannot be held responsible for Goods damaged or lost during return shipment, and we are unable to issue a refund without confirmed receipt of the returned Goods or verifiable proof of delivery.

⏱

Section 06

Refund Timeline

You should expect to receive your refund within four (4) weeks of delivering your return package to the shipper. In many cases, refunds are processed sooner. The timeline breaks down as follows:

1

Transit to Us 5 to 10 business days for us to receive your return from the shipper.

2

Return Processing 3 to 5 business days to inspect and process your return once received.

3

Bank Processing 5 to 10 business days for your bank to post the refund to your account.

We will process refunds no later than 14 days from the day we receive the returned Goods, using the same payment method as your original purchase.

🎁

Section 07

Gift Returns

If the Goods were marked as a gift at the time of purchase and shipped directly to you, a gift credit equal to the return value (less any applicable processing fee) will be issued. Once the returned product is received and inspected, a gift certificate will be mailed to you.

If the Goods were not marked as a gift at purchase, or if the gift giver had the order shipped to themselves first, the refund will be issued to the original purchaser.

Antenna size	6' 4"
Max Range Scale	72nm
Antenna Specifications
Beam Width Horizontal (Nominal)	1.15°
Effective Horizontal Beam Width (After Antenna Boost Beam Reduction)	Less than 1°
Beam Width Vertical -3dB	25°
Antenna Side Lobes (Inside 10°)	< -21dB
Antenna Side Lobes (Outside 10°)	< -30dB
Rotation Rate	24 rpm / 48 rpm (Automatic high-speed mode improves tracking of fast moving contacts at ranges of 3 miles or less. MFD dependent.)
Receiver Bandwidth	Matched digital filter for each pulse length
Pulse Length/PRF Settings	8
Number of Displayed Video Levels	256 (8-bit)
Power specifications
Voltage	10.8 to 32 volts DC (using supplied VCM100) for 12V, 24V DC Systems
Power Consumption (Typical)	<70W (Transmit) <30W (Standby) <1.2W (Sleep)
Targets
Maximum Automatic and Manual MARPA Targets (with Heading Sensor)	25
Real-Time Heading Refresh (with Heading Sensor)	Yes
True Trails (with Heading Sensor)	Yes
Compatibility
Axiom / Axiom Pro (LH3.4 or later)	Compatible with full feature set
eS Series / gS Series (LH3.3 or later)	Compatible with limited feature set. No automatic MARPA
a/c/e/eS/gS Series (LH2 v19.03)	Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA
E-Wide (v2.65)	Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA
C-Wide (v2.35)	Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode
G-Series (v4.66)	Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA
E-Classic (v5.69)	Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode
