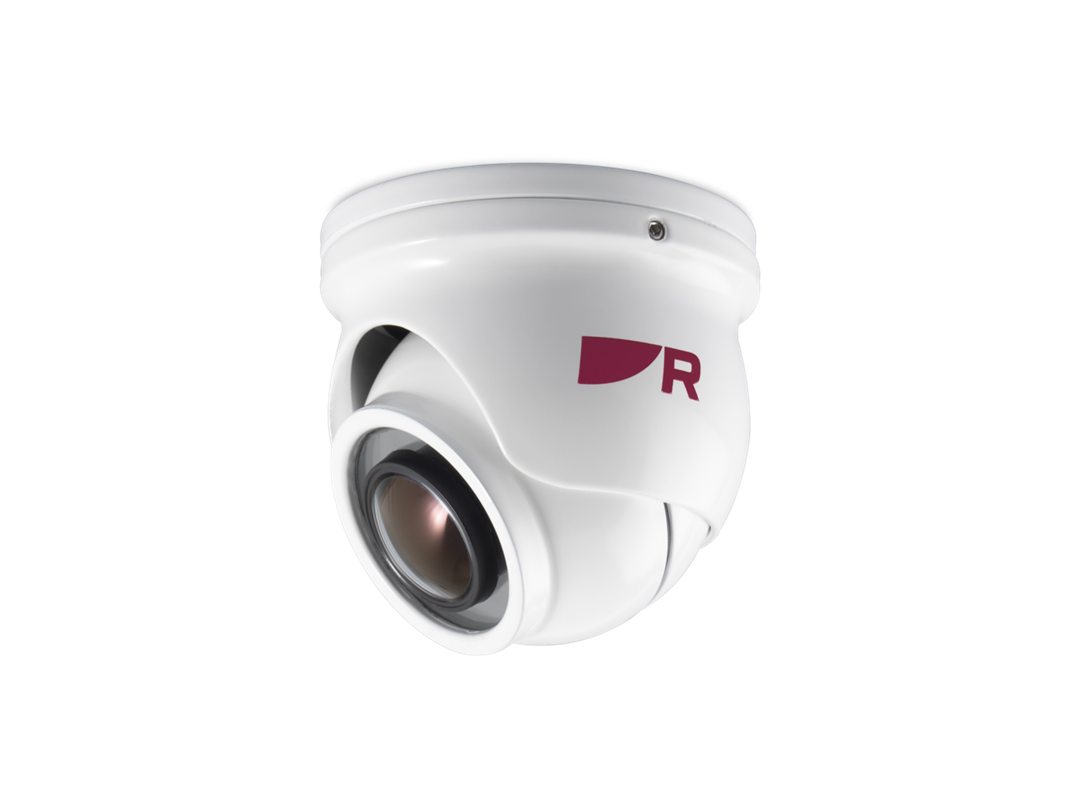

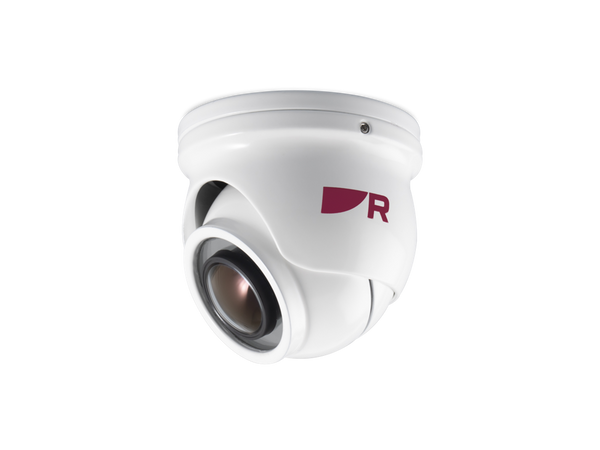

Raymarine CAM330 Mini Day & Night Eyeball IP Camera

No reviews yet Write a Review
$546.32
SKU:
E70660
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Raymarine CAM330 Mini Day & Night Eyeball IP Camera

$546.32

Raymarine CAM330 Mini Day & Night Eyeball IP Camera Product Description

The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints and chart objects on the Axiom video display.

Raymarine E70660 Attributes

  • Type: Dome
  • Detection Range: 33 Feet
  • Horizontal Viewing Angle: 160 Degree
  • Vertical Viewing Angle: 130 Degree
  • Weather Resistant: Waterproof
  • With Night Vision: Yes
  • With Microphone: No
  • With Extension Cable: Yes
  • With Mounting Hardware: Yes

Raymarine E70660 Features & Benefits

  • Crystal Clear HD Video Imagery
  • View Up To 4 CAM300 Video Streams Simultaneously On A Single Axiom Display
  • 3MP CMOS Sensor Delivers Up To 1080p Resolution
  • Built-In Infrared Emitters For Excellent Near-Field Low-Light Visibility Up To 33 Feet
  • Ultra-Compact Size Blends Seamlessly With Your Vessel
  • Image Flip And Invert Functions For Ball-Up Or Ball-Down Installation And Reverse Video System Applications
  • Flexible Mounting Solutions As The Entire Camera Ball Rotates In The Housing
  • Easy To Install With Either A Direct 12 Volt Connection Or Single Cable Power Over Ethernet
  • Rugged IP66 Enclosure For Below And Above-Deck Marine Installations
  • Limited 2 Year Warranty

CAM330 Mini Day & Night Eyeball IP Camera

The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints, and chart objects on the Axiom video display.

Features:

  • Crystal clear HD video imagery using a 3MP CMOS sensor
  • View up to 4 CAM300 video streams simultaneously on single

    Axiom display

  • Built-in infrared emitters for excellent near-field low-light visibility up to 33 ft (10 meters)
  • Image flip and invert functions for ball-up/ball-down installation and reverse video.
  • Flexible mounting solutions as the entire camera ball rotates in the housing
  • Easy to install with either a direct 12-volt connection or single cable Power over Ethernet (POE)
  • Rugged IP66 enclosure for below and above-deck marine installations
  • Navigate smarter with ClearCruise™ augmented reality and the optional AR200 sensor




Raymarine CAM330 Mini Day & Night Eyeball IP Camera

Raymarine
How to describe Raymarine CAM330 Mini Day & Night Eyeball IP Camera
What is the type of the product

Raymarine

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

How to describe Raymarine CAM330 Mini Day & Night Eyeball IP Camera

"

Raymarine CAM300 Video Camera

Model: E70660
  • View up to 4 CAM300 video streams simultaneously on single Axiom display
  • 3MP CMOS sensor delivers up to 1080p resolution
  • Ultra-compact size blends seamlessly with your vessel
  • Built-in infrared emitters for excellent near-field low light visibility up to 33 ft (10 meters)
  • Image flip and invert functions for ball-up/ball-down installation and reverse video system applications
  • Easy to install with either direct 12-volt connection or single cable Power over Ethernet (POE
  • Rugged IP66 enclosure for below and above deck marine installations

The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise augmented reality to overlay AIS targets, waypoints and chart objects on the Axiom video display.

Specifications
POWER
Nominal supply voltage12 V DC
Operating voltage range10.8 V DC to 15.6 V DC
Power consumption1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON)
Power connectionC power cable or POE (Power over Ethernet)
ENVIRONMENTAL SPECIFICATION
Operating temperature-30C to +60C (-22°F to 140 °F)
Waterproof ratingIP66
PHYSICAL SPECIFICATION
DimensionsBase diameter: 59.5 mm (2.34 in), Height: 52.9 mm (2.08 in)
Weight0.420 kg (0.926 lbs)
VIDEO
Video Processing H.264 Codec / Dual Stream
Illumination6 x 850nm Infrared - 10 meter range
Frame Rate25 fps
Resolutions2304 x 1296 (3MP) Max
ONVIF ConformanceProfile S
Sensor / DSP1/4" CMOS Sensor
Field of View1.8mm Standard (160° HFOV x 130° VFOV)
COMPATIBILITY
Axiom display compatibiltyUnits running LightHouse 4.2 or later

What's in the Box:
  • CAM300 — includes an approximate 670 mm (2.2 ft) fitted cable, featuring an RJ45 (male) and power connector
  • Mounting screws (3 x)
  • Documentation
  • Hex wrench (Allen key)
  • Waterproof gasket
  • "

What is the type of the product

Dome


Save $112 when you buy the Raymarine CAM330 Mini Day & Night Eyeball IP Camera for only $487 from NVN Marine! Same day shipping before 3pm.

Raymarine CAM330 Mini Day & Night Eyeball IP Camera Technical Specifications
