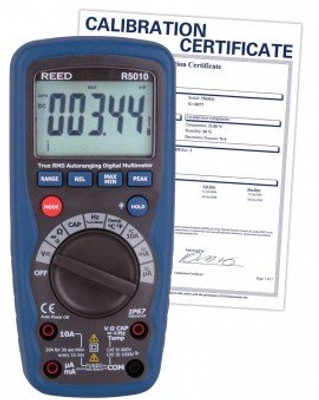

This True RMS autoranging multimeter is IP67 rated, has a 40,000 count display for precise readings and is capable of measuring AC/DC voltage and current, frequency, resistance, capacitance and temperature. This DMM also includes diode and continuity tests and features 4-20 mA loop measurement and a digital analog bargraph.
Features
| AC/DC Voltage | |
| Range | AC: 400mV, 4, 40, 400, 1000V DC: 400mV, 4, 40, 400, 1000V |
| Accuracy | AC: 400mV ±(1.0% rdg. + 5 dgt.) 4, 40, 400, 1000V ±(1.0% rdg. + 3 dgt.) DC: 400mV/4,40,400V ±(0.06% rdg. + 2 dgt.) 1000V ±(0.1% rdg. + 5 dgt.) |
| Resolution | AC: 0.1mV, 0.001, 0.01, 1V DC: 0.01mV, 0.0001, 0.01, 0.1V |
| AC/DC Current | |
| Range | 400, 4000µA, 40, 400mA, 10A |
| Accuracy | AC: ±(1.5% rdg. + 3 dgt.) DC: ±(1.0% rdg. + 3 dgt.) |
| Resolution | AC: 0.1, 1µA, 0.01,0.1mA, 0.01A DC: 0.01, 0.1µA, 0.001,0.01mA, 0.001A |
| Resistance | |
| Range | 400?, 4, 40, 400k?, 4, 40M? |
| Accuracy | 400?: ±(0.3% rdg. + 9 dgt.) 4, 40, 400k?, 4M?: ±(0.3% rdg. + 4 dgt.) 40M?: ±(2.0% rdg. + 10 dgt.) |
| Resolution | 0.01?, 0.0001, 0.001, 0.01k?, 0.001M? |
| Capacitance | |
| Range | 40, 400nF, 4, 40, 400, 4000µF, 40mF |
| Accuracy | 40, 400nF: ±(3.5% rdg. + 40 dgt.) 4, 40, 400µF: ±(3.5% rdg. + 10 dgt.) 4000µF, 40mF: ±(5% rdg. + 10 dgt.) |
| Resolution | 0.001, 0.01nF, 0.0001, 0.001, 0.01, 0.1µF, 0.001mF |
| Frequency | |
| Range | 40, 400Hz, 4, 40, 400kHz, 4, 40, 100MHz |
| Accuracy | ±(0.1% rdg. + 1 dgt.) |
| Resolution | 0.00, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001, 0.01MHz |
| Temperature | |
| Range | -58 to 1832°F (-50 to 1000°C) |
| Accuracy | ±(1.0% rdg. + 4.5°F) ±(1.0% rdg. + 2.5°C) |
| Resolution | 1°F, 1°C |
| 4-20mA% | |
| Range | -25 to 125% |
| Accuracy | ±(50 dgt.) |
| Resolution | 0.01% |
| General Specifications | |
| Range Selection | Autoranging/Manual |
| True RMS | Yes |
| Display | 40,000 count LCD display |
| Display Hold | Yes |
| Max/Min | Yes |
| Peak Hold | Yes |
| Relative Mode | Yes |
| Diode Test | Yes |
| Backlit Display | Yes |
| Digital Analog Bargraph | Yes |
| Continuity Check | Audible signal if resistance ?35? |
| Duty Cycle | Yes (0.1 - 99.9%) |
| Kick Stand | Yes |
| Auto Power Off | Yes (after 15 minutes) |
| Power Supply | 9V Battery |
| Low Battery Indicator | Yes |
| Fuse Protection | Yes |
| Replaceable Test Leads | Yes |
| Overvoltage Category | CAT. IV 600V, CAT. III 1000V |
| Product Certifications | CE, IP67, Drop Tested (2M) |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 7.4 x 3.2 x 2.0" (187 x 81 x 50mm) |
| Weight | 12oz (342g) |
