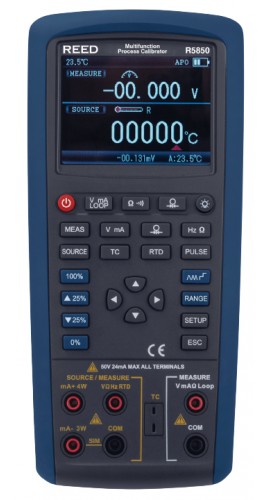

REED R5850 Multifunction Process Calibrator is available at EquipTestPro.com with fast shipping and great prices.
This multifunction process calibrator is designed to meet the highest industry standards, with its rugged and durable construction ensuring reliable performance in even the most demanding environments. The R5850 features a high-resolution LCD display, automatic step and ramp functions, a built-in 24V loop power supply, the ability to store and recall frequently used calibration setups, and offers an easy-to-use push-button interface.
Features
| Measure Function | |
| DC Voltage | Range: 50, 500mV, 30V (upper display), 50V (lower display)Resolution: 0.001, 0.01, 1mV, 0.001VAccuracy:50mV: ±(0.02% +10)500mV: ±(0.02% +5)30V (upper display): ±(0.02% +2)50V (lower display): ±(0.02% +2) |
| DC Current | Range: 20mA at 0 to 24mAResolution: 0.001mAAccuracy: ±(0.02% +2) |
| Loop Current | Range: 20mA (loop) at 0 to 24mAResolution: 0.001mAAccuracy: ±(0.02% +2) |
| Resistance | Range: 500, 5000ΩResolution: 0.01, 0.1ΩAccuracy: ±(0.05% +10) |
| Frequency | Range: 100Hz, 1, 10, 100kHzResolution: 0.01, 0.1, 1HzAccuracy: ±(0.01% +1) |
| Thermocouples | |
| Type R | Range: 32 to 3212.6°F (0 to 1767°C)Resolution: 1°F/°CAccuracy:32 to 932°F (0 to 500°C): ±3.24°F (±1.8°C)932 to 3212.6°F (500 to 1767°C): ±2.7°F (±1.5°C) |
| Type S | Range: 32 to 3212.6°F (0 to 1767°C)Resolution: 1°F/°CAccuracy:32 to 932°F (0 to 500°C): ±3.24°F (±1.8°C)932 to 3212.6°F (500 to 1767°C): ±2.7°F (±1.5°C) |
| Type B | Range: 1112 to 3308°F (600 to 1820°C)Resolution: 1°F/°CAccuracy:1112 to 1472°F (600 to 800°C): ±3.96°F (±2.2°C)1472 to 1832°F (800 to 1000°C): ±3.24°F (±1.8°C)1832 to 3308°F (1000 to 1820°C): ±2.52°F (±1.4°C) |
| Type E | Range: -58 to 1832°F (-50 to 1000°C)Resolution: 0.1°F/°CAccuracy:-58 to 32°F (-50 to 0°C): ±1.62°F (±0.9°C)32 to 1832°F (0 to 1000°C): ±2.7°F (±1.5°C) |
| Type K | Range: -148 to 2501.6°F (-100 to 1372°C)Resolution: 0.1°F/°CAccuracy:-148 to 32°F (-100 to 0°C): ±2.16°F (±1.2°C)32 to 2501.6°F (0 to 1372°C): ±1.44°F (±0.8°C) |
| Type J | Range: -76 to 2192°F (-60 to 1200°C)Resolution: 0.1°F/°CAccuracy:-76 to 32°F (-60 to 0°C): ±1.8°F (±1°C)32 to 2192°F (0 to 1200°C): ±1.26°F (±0.7°C) |
| Type T | Range: -148 to 752°F (-100 to 400°C)Resolution: 0.1°F/°CAccuracy:-148 to 32°F (-100 to 0°C): ±1.8°F (±1°C)32 to 752°F (0 to 400°C): ±1.26°F (±0.7°C) |
| Type N | Range: -328 to 2372°F (-200 to 1300°C)Resolution: 0.1°F/°CAccuracy:-328 to 32°F (-200 to 0°C): ±2.7°F (±1.5°C)32 to 2372°F (0 to 1300°C): ±1.62°F (±0.9°C) |
| Type L | Range: -328 to 1652°F (-200 to 900°C)Resolution: 0.1°F/°CAccuracy:-328 to 32°F (-200 to 0°C): ±1.53°F (±0.85°C)32 to 1652°F (0 to 900°C): ±1.26°F (±0.7°C) |
| Type U | Range: -328 to 752°F (-200 to 400°C)Resolution: 0.1°F/°CAccuracy:-328 to 32°F (-200 to 0°C): ±1.98°F (±1.1°C)32 to 752°F (0 to 400°C): ±1.35°F (±0.75°C) |
| Type XK | Range: -328 to 1472°F (-200 to 800°C)Resolution: 0.1°F/°CAccuracy:-328 to -148°F (-200 to -100°C): ±0.9°F (±0.5°C)-148 to 1472°F (-100 to 800°C): ±1.08°F (±0.6°C) |
| Type BP | Range: 32 to 4532°F (0 to 2500°C)Resolution: 0.1°F/°CAccuracy:32 to 1472°F (0 to 800°C): ±2.16°F (±1.2°C)1472 to 4532°F (800 to 2500°C): ±4.5°F (±2.5°C) |
| RTDs | |
| Pt100 (2-wire/3-wire) | Range: -328 to 1562°F (-200 to 850°C)Resolution: 0.1°F/°CAccuracy: ±0.72°F (±0.4°C) |
| Pt100 (4-wire) | Range: -328 to 1562°F (-200 to 850°C)Resolution: 0.1°F/°CAccuracy: ±0.54°F (±0.3°C) |
| Pt200 (2-wire/3-wire) | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy:-328 to 482°F (-200 to 250°C): ±0.54°F (±0.3°C)482 to 1166°F (250 to 630°C): ±2.88°F (±1.6°C) |
| Pt200 (4-wire) | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy:-328 to 482°F (-200 to 250°C): ±0.36°F (±0.2°C)482 to 1166°F (250 to 630°C): ±1.44°F (±0.8°C) |
| Pt500 (2-wire/3-wire) | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy:-328 to 932°F (-200 to 500°C): ±1.08°F (±0.6°C)932 to 1166°F (500 to 630°C): ±1.62°F (±0.9°C) |
| Pt500 (4-wire) | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy:-328 to 932°F (-200 to 500°C): ±0.54°F (±0.3°C)932 to 1166°F (500 to 630°C): ±0.72°F (±0.4°C) |
| Pt1000 (2-wire/3-wire) | Range: -328 to 1202°F (-200 to 650°C)Resolution: 0.1°F/°CAccuracy: ±0.54°F (±0.3°C) |
| Pt1000 (4-wire) | Range: -328 to 1202°F (-200 to 650°C)Resolution: 0.1°F/°CAccuracy: ±0.27°F (±0.15°C) |
| Cu10 | Range: -148 to 500°F (-100 to 260°C)Resolution: 0.1°F/°CAccuracy: ±3.24°F (±1.8°C) |
| Cu50 (2-wire/3-wire) | Range: -58 to 302°F (-50 to 150°C)Resolution: 0.1°F/°CAccuracy: ±1.44°F (±0.8°C) |
| Cu50 (4-wire) | Range: -58 to 302°F (-50 to 150°C)Resolution: 0.1°F/°CAccuracy: ±0.9°F (±0.5°C) |
| Cu100 (2-wire/3-wire) | Range: -58 to 302°F (-50 to 150°C)Resolution: 0.1°F/°CAccuracy: ±0.72°F (±0.4°C) |
| Cu100 (4-wire) | Range: -58 to 302°F (-50 to 150°C)Resolution: 0.1°F/°CAccuracy: ±0.45°F (±0.25°C) |
| Pt100-392 (2-wire/3-wire) | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy: ±0.9°F (±0.5°C) |
| Pt100-392 (4-wire) | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy: ±0.54°F (±0.3°C) |
| Pt100-JIS (2-wire/3-wire) | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy: ±0.9°F (±0.5°C) |
| Pt100-JIS (4-wire) | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy: ±0.54°F (±0.3°C) |
| Ni120 (2-wire/3-wire) | Range: -112 to 500°F (-80 to 260°C)Resolution: 0.1°F/°CAccuracy: ±0.54°F (±0.3°C) |
| Ni120 (4-wire) | Range: -112 to 500°F (-80 to 260°C)Resolution: 0.1°F/°CAccuracy: ±0.36°F (±0.2°C) |
| Source Function | |
| DC Voltage | Range: 100mV, 1, 10VResolution: 0.001, 0.01mV, 0.0001VAccuracy: ±(0.02% +10) |
| DC Current | Range:20mA at 0 to 24mA20mA (SIM) at 0 to 24mAResolution: 0.001mAAccuracy: ±(0.02% +2) |
| Resistance | Range: 400, 4000Ω, 40kΩResolution: 0.01, 0.1, 1ΩAccuracy:±(0.02% +8)±(0.05% +10)±(0.1% +40) |
| Frequency | Range: 200, 2000Hz, 20, 100kHzResolution: 0.01, 0.1, 1, 10HzAccuracy: ±(0.01% +1) (±3 dgt.), 100kHz: ±5 dgt. |
| Pulse | Range: 100Hz, 1, 10kHzResolution: 1 cycAccuracy: ±2 dgt. |
| Switch Quantity | Range: 100Hz, 1, 10, 100kHzResolution: 0.01, 0.1, 1, 10HzAccuracy: ±2 dgt. |
| Thermocouples | |
| Type R | Range: 32 to 3212.6°F (0 to 1767°C)Resolution: 1°F/°CAccuracy:32 to 212°F (0 to 100°C): ±2.7°F (±1.5°C)212 to 3212.6°F (100 to 1767°C): ±2.16°F (±1.2°C) |
| Type S | Range: 32 to 3212.6°F (0 to 1767°C)Resolution: 1°F/°CAccuracy:32 to 212°F (0 to 100°C): ±2.7°F (±1.5°C)212 to 3212.6°F (100 to 1767°C): ±2.16°F (±1.2°C) |
| Type B | Range: 1112 to 3308°F (600 to 1820°C)Resolution: 1°F/°CAccuracy:1112 to 1472°F (600 to 800°C): ±2.7°F (±1.5°C)1472 to 3308°F (800 to 1820°C): ±1.98°F (±1.1°C) |
| Type E | Range: -328 to 1832°F (-200 to 1000°C)Resolution: 0.1°F/°CAccuracy:-328 to -148°F (-200 to -100°C): ±1.08°F (±0.6°C)-148 to 1112°F (-100 to 600°C): ±0.9°F (±0.5°C)1112 to 1832°F (600 to 1000°C): ±0.72°F (±0.4°C) |
| Type K | Range: -328 to 2501.6°F (-200 to 1372°C)Resolution: 0.1°F/°CAccuracy:-328 to -148°F (-200 to -100°C): ±1.08°F (±0.6°C)-148 to 752°F (-100 to 400°C): ±0.9°F (±0.5°C)752 to 2192°F (400 to 1200°C): ±1.26°F (±0.7°C)2192 to 2501.6°F (1200 to 1372°C): ±1.62°F (±0.9°C) |
| Type J | Range: -328 to 2192°F (-200 to 1200°C)Resolution: 0.1°F/°CAccuracy:-200 to -148°F (-200 to -100°C): ±1.08°F (±0.6°C)-148 to 1472°F (-100 to 800°C): ±0.9°F (±0.5°C)1472 to 2192°F (800 to 1200°C): ±1.26°F (±0.7°C) |
| Type T | Range: -418 to 752°F (-250 to 400°C)Resolution: 0.1°F/°CAccuracy: ±1.08°F (±0.6°C) |
| Type N | Range: -328 to 2372°F (-200 to 1300°C)Resolution: 0.1°F/°CAccuracy:-328 to -148°F (-200 to -100°C): ±1.8°F (±1°C)-148 to 1652°F (-100 to 900°C): ±1.26°F (±0.7°C)1652 to 2372°F (900 to 1300°C): ±1.44°F (±0.8°C) |
| Type L | Range: -328 to 1652°F (-200 to 900°C)Resolution: 0.1°F/°CAccuracy:-328 to 32°F (-200 to 0°C): ±1.53°F (±0.85°C)32 to 1652°F (0 to 900°C): ±1.26°F (±0.7°C) |
| Type U | Range: -328 to 752°F (-200 to 400°C)Resolution: 0.1°F/°CAccuracy:-328 to 32°F (-200 to 0°C): ±1.98°F (±1.1°C)32 to 752°F (0 to 400°C): ±1.35°F (±0.75°C) |
| Type XK | Range: -328 to 1472°F (-200 to 800°C)Resolution: 0.1°F/°CAccuracy:-328 to -148°F (-200 to -100°C): ±0.9°F (±0.5°C)-148 to 1472°F (-100 to 800°C): ±1.08°F (±0.6°C) |
| Type BP | Range: 32 to 4532°F (0 to 2500°C)Resolution: 0.1°F/°CAccuracy:32 to 1472°F (0 to 800°C): ±2.16°F (±1.2°C)1472 to 4532°F (800 to 2500°C): ±4.5°F (±2.5°C) |
| RTDs | |
| Pt100-385 | Range: -328 to 1472°F (-200 to 800°C)Resolution: 0.1°F/°CAccuracy: ±0.6°F (±0.33°C) |
| Pt100-392 | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy: ±0.54°F (±0.3°C) |
| Pt200-385 | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy:-328 to 482°F (-200 to 250°C): ±0.36°F (±0.2°C)482 to 1166°F (250 to 630°C): ±1.44°F (±0.8°C) |
| Pt100-JIS | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy: ±0.54°F (±0.3°C) |
| Pt500-385 | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy:-328 to 932°F (-200 to 500°C): ±0.54°F (±0.3°C)932 to 1166°F (500 to 630°C): ±0.72°F (±0.4°C) |
| Pt1000-385 | Range: -328 to 1166°F (-200 to 630°C)Resolution: 0.1°F/°CAccuracy: ±0.36°F (±0.2°C) |
| Cu10 | Range: -148 to 500°F (-100 to 260°C)Resolution: 0.1°F/°CAccuracy: ±3.24°F (±1.8°C) |
| Cu50 | Range: -58 to 302°F (-50 to 150°C)Resolution: 0.1°F/°CAccuracy: ±0.9°F (±0.5°C) |
| Cu100 | Range: -58 to 302°F (-50 to 150°C)Resolution: 0.1°F/°CAccuracy: ±0.45°F (±0.25°C) |
| Ni120 | Range: -112 to 500°F (-80 to 260°C)Resolution: 0.1°F/°CAccuracy: ±0.36°F (±0.2°C) |
| Function Specifications | |
| Ramp Functions | Source functions: Voltage, Current, Resistance, Frequency, TemperatureRamps: Slow ramp, fast ramp, 25% step-ramp |
| Loop Power Function | Voltage: 24VAccuracy: 10%Maximum current: 22mA, short circuit protected |
| Step Functions | Source functions: Voltage, Current, Resistance, Frequency, TemperatureSteps: 25% of range, 100% of range |
| General Specifications | |
| Display | 20,000 count TFT color LCD display |
| Kick Stand | Yes |
| Power Supply | 1.2V x 6 AA rechargeable batteries |
| Auto Shut-off | Yes |
| Low Battery Indicator | Yes |
| Replaceable Test Leads | Yes |
| Product Certifications | CE, RoHS |
| Operating Temperature | 14 to 131°F (-10 to 55°C) |
| Operating Humidity Range | ≤95% |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Max. Operating Altitude | 6561' (2000m) |
| Dimensions | 7.7 x 3.7 x 2.3" (195 x 95 x 58mm) |
| Weight | 22.92oz (650g) |
Shop EquipTestPro.com for the best deals on REED R5850 Multifunction Process Calibrator. Fast shipping, competitive pricing, and expert support. Visit equiptestpro.com today!
