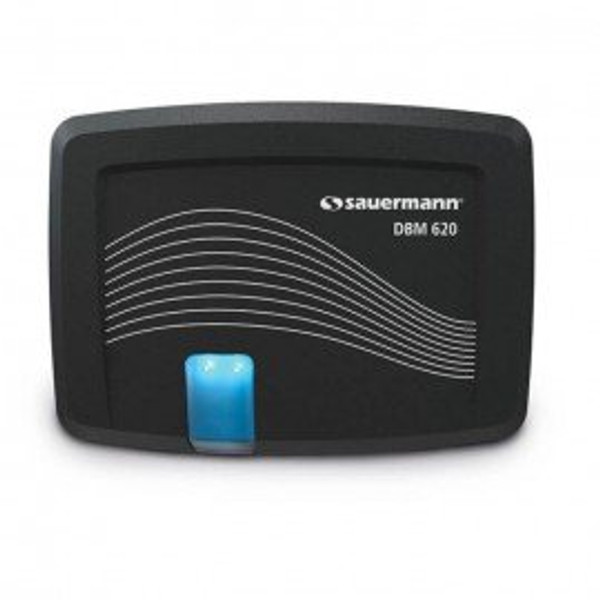

Sauermann 26449 OffersSauermann DBM 620A Micromanometer for Air Flow Hood The DBM 620A micromanometer measures airflow, air velocity, temperature, and humidity that are displayed on the SmartKap app, downloaded to an iOS or Android device, in three ways: on the screen directly, in tabular form, or in a graph format. In addition, measurements can be saved in the SmartKap app and be used to generate PDF reports. OverviewFunctions of the micromanometer housingIn air velocity and airflow:• Choose between the Pitot tube, Debimo blades, coefficient or measurement gridIn pressure:• Manual or automatic autozeroWhat's.
Features
Applications
| Airflow (calculated) | Accuracy: ±3% of the measurement Measuring range: 35 to 4250 m³/h, 10 to 1181 L/s, 21 to 2501 CFM Resolution: 1 m³/h, 1 L/s, 1 CFM |
| Air Velocity (calculated) | Accuracy: ±3% of the measurement Measuring range: 0.2 to 10 m/s, 39 to 1969 ft/min Resolution: 0.01 m/s (up to 3 m/s), 0.1 m/s (above), 1 ft/min |
| Temperature (ntc) | Accuracy: ±0.2 °C (±0.36 °F) Measuring range: -20 to 70 °C (-4 to 158 °F) Resolution: 0.01 °C, 0.01 °F |
| Relative Humidity | Accuracy: ±1.5% RH (repeatability, linearity) Measuring range: 0 to 100% RH Hysteresis: 0.8% RH at 25 °C Time drift: <0.5% RH per year (normal use) Resolution: 0.01% RH |
| Atmospheric Pressure | Accuracy: ±3 mbar Measuring range: 700 to 1100 mbar Resolution: 1 mbar |
| Pressure | Accuracy: ±0.2% of reading Measuring range: -2500 to +2500 Pa (-10 to 10 inWg) Resolution: 0.001 to 0.1 Pa, 0.001 inWg |
| Display | On smartphone or tablet(1) Integrated support for smartphone or tablet Adjustable integrated support Smartphone or tablet max. Width: 6.2’’ |
| Connectors/pneumatic | ABS connectors, Ø 0.28 x 0.16" (7 x 4 mm) |
| Maximum Operating Pressure | 500 mbar |
| Storage Capacity | Standard size of a measurement dataset report: 1 Mo |
| Housing | Shock-proof, made of ABS |
| Protection | IP40 |
| Keypad | 1 key on the housing |
| Power Supply | 4 x alkaline batteries LR6 AA 1.5 V |
| Battery Life | Up to 30 hours |
| Wireless Connection | Class 1, BLE 4.2 Range: 2.4 GHz Range up to 98' (30 m) - Depending on smartphone and tablet wireless connection radio strength Minimum required versions: Android 7.1, iOS 12.4, BLE 4.0 |
| Device Dimensions | Folded: 1.56 x 1.49 x 0.84' (475 x 455 x 255 mm) Mounted: 2 x 2 x 3.22' (610 x 610 x 980 mm) |
| Environmental Conditions Of Use | Air, non-corrosive and combustible gases Temperature: from -23 to 122 °F (5 to +50 °C), in dry air and non-condensing conditions Hygrometry: in non-condensing conditions (< 6561’ (80% RH) Maximum altitude: 2000 m) |
| Storage Temperature | From -4 to 140 °F (20 to +60 °C) |
| Auto-shut-off | Adjustable from 0 to 60 minutes |
| Weight | Base/Measuring unit/Hood/Frame: 6.4 lbs (2.9 kg) Standard DBM 14.1 lbs (620 content kit: 6.4 kg) |
| Languages | German, Spanish, Italian, Dutch, Portuguese, Hungarian, Polish, Romanian, Russian, Slovak, Finnish, Danish, Norwegian, Swedish, Chinese, Korean, Japanese |
| European Directives | 2011/65/EU RoHS II 2012/19/EU WEEE 2014/53/EU RED |
