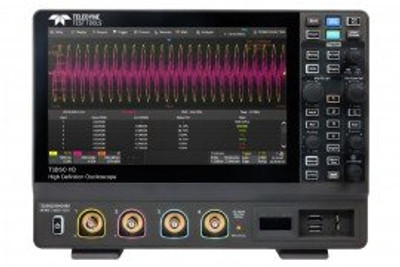

Teledyne LeCroy T3DSO2354HD OffersThe T3DSO2000HD series employs the latest technology which features a maximum waveform capture rate of up to 100,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode). It also employs an innovative digital trigger system with high sensitivity and low jitter
The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and Histogram allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, built-in 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the T3DSO2000HD.
The large 10.1" (25.6 cm) display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.
Features
Applications
| Analog channels | 4 + EXT |
| Bandwidth | 350 MHz |
| Vertical resolution | 12-bit |
| Sample rate (Maximum) | 2 GS/s (interleaving mode)1 GS/s (non-interleaving mode) |
| Memory depth (Maximum) | 200 Mpts/ch (interleaving mode)100 Mpts/ch (non-interleaving mode) |
| Waveform capture rate (Maximum) | Normal mode: 100,000 wfm/sSequence mode: 500,000 wfm/s |
| Trigger type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial |
| Serial trigger and decode | I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester (decode only) |
| Measurement | 50+ parameters, statistics, histogram, trend, and track supported |
| Math | 2 traces, 2 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor |
| Data analysis | Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, and Power Analysis |
| Digital channel (sold separately) | 16-channel: Maximum sample rate up to 500 MS/s, record length up to 50 Mpts |
| Waveform generator | Single-channel built-in waveform generator, frequency up to 25 MHz, 125 MS/s sample rate, 16 kpts waveform memory |
| I/O | USB 2.0 Host x3 USB 2.0 Device 10 M / 100 M LAN External triggerAuxiliary output (TRIG OUT, PASS/FAIL) |
| Probe | One 500 MHz passive probe supplied for each channel |
| Display | 10.1" (25.6 cm) TFT-LCD with capacitive touch screen (1024*600) |
| Power Supply | Input voltage and frequency: 100 to 240 Vrms 50/60 Hz Power consumption: 120 W maximum, 70 W typical, 4 W typical in standby mode |
| Dimensions | 0.6 x 9.2 x 5.8" (17.2 × 236 × 149 mm) including knobs and supporting legs |
| Weight | Net weight: 2.2 lbs (4.1 kg) Gross weight: 12 lbs (5.6 kg) |
