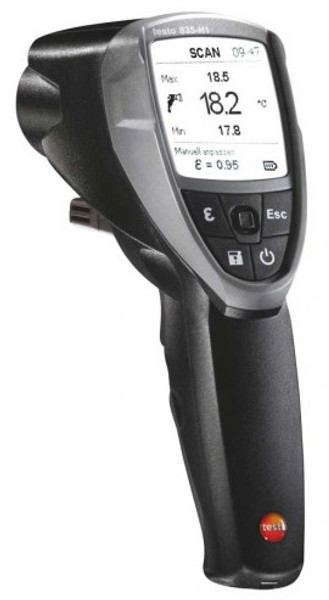

Prevent incorrect measurements with this infrared thermometer has a 4-point laser that shows the exact measuring range. In addition, this thermometer has integrated emissivity measurement for reliability, convenient menu guidance, and patented surface moisture measurement.
Features
Applications
Sensor Type (Infrared) | |
Optics | 50:1 (regarding the distance of 0.61" [2 m] to measuring object typically) + opening diameter of the sensor 0.94" (24 mm) |
Measure Spot Marking | Four point laser |
Spectral Range | 8 to 14 ?m |
Measurement Range | -30 to 600°C |
Accuracy ±1 Digit | ±2.5°C (-30 to -20.1°C) ±1.5°C (-20 to -0.1°C) ±1°C (0 to 99.9°C) ±1% of mv (remaining range) |
Resolution | 0.1°C |
Sensor Type: Type K (NiCr-Ni) | |
Measurement Range | 50 to 600°C |
Accuracy ±1 Digit | ±(-0.5°C + 0.5% of mv) |
Resolution | 0.1°C |
Sensor Type Humidity Sensor Capacitive | |
Measurement Range | 0 to 100% RH |
Accuracy ±1 Digit | ±2% RH ±0.5°C |
Resolution | 0.1°C 0.1% RH 0.1°Ctd |
General Specifications | |
Emissivity | 0.1 to 1 (steps 0.01) Table: 20 values storable |
Laser Spot | On/off |
Memory | 200 values storable |
Alarm | Upper/lower limit: IR temperature, TC temperature Signal: Audible, optical |
Temperature | Operating: -4 to 122°F (-20 to 50°C) Storage: -22 to 122°F (-30 to 50°C) |
Display | Dot matrix |
Auto-Off (Disabled for Continuous Measurement and USB Connection) | Backlight: 30 seconds Instrument: 120 seconds |
Batteries | Type: 3 x batteries type AA (or USB operating with PC-software) Life: 25 hours (typical 25°C without laser and backlight) and 10 hours (typical 25°C without backlight) |
Material/Housing | ABS + PC |
Standards | EN 61326-1:2006 |
Dimensions | 7.6 x 6.5 x 2.5" (193 x 166 x 63 mm) |
Weight | 1.13 lbs (514 g) |
