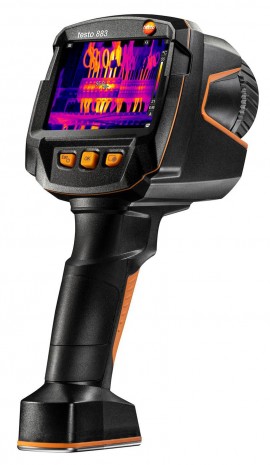

Easily find root cause issues with this imager that includes 76,800 temperature measuring points. Additionally, this imager features SiteRecognition for automatically assigning thermal images to correct measurement objects.
Features
Additional advantages for service engineers and facility managers
Additional advantages for building energy consultants
SuperResolution
SuperResolution allows the infrared resolution of 320 x 240 pixels, to be expandable to 640 x 480 pixels for even clearer images to spot potential issues. In addition, you always have full control over the thermal image thanks to the manual focus and quick change lenses.
ScaleAssist
With ScaleAssist, the function automatically sets the optimum thermal image scale. This prevents interpretation errors and makes infrared images comparable in spite of altered ambient conditions.
PC software IRSoft
With IRSoft, you can conveniently process and analyze infrared images on your PC. Extensive investigative functions are available for professional thermal image processing.
Applications
Download the Thermography App
With the Thermography App, your smartphone/tablet becomes a second display, and a remote control for your thermal imager. In addition to this, you can use the App to create and send compact reports on site, and to save them online. Download for Android or iOS now free.
| Infrared Image Output | |
| Infrared Resolution | 320 x 240 pixels |
| Thermal Sensitivity (NETD) | <40 mK |
| Field of View/Minimum Focusing Distance | Standard lens: 30 x 23°/<0.3' (0.1 m) |
| Geometric Resolution (IFOV) | Standard lens: 1.7 mrad |
| SuperResolution (Pixel/IFOV) | 640 x 480 pixels, 1.1 mrad |
| Image Refresh Rate | 27 Hz |
| Focus | Manual |
| Spectral Range | 7.5 to 14 ?m |
| Image Presentation | |
| Image Display | 3.5" (8.9 cm) TFT, QVGA (320 x 240 pixels) |
| Digital Zoom | 2x, 4x |
| Display Options | IR image/real image |
| Color Palettes | Iron, rainbow, rainbow HC, cold-hot, blue?red, grey, inverted grey, sepia, Testo, iron HT, humidity palette |
| General Specifications | |
| Measurement | Ranges 1: -22 to 212°F (-30 to 100°C) 2: 0 to 1202°F (0 to 650°C) manual/automatic switchover Accuracy: ±3.6°F (±2°C), ±2% of measurement value (higher value applies) Emissivity/reflected temperature compensation: 0.01 to 1/manual ?-Assist: Automatic recognition of emissivity and determination of reflected temperature (RTC) |
| Measurement Functions | Analysis: Centre point measurement, hot/cold spot detection, delta T ScaleAssist: Yes IFOV warner: Yes Humidity mode manual: Yes Solar mode manual: Input of solar radiation value Electrical mode manual: Input of current, voltage or power |
| Image Size/Minimum Focusing Distance | 3 MP/<1.3' (0.4 m) |
| Wi-Fi Connectivity | Communication with the Thermography App; Wireless module Bluetooth/Wi-Fi |
| Touch Operation | Capacitive touch display |
| Laser | Laser marker (laser class 2, 635 nm) |
| Video Streaming | Via USB via Wi-Fi with Thermography App |
| Tripod Socket | For wrist strap or a photo tripod with UNC thread |
| File Format | .bmt and .jpg; export options in .bmp, .jpg, .png, .csv, .xls |
| Memory | Internal memory (2.8 GB) |
| USB | USB-C, USB 2.0 |
| Power Supplies | Battery type: Fast-charging, li-ion battery can be changed on site Operating time: ? 5 hours Charging option: In instrument |
| Temperature Ranges | Operating: 5 to 122°F (-15 to 50°C) Storage: -22 to 140°F (-30 to 60°C) |
| Air Humidity | 20 to 80% RH, not condensing |
| Housing Protection Class (IEC 60529) | IP54 |
| Vibration (IEC 60068-2-6) | 2G |
| System Requirements | Windows 7, 8, and 10 |
| EU Directive | EMC: 2014/30/EU RED: 2014/53/EU WEEE: 2012/19/EU RoHS: 2011/65/EU + 2015/863 REACH: 1907/2006 |
| Housing | PC - ABS |
| Dimensions | 6.7 x 3.7 x 9.3" (171 x 95 x 236 mm) |
| Weight | 1.8 lbs (827 g) |
