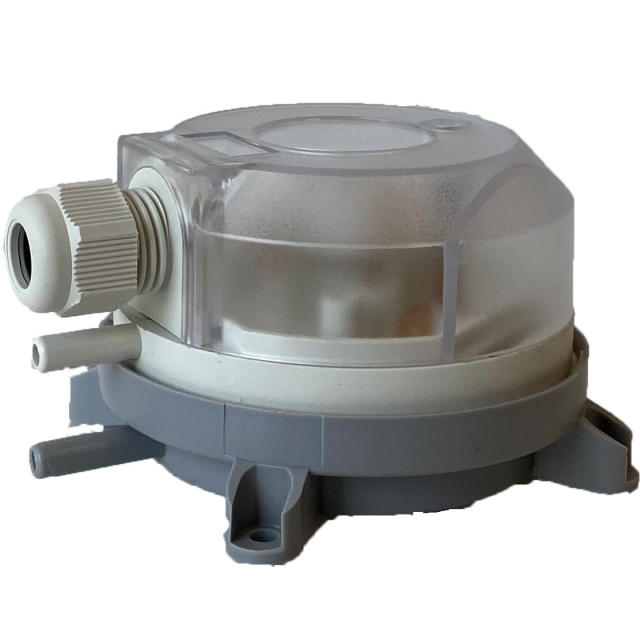

Winters, WPS1000R8, WPS Commercial Differential Pressure Switch, 0.80/4.00 "H2O Range
Features:
Applications:
| Set Point Range | 0.8-4 inH2O Pa |
| Housing Material | Gray colour Polyamide 6.6 plastic |
| Window Cover Material | Frosted Polystyrene resin |
| Deadband Accuracy | +/- 15% of upper and lower pressure ratings |
| Pressure Connection | 2 x plastic pipe connection, 6.0mm (1/4?) external diameter, labelled P1 & P2 |
| Electrical Connection | Flat plug 6.3mm x 0.8mm or push-on screw terminals with PG-11 or M20x1.5 cable strain relief |
| Wetted Partst | Silicone based diaphragm, tempered at 392°F (200°C) |
| Set Point Adjustment | Field adjustable knob |
| Contact Rating | 1.0A 250VAC output, 0.1A 24VDC (low voltage version) |
| Number of Contacts | Single-pole double-throw (SPDT) |
| Maximum Operating Pressure Temperature | 1.45 psi (10 kPa) |
| Ambient/Process Temperature | -4°F to 185°F (-20°C to 85oC) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Enclosure Rating | IP54 |
| Approvals | CE, RoHS & REACH compliant |
| Typical Life | Over 10^6 switching operations |
| Weight | 150g with cover, 110g without cover |
| Mounting Position | Vertical installation with pressure connections pointing downwards |
