Accuenergy
2 in stock

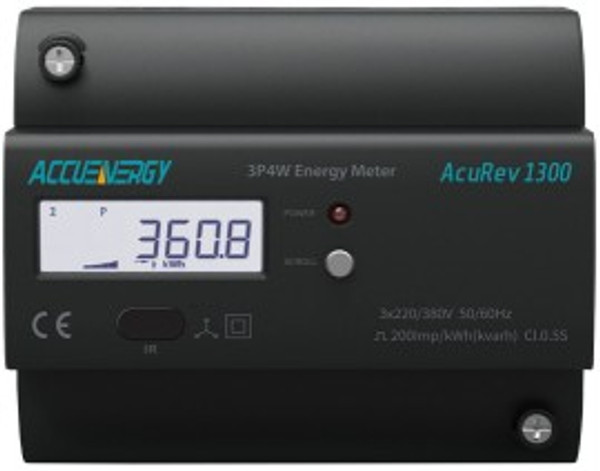

Accuenergy AcuRev 1312-333-X0 DIN Rail Power/Energy Meter, 333 mV CT input
SKU: AcuRev-1312-333-X0
$218.40
Availability: 2 to 3 Weeks Accuenergy AcuRev-1312-333-X0 Specifications Parameter Accuracy Resolution Range Active Energy 0.50% 1Wh 0 to 999999999kWh Reactive Energy 0.50% 1varh 0 to 999999999kvarh Apparent Energy 0.50% 1VAh 0 to 999999999kVAh Voltage 0.50% 0.1 10V to 1000KV Current 0.50% 0.001A 10mA to 500000A Active Power 0.50% 1W -99 to 99MW Reactive Power 0.50% 1var -99 to 99Mvar Apparent Power 0.50% 1VA -99 to 99MVA Power Factor 0.50% 0.0
Secure Checkout
Fast Shipping
Authorized Dealer
Availability: 2 to 3 Weeks
Accuenergy AcuRev-1312-333-X0 Specifications
| Parameter | Accuracy | Resolution | Range |
| Active Energy | 0.50% | 1Wh | 0 to 999999999kWh |
| Reactive Energy | 0.50% | 1varh | 0 to 999999999kvarh |
| Apparent Energy | 0.50% | 1VAh | 0 to 999999999kVAh |
| Voltage | 0.50% | 0.1 | 10V to 1000KV |
| Current | 0.50% | 0.001A | 10mA to 500000A |
| Active Power | 0.50% | 1W | -99 to 99MW |
| Reactive Power | 0.50% | 1var | -99 to 99Mvar |
| Apparent Power | 0.50% | 1VA | -99 to 99MVA |
| Power Factor | 0.50% | 0.001 | -1.000 to 1.000 |
| Frequency | 0.20% | 0.01Hz | 50/60Hz |
| Power Demand | 0.50% | 1W/var/VA | 99MW/Mvar/MVA |
| Current Demand | 0.50% | 0.001A | 10mA to 5000A |
Click here for complete specifications on the Accuenergy AcuRev-1312-333-X0
What's included with the Accuenergy AcuRev-1312-333-X0
- Accuenergy AcuRev 1312-333-X0 DIN Rail Power/Energy Meter, 333 mV CT input
