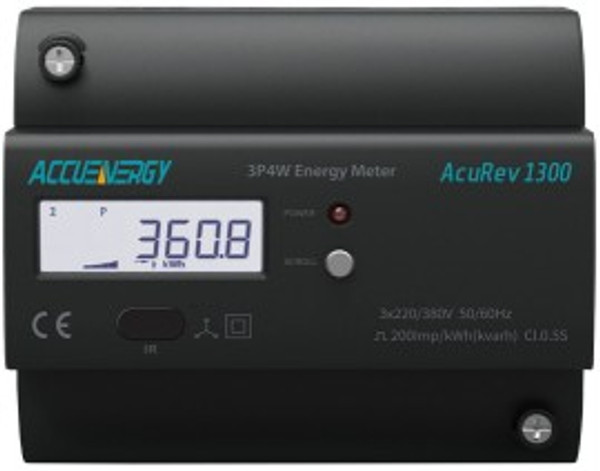

Accuenergy AcuRev 1314-333-X1 DIN Rail Power/Energy Meter, 333 mV CT input, relay output

$411.25

Accuenergy AcuRev 1314-333-X1

Plug n' Play Power Metering Solutions

The AcuRev 1314-333-X1 provides a cost-effective power and energy monitoring solution by combining high performance and ease of integration.

Features

  • Measures active, reactive and apparent energy and power; power, peak power and predictive demand; current and peak current demand; voltage and current; power factor, frequency, time-of-use and running time; as well as bi-directional energy and residual current measurement
  • Utility revenue grade accuracy - IEC 62053-22 0.5s Class / ANSI C12.20 0.5 Class
  • Compatible with any 333mV output current transformer for low cost energy efficiency and energy management systems
  • 4 channel current input including neutral current measurement
  • 10-690Vac direct voltage input, fits all voltage rating system with one model
  • Designed to automatically check most common wiring mistakes such as CT direction, voltage and current phase alignment
  • Supports all electrical system configurations, including three phase three wire (3P3W), three phase four wire (3P4W), single phase three wire (1P3W two element), single phase two wire (1P2W one element) and more

  • Compatible with both 50Hz and 60Hz systems
  • Built-in energy pulse output and alarm output
  • Relay output for alarm and remote control
  • SunSpec certification for best practice products in the solar industry
  • Built-in LCD display designed to simplify setup and local reading of meter data
  • Standard DIN-rail mount for ease-of-installation
  • Tamper-proof design approved for revenue applications
  • RS-485 port built-in with Modbus-RTU and BACnet-MSTP for integration with most systems

Applications

  • Tenant sub metering
  • Energy efficiency studies
  • Building/facility management
  • Branch circuit monitoring
  • Panel metering

Accuenergy AcuRev 1310 Series Specifications

Parameter Accuracy Resolution Range
Active Energy 0.50% 1Wh 0 to 999999999kWh
Reactive Energy 0.50% 1varh 0 to 999999999kvarh
Apparent Energy 0.50% 1VAh 0 to 999999999kVAh
Voltage 0.50% 0.1 10V to 1000KV
Current 0.50% 0.001A 10mA to 500000A
Active Power 0.50% 1W -99 to 99MW
Reactive Power 0.50% 1var -99 to 99Mvar
Apparent Power 0.50% 1VA -99 to 99MVA
Power Factor 0.50% 0.001 -1.000 to 1.000
Frequency 0.20% 0.01Hz 50/60Hz
Power Demand 0.50% 1W/var/VA 99MW/Mvar/MVA
Current Demand 0.50% 0.001A 10mA to 5000A
