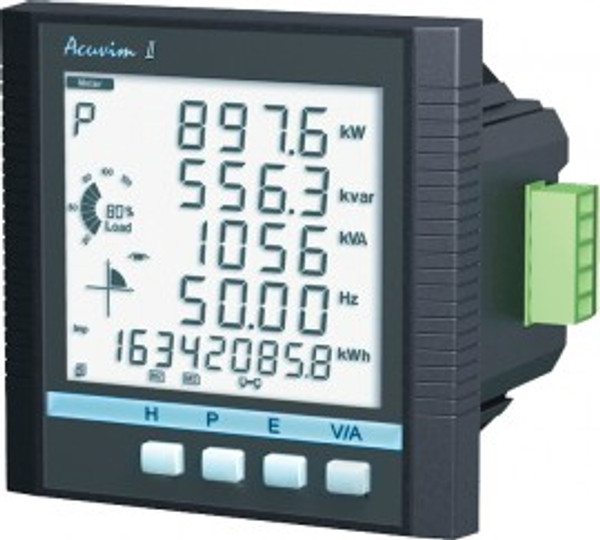

Accuenergy Acuvim IIR-D-RCT-P2V3 Revenue Grade Power Meter/Data Logger, LCD, Rogowski Coil input, 60 Vdc

No reviews yet Write a Review
$839.42
3 sold in last 10 hour
SKU:
Acuvim IIR-D-RCT-P2V3
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Accuenergy Acuvim IIR-D-RCT-P2V3 Revenue Grade Power Meter/Data Logger, LCD, Rogowski Coil input, 60 Vdc

$839.42

Accuenergy Acuvim IIR-D-RCT-P2

The Accuenergy Acuvim IIR revenue-grade power/energy meter with data logging can be a powerful tool for monitoring the energy consumption of a property, which can provide both accurate billing for tenants while helping identify areas to implement energy efficiency upgrades. This model includes the Acuvim IIR basic unit with flexible Rogowski coil current input, 20 to 60V DC power supply, and an integrated mounting option with LCD display.

Functions

Features

  • Revenue grade ANSI C12.20 class 0.2 & IEC 62053-22 class 0.2s
  • 100ms refresh rate
  • Over/Under limit alarms
  • Web server and email sending
  • Switch status monitoring
  • Built-in MODBUS RTU via RS485 port
  • Can be upgraded to include Modbus TCP Ethernet, BACnet, Profibus, and a variety of other communication protocols and I/O expansions for added versatility
  • Onboard data logging memory is up to 8 MB and each log size is adjustable
  • Real time clock allows for any logged events to be accurately time stamped

Acuvim IIR Specifications

  Accuracy
Acuvim-II
Accuracy
Acuvim-IIR/IIE/IIW
Resolution Range
Voltage 0.2% 0.2% 0.1V 20V~1000kV
Current 0.2% 0.2% 0.1mA 5mA~50000A
Power 0.5% 0.2% 1W -9999MW~9999MW
Reactive Power 0.5% 0.2% 1var 9999Mvar~9999Mvar
Apparent Power 0.5% 0.2% 1VA 0~9999MVA
Power Demand 0.5% 0.2% 1W -9999MW~9999MW
Reactive Power Demand 0.5% 0.2% 1var -9999Mvar~9999Mvar
Apparent Power Demand 0.5% 0.2% 0.2% 0~9999MVA
Power Factor 0.5% 0.2% 0.001 -1.000~1.000
Frequency 0.2% 0.2% 0.01Hz 45.00~65.00Hz
Energy Primary 0.5% 0.2% 0.1kWh 0-99999999.9kWh
Energy Secondary 0.5% 0.2% 0.001kWh 0-999999.999kWh
Reactive Energy Primary 0.5% 0.2% 0.1kvarh 0-99999999.9kvarh
Reactive Energy Secondary 0.5% 0.2% 0.001kvarh 0-999999.999kvarh
Apparent Energy Primary 0.5% 0.2% 0.1kVAh 0-99999999.9kVAh
Apparent Energy Secondary 0.5% 0.2% 0.001kVAh 0-999999.999kVAh
Harmonics 1.0% 1.0% 0.1% 0.0%~100.0%
20.0%~100.0% (IIR/IIE/IIW)
Phase Angle 2.0% 2.0% 0.1° 0.0°~359.9°
Unbalance Factor 2.0% 2.0% 0.1% 0.0%~100.0%
Running Time     0.01h 0~9999999.99h
Current Inputs (Each Channel)
Nominal Current 5A /1A
Metering Range 0~10A AC
Withstand 20Arms continuous,
100Arms for 1 second, non-recurring
Burden 0.05VA (typical) @ 5Arms
Pickup Current 0.1% of nominal
Accuracy 0.2% full scale
Voltage Inputs (Each Channel)
Nominal Full Scale 400V AC L-N, 690V AC L-L (+20%)
Withstand 1500V AC continuous
2500V AC, 50/60Hz for 1 minute
Input Impedance 2Mohm per phase
Metering Frequency 45Hz~65Hz
Pickup Voltage 10V AC (30V AC for Acuvim IIR/IIE/IIW)
Accuracy 0.2% full scale
Energy Accuracy (Acuvim IIR/IIE/IIW)
Active According to IEC 62053-22: Class 0.2s
According to ANSI C12.20: Class 0.2s
Reactive (according to IEC 62053-23) Class 2
Harmonic Resolution
Metered Value Acuvim II: 31st harmonic
Acuvim IIR/IIE/IIW: 63rd harmonic
Control Power
Universal AC or DC
Operating Range 100~415V AC, 50/60Hz
100~300V DC
Burden 5W
Frequency 50/60Hz
Withstand 3250V AC, 50/60Hz for 1 minute
Installation Category III (Distribution)
Low Voltage DC Control Power (Optional)
Operating Range 20~60V DC
Burden 5W

Communication

Rs-485 (standard)
MODBUS® RTU Protocol, 2-wire connection
1200~38400 baud rate

The second Rs-485 Port (Optional)
MODBUS® RTU Protocol, 2-wire connection
4800~38400 baud rate

Ethernet (Optional)
10M/100M BaseT
MODBUS® TCP/IP Protocol
Data Browsing through HTTP
Sending e-mail automatically

PROFI-BUs (Optional)
PROFIBUS-DP/V0 Protoco
Work as PROFIBUS slave, baud rate adaptive, up to 12M
Typical input bytes: 32, typical output bytes: 32
PROFIBUS standard according to EN 50170 vol.2
