AEMC 2133.13 Electrician's Test Kit

Availability: 2 to 3 Weeks

AEMC Instruments 2133.13 Offers

This kit provides all the essential tools to measure all typical electrical parameters as well as check the insulation of cables and equipment. It includes a digital multimeter, insulation tester, line splitter and flexible current sensor.

5217 Digital Multimeter

• 5217 TRMS, 6000-cts, NCV, V, A, AC/DC, Ohm, T, Frequency, Auto Hold
• True RMS (TRMS)
• Non-Contact Voltage detection
• Low input impedance voltage measurement (VLowZ) to help prevent "ghost" voltage from affecting the measurement
• HOLD function
• MAX/MIN function displays the maximum and minimum readings detected during a measurement session
• Δ REL compares measurements to a user selected reference value
• Auto/Manual range selection
• Backlight and flashlight
• Multiple mounting options (stand, slot, magnet)
• Sleep Mode for extending battery life
• 400D-10 Current Meter with 10" Flexible Sensor
• Digital FlexProbe with 10" sensor
• Easy access and measurement, even in confined spaces where access is difficult
• Measurement from 20mAAC to 4000A (model dependent)
• Resolution down to 1mA (model dependent)
• Auto-ranging
• Direct reading
• Compact and simple to use
• Flexible current sensor
• Safety rating of 600V CAT IV
• Sensor diameter 1.77" to > 3.94" (sensor dependent)

NC-1 Non-Contact Voltage Detector Features

• Voltage Sensitivity: 100 to 240VAC
• Frequency: 50/60Hz
• Detection Distance: < 5mm
• Over Voltage: 600V Cat. III
• Battery: 2x1.5V AAA
• Safety: For indoor use and in accordance with overvoltage 600V Cat. III, Pollution Degree 2

6527 1kV Megohmmeter Features

• True Megohmmeter®
• Insulation test voltage selections of 250V, 500V and 1000V
• Measure insulation to 4000MΩ (4GΩ)
• TEST LOCK feature for timed measurements up to 15 minutes
• Auto discharge after insulation test
• AC/DC voltmeter to 600VAC/1000VDC
• Ohmmeter to 400kΩ
• Continuity meter with up to 200mA test current
• Test lead resistance compensation for accurate low resistance measurements
• Auto HOLD function to "freeze" readings
• Large and bright dual display with blue backlight
• Auto Power Off
• Ergonomic over-molded case with back-stand
• Complies with International Insulation Testing
• Standards including EN61557
• CE marked and 600V CAT IV

AEMC Instruments 2133.13 Specifications

Specifications

AEMC 5217 Specifications
AC Bandwidth	1000kHz
Auto/Manual Ranging	Yes
Voltage AC/DC	750V AC / 1000V DC
Current AC/DC	6A/10A
µAmps AC/DC	600/6000µA
Resistance	60MΩ
Frequency / Duty Cycle	1000Hz
Capacitance	100mF
Continuity with Beeper	Yes
Diode Test	Yes
V Low Z	Yes
Non Contact Voltage Detection (NCV)	Red display with buzzer
Max / Min / Max-Min Functions	Yes
REL Function	Yes

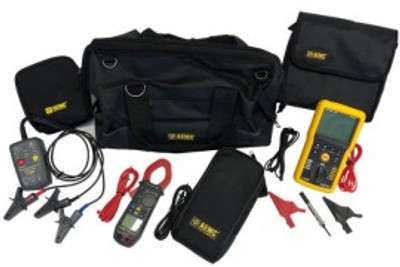

What's included with the AEMC Instruments 2133.13

• 5217 True RMS Multimeter
• 400D-10 with 6' Lead True RMS Digital FlexProbe
• NC-1 Non-Contact AC Voltage Detector
• ALS-1 Line Splitter
• 6527 Digital Megohmmeter
• Tool Bag
