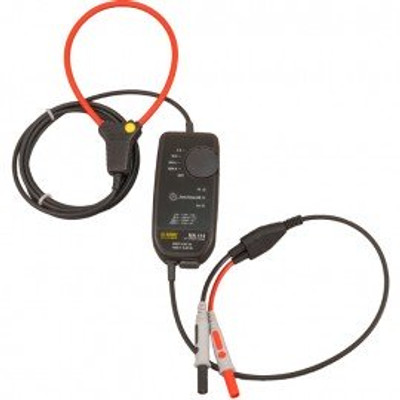

Presenting virtually no load to the system under test, the AC current sensor has a low phase shift and excellent frequency response, and cannot be damaged by overloads. The sensor assembly is insulated for 1000V CAT III, 600V CAT IV.
| Electrical | |
| Measurement Range | 3000 A |
| Mechanical | |
| Module Output | 10' (3 m) BNC cable |
| Environmental | |
| Operating Temperature | 14 to 131°F (-10 to 55°C) |
| General Specifications | |
| Temperature | 73 ± 9°F (23 ± 5°C) |
| Electrical | |
| Current Range | 0.5 to 3000 A |
| Mechanical | |
| Sensor Diameter | 5 mm Ø |
| Environmental | |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| General Specifications | |
| Relative Humidity | 20 to 75% RH |
| Electrical | |
| Output Signal | 1 mV/A |
| Mechanical | |
| Sensor Length | 3000-14-1-1: 14" (356 mm)3000-24-1-1: 24" (610 mm) |
| Environmental | |
| Temperature Resistance | The flexible sensor can withstand a temperature of 194°F (90°C) and is resistant to oil and Aliphatic hydrocarbons |
| General Specifications | |
| Frequency of the Signal Measured | 40 to 400 Hz |
| Electrical | |
| Frequency Range | 10 Hz to 20 kHz with current derating |
| Mechanical | |
| Max Conductor Size | 3000-14-1-1: 3.93" (100 mm)3000-24-1-1: 7.5" (190 mm) |
| Environmental | |
| Influence of Temperature | Sensor: 14 to 212°F (-10 to 100°C): < 0.5% of Reading per 18°F (10°C)Module: 14 to 131°F (-10° to 55°C): < 0.5% of Reading per 18°F (10°C) |
| General Specifications | |
| Type of Signal | Sinusoidal |
| Electrical | |
| Frequency Limitation | up to 300 Arams there is no frequency limitation |
| Mechanical | |
| Connection Cable Length (Module to Sensor) | 6' (2 m) |
| Environmental | |
| Relative Humidity | 10 to 90% RH: 0.1% typical, 0.3% maximum |
| General Specifications | |
| External Electric Field | <1 V/m |
| Electrical | |
| Influence of Conductor Positioning | 1.5% typical, 3% max |
| Mechanical | |
| Flammability Rating | Sensor: UL94V0 housing: UL94V2 |
| Environmental | |
| Altitude | Operating: 0 to 6562' (0 to 2000 m), working voltage derating aboveNon-operating: 0 to 39,000' (0 to 12,000 m) |
| General Specifications | |
| External DC Magnetic Field (Earth Field) | <40 A/m |
| Electrical | |
| Influence Of Conductor Positioning In Sensor Against Handle | 4% typical, 6% max |
| Mechanical | |
| Drop Test | Per IEC 68-2-32 |
| General Specifications | |
| External AC Magnetic Field | None |
| Electrical | |
| External Conductor Influence | 35 dB to 40 dB on contact |
| Mechanical | |
| Vibration | Per IEC 68-2-6 |
| General Specifications | |
| Position of the conductor | Centered in the measurement coil |
| Electrical | |
| Accuracy | ±1% +0.25 A |
| Mechanical | |
| Mechanical Shock | Per IEC 68-2-27 |
| General Specifications | |
| Shape of the measurement coil | Nearly circular |
| Electrical | |
| Common Mode Rejection | 100 dB typical, 80 dB minimum |
| Mechanical | |
| Weatherproofing | IP50 (Module |
| General Specifications | |
| Input Impedance of the Display Device Connected to Housing | ≥1 MQ |
| Electrical | |
| Max Peak Factor(1) at I Nominal | 1.5 |
| General Specifications | |
| Power Sources | 9 V alkaline, type LF22 |
| Electrical | |
| Residual Noise at I = 0 (Arms)(2) | Maximum phase shift at 50 Hz |
| General Specifications | |
| Battery Life | >140 hours continuous |
| Electrical | |
| Max Offset Voltage (mVDC) | 1.5° |
| General Specifications | |
| Battery Indicator | Green LED blinks when battery needs replacement |
| Electrical | |
| Max Output Voltage (Vpeak) | ±4.5 |
| General Specifications | |
| Module Output | 10' (3 m) BNC cable |
| Electrical | |
| Output impedance (kΩ) | 1 |
| General Specifications | |
| Dimensions | 4.0 x 2.5 x 1.1" (103 x 64 x 28 mm) |
| Electrical | |
| Overload | Red LED ON when output around >4.5 V |
| General Specifications | |
| Weight | 7.76 oz (210 g) |
| Double Insulation | Yes, per IEC 1010-2-32 |
| CE Rated | Yes |
| Safety Rating | EN/IEC 61010-1 600 V CAT IV, 1000V CAT III, EN/IEC 61010-2-032:2002 |
| Pollution | 2 |
| Immunity and Emission | Industrial environment |
| Electromagnetic Compatibility | EN 61326-1 |
