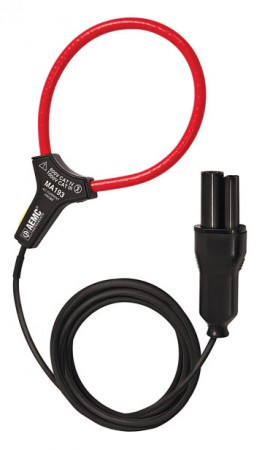

AEMC MA193-10-BK MiniFlex Sensor, 100 mA to 3000 A, 10"
SKU: MA193-10-BK
Availability: 2 to 3 Weeks AEMC Instruments MA193-10-BK Offers Features Flexible sensor Sensor opening device Shielded lead Custom 4-pin input connector AEMC Instruments MA193-10-BK Specifications Specifications Current Range 100 mA to 3000 A AC Accuracy (Typical) ±1% Clamping Diameter 2.75″ (70 mm) Sensor 10″ (254 mm) Temperature Operating: 14 to 131°F (-10 to 55°C); 10 to 85% RHStorage: -40 to 158°F (-40 to 70°C); 10 to 90% RH Output Termina
Availability: 2 to 3 Weeks
AEMC Instruments MA193-10-BK Offers
Features
- Flexible sensor
- Sensor opening device
- Shielded lead
- Custom 4-pin input connector
AEMC Instruments MA193-10-BK Specifications
Specifications
| Current Range | 100 mA to 3000 A AC |
| Accuracy (Typical) | ±1% |
| Clamping Diameter | 2.75" (70 mm) |
| Sensor | 10" (254 mm) |
| Temperature | Operating: 14 to 131°F (-10 to 55°C); 10 to 85% RHStorage: -40 to 158°F (-40 to 70°C); 10 to 90% RH |
| Output Termination | Proprietary connector |
| Pollution Degree | 2 |
| Protection | IK 04, IP40 |
| Safety Compliance | IEC 61010-1, EN/IEC 61010-2-032, 1000 V CAT III, 600 V CAT IV |
| Lead Length | 10' (3 m) |
| Dimensions | 4 x 2.5 x 1.1" (103 x 63 x 28 mm) |
| Weight | 1.94 oz (55 g) |
What's included with the AEMC Instruments MA193-10-BK
- AEMC MA193-10-BK MiniFlex Sensor, 100 mA to 3000 A, 10"
