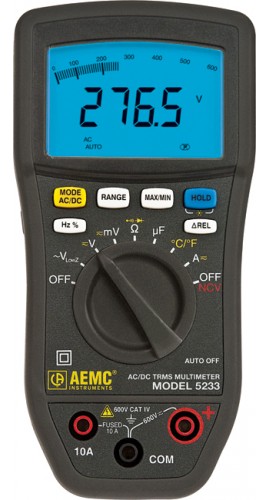

AEMC 5233 True RMS Multimeter with Non-Contact Voltage Detection and Temperature

Availability: 1 Week

AEMC Instruments 5233 Offers

The Multimeter Model 5233 provides a Volt, Ohm, Continuity, Diode, Capacitance, Frequency, Duty Cycle and Ammeter function, as well as an AC voltmeter with low input impedance that is capable of finding ghost voltages by adding a burden to the circuit. It can measure up to 10 Amps directly and can measure temperature in both °C or °F using K-type thermocouples.

The rotary function switch provides two OFF positions (OFF and OFF NCV). While in the OFF NCV position, the display will turn red if placed close to a live cable, providing a safe and easy way to detect hot wires. This meter has a high sensitivity with a resolution of 0.01mV and can withstand overloads up to 8000V.

The Model 5233 is ideal for electrical installers, electricians and heating or air-conditioning specialists.

Features

• Non-electrical contact detection of network voltage (NCV Function)
• High sensitivity with a resolution of 0.01mV
• AC voltmeter with low input impedance (voltage measurements for electricity and electrical engineering)
• AC/DC voltmeter with high input impedance (voltage measurements for electronics)
• Ohmmeter, Continuity test with buzzer, Diode test and Capacitance functions
• Frequency and Duty Cycle measurements
• Withstands overloads up to 8000V
• VLowZ function detects the presence of ghost voltage by placing a burden on the circuit
• Multi-position mounting for a hands-free work environment
• IEC/EN 61010-1, 1000V CAT III, 600V CAT IV

Applications

• General purpose testing
• Detect loose electrical wiring
• Detect live circuits
• Temperature checking

AEMC Instruments 5233 Specifications

Specifications

Acquisition	True RMS
Autorange or Manual	Yes
Bandwidth	3kHz (V) / 1kHz (A)
Best Accuracy	0.002
AC Voltage	6 ranges / 60mV to 1000VResolution: 0.01mV
AC LowZ Voltage	4 ranges / 60mV to 1000VResolution: 0.01mV
DC Voltage	6 ranges / 600V to 1000VResolution: 0.01mV
AC Current / DC Current	2 ranges / 6 to 10AResolution: 0.001A
Resistance Measurement	6 ranges - 60MΩResolution: 0.1Ω
Audible Continuity/Diode Test	Yes
Frequency/Duty Cycle	3 ranges: up to 3kHz / Yes
Capacitance	6 ranges - 1000µFResolution: 0.01nF
Temperature (with external K thermocouple)	Range: -20 to 760°C (4 to 1400°F)Resolution: 1°

What's included with the AEMC Instruments 5233

• True RMS Multimeter
• 2 x 5ft red and black leads with needle tips, 1000V CAT IV 15A
• Type-K Thermocouple with adapter
• Soft carrying case
• Manual
