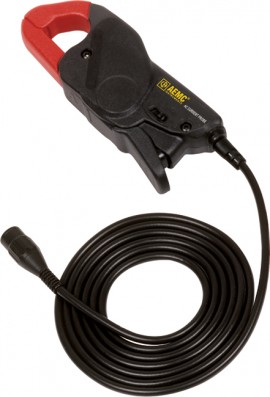

AEMC MN307 AC Current Probe, Lead, 100mV/A, 12A

Availability: 1 to 2 Weeks

AEMC Instruments MN307 Offers

The MN307 is designed for low AC current measurements up to 10A, such as secondary of CTs or even small motors and appliances. It offers a higher voltage output of 100mV per Amp (1VAC at 10A AC) for enhanced sensitivity at lower levels, while offering a high crest factor at full range. The MN307 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.

Features

• Small, compact size
• Measurement range of 0.01 to 12A
• Large jaw opening accommodates conductors up to 250MCM
• Designed for DMMs, loggers, recorders and oscilloscopes
• 40Hz to 10kHz response
• 100mV/A output signal
• Designed to EN 61010, 600V, Cat. III safety standard
• UL approved for Canada and United States
• Double Insulation
• CE Mark

Applications

• Measuring in breaker panels
• Industrial loads
• HVAC/R
• Residential and commercial sites
• 5A secondary current transformers (CTs) monitoring

AEMC Instruments MN307 Specifications

Specifications

Nominal Range	10A
Measurement Range	0.01 to 12A
Transformation Ratio	Voltage output
Output Signal	100mV/A (1V at 10A)
Accuracy (10A Range)	0.1 to 0.5A: ≤2.5% of Reading ± 0.1mV0.5 to 1A: ≤2.5% of Reading1 to 12A: ≤1.0% of Reading
Phase Shift (10A Range)	0.01 to 0.1A: Not Specified0.1 to 1A: ≤5.0°1 to 5A: ≤3.0°5 to 12A: ≤2.5°
Overload	12A for Continuous
Frequency Range	40 to 10kHz
Limit Operating	200A permanently to 3kHzConditions Derating above 3kHz: 200A x (1/0.333F), F in kHz
Crest Factor	3 at 10Arms with an error (due to CF) of 3%
Working/Common Mode Voltage	600Vrms
Output Termination	5ft Lead

What's included with the AEMC Instruments MN307

• AEMC MN307 AC Current Probe, Lead, 100mV/A, 12A
