AEMC MN313 AC Current Probe, Lead, 1mA/A, 150A
SKU: MN313
Availability: 2 to 3 Weeks AEMC Instruments MN313 Offers The MN313 is a high accuracy and lower phase shift AC current probe. It has a 1000:1 ratio and an output of 1mA per amp in the primary (inside the jaws). The MN313 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs. The MN313 has a protective diode across the output that limits the voltage in the case of an open secondary. Features Small, compact size Measurement range
Availability: 2 to 3 Weeks
AEMC Instruments MN313 Offers

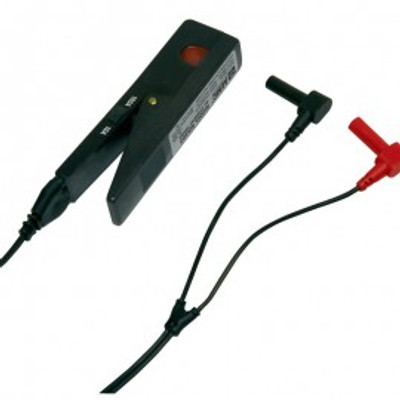

The MN313 is a high accuracy and lower phase shift AC current probe. It has a 1000:1 ratio and an output of 1mA per amp in the primary (inside the jaws). The MN313 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs. The MN313 has a protective diode across the output that limits the voltage in the case of an open secondary.
Features
- Small, compact size
- Measurement range of 0.1 to 240A AC
- Large jaw opening accommodates conductors up to 250MCM
- Designed for DMMs, loggers, recorders and oscilloscopes
- 40Hz to 10kHz response
- 1mA AC/A AC output signals
- Designed to EN 61010, 600V Cat. III safety standard
- UL approved for Canada and United States
- Double Insulation
- CE Mark
Applications
- Measuring in breaker panels
- Industrial loads
- HVAC/R
- Residential and commercial sites
- 5A secondary current transformers (CTs) monitoring
AEMC Instruments MN313 Specifications
Specifications
| Nominal Range | 200A |
| Measurement Range | 0.1 to 240A |
| Transformation Ratio | 41.66736111111111 |
| Output Signal | 1mA/A (100mA at 100A AC) |
| Accuracy (200A Range) | 0.1 to 1A: 2% of Reading ± 0.02mA1 to 80A: 1% of Reading ± 0.02mA80 to 100A: 2% of Reading ± 0.1mA100 to 150A: 2.5% of Reading ± 0.5mA150 to 200A: Not Specified |
| Phase Shift (200A Range) | 0.1 to 1A: Not Specified1 to 20A: ≤3.0°20 to 80A: ≤2.0°80 to 150A: ≤2.5° |
| Frequency Range | 40 to 10kHz |
| Limit Operating | 200A permanently to 3kHzConditions Derating above 3kHz: 200A x (1/0.333F), F in kHz |
| Crest Factor | 5 at 280A Peak with an error (due to CF) of 5% |
| Working/Common Mode Voltage | 600Vrms |
| Output Termination | 5ft Lead |
What's included with the AEMC Instruments MN313
- AEMC MN313 AC Current Probe, Lead, 1mA/A, 150A
AEMC MN313 AC Current Probe, Lead, 1mA/A, 150A. Great savings and get fast delivery when you order online at EquipTestPro.com.
