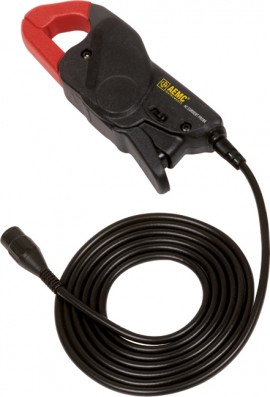

AEMC MN352 AC Current Probe, Jack, 10m/V/A, 150A

Availability: 6 to 7 Weeks

AEMC Instruments MN352 Offers

The MN352 is a high accuracy and low phase shift AC current probe with voltage output. It is designed for use with DMMs or current measuring instruments with voltage inputs. The voltage output is proportional to the current measured (through the jaws). The MN352 has a jack output that accepts 4mm banana plugs.

Features

• Small, compact size
• Large jaw opening accommodated conductors up to 250kcmil
• Designed for DMMs, loggers, recorders and oscilloscopes
• Conforms to EN 61010, 600V CAT III

Applications

• Measuring in breaker panels
• Industrial loads
• HVAC/R
• Residential and commercial sites
• 5A secondary current transformers (CTs) monitoring

AEMC Instruments MN352 Specifications

Specifications

Nominal Range	150A
Measurement Range	0.1 to 150A
Transformation Ratio	Voltage output
Output Signal	10mV/A (1V at 100A AC)
Accuracy (150A Range)	0.1 to 1A: ≤3% of Reading ± 200μV1 to 80A: 1% of Reading ± 0.2mV80 to 150A: 1.5% of Reading ± 0.2mV
Phase Shift (150A Range)	1 to 20A: ≤3.0°20 to 100A: ≤2.0°100 to 150A: ≤2.5°
Overload	240A for 10 min ON, 30 min OFF
Frequency Range	40 to 10kHz
Limit Operating	200A permanently to 1kHzConditions Derating above 3kHz: 200A x (1/0.333F), F in kHz
Crest Factor	3 at 150A Peak with an error (due to CF) of 3%
Working/Common Mode Voltage	600Vrms
Output Termination	Jack

What's included with the AEMC Instruments MN352

• AEMC MN352 AC Current Probe, Jack, 10m/V/A, 150A
