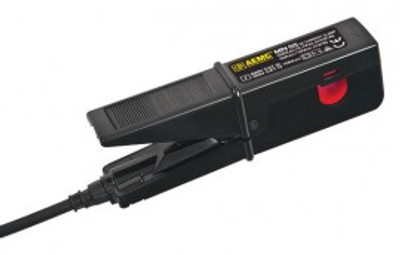

AEMC MN375 AC Current Probe, 10 AAC
SKU: MN375
Availability: 1 to 2 Weeks AEMC Instruments MN375 Offers Features a 0.78″ (20 mm) jaw opening and will accommodate conductors up to 250 kcmil, and the unique hooked jaw design facilitates clamping and hooking into conductors. Polycarbonate materials and ultrasonic welding are used throughout to ensure ruggedness and overall lasting reliability. Uses a nickel core to improve accuracy and phase shift on the low end of the measurement range. The
Availability: 1 to 2 Weeks
AEMC Instruments MN375 Offers
Features a 0.78" (20 mm) jaw opening and will accommodate conductors up to 250 kcmil, and the unique hooked jaw design facilitates clamping and hooking into conductors. Polycarbonate materials and ultrasonic welding are used throughout to ensure ruggedness and overall lasting reliability. Uses a nickel core to improve accuracy and phase shift on the low end of the measurement range. The current probe is an excellent probe to be used in power and low-level current measurement application.
Features
- Small, compact size
- Measurement range of 0.1 to 10 A
- Large jaw opening accommodates conductors up to 250 kcmil
- Designed for DMMs, loggers, recorders and oscilloscopes
- 40 Hz to 10 kHz response
- 100 mV/A output signals
- Designed to EN 61010, 600 V, CAT III safety standard
- UL approved
- Double insulation
- CE Mark
Applications
- Industry contracting
- Electrical contracting
- Power and low level current measurement
AEMC Instruments MN375 Specifications
Specifications
| Range | Nominal: 10 AACMeasurement: 0.1 to 10 AAC |
| Transformation Ratio | Voltage output |
| Output Signal | 100 mV/A (1 VAC at 10 A) |
| Accuracy | 0.1 to 1 A: 1% of reading ±20 mA1 to 10 A: 1% of reading ±0.15 A |
| Phase Shift | 1 to 5 A : ≤1° at 60 Hz5 to 10 A: ≤1.5° at 60 Hz |
| Overload | 20 A continuous |
| Frequency Range | 40 Hz to 3 kHz |
| Load Impedance | 1 MΩ |
| Crest Factor | 3 at 10 Arms with an error (due to CF) of 3% |
| Working/Common Mode Voltage | 600 Vrms |
| Output Termination | Double-insulated 5' (1.5 m) lead with two 4 mm safety banana plugs |
| Temperature | Operating: 14 to 131°F (-10 to 55°C)Storage: -40 to 158°F (-40 to 70°C) |
| Operating Relative Humidity | 85% RH without roll-off above 95°F (95°C) |
| Material | Polycarbonate UL 94 |
| Jaw Opening | 0.83" (21 mm) |
| Maximum Conductor Size | 0.78" maximum (20 mm) |
| Dimensions | 5.47 x 2 x 1.18" (139 x 51 x 30 mm) |
| Weight | 6.5 oz (180 g) |
| Electrical Safety | EN/IEC 61010-1 600 V CAT III, EN 61010-2-32, Pollution Degree 2 |
| Protection | IP40 |
What's included with the AEMC Instruments MN375
- AEMC MN375 AC Current Probe, 10 AAC
