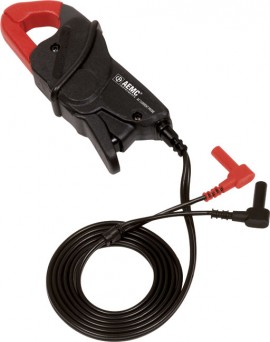

AEMC MN379 AC Current Probe, Lead, 5A/100A

Availability: 2 to 3 Weeks

AEMC Instruments MN379 Offers

Designed to meet the most stringent demands in industry and electrical contracting, it also meets the latest safety and performance standards.

The Model MN379 has a 0.78" (20mm) jaw opening and will accommodate conductors up to 250kcmil. The unique hooked jaw design facilitates clamping and hooking into conductors. Polycarbonate materials and ultrasonic welding are used throughout to ensure ruggedness and overall lasting reliability.

Features

• Small, compact size
• Large jaw opening accommodated conductors up to 250kcmil
• Designed for DMMs, loggers, recorders and oscilloscopes
• Conforms to EN 61010, 600V CAT III

Applications

• Measuring in breaker panels
• Industrial loads
• HVAC/R
• Residential and commercial sites
• 5A secondary current transformers (CTs) monitoring

AEMC Instruments MN379 Specifications

Specifications

Nominal Range	5A, 100A
Measurement Range	5A: 0.005 to 6A; 100A: 0.1 to 120A
Transformation Ratio	Voltage output
Output Signal	5A: 200mV/A100A: 10mV/A
Frequency Range	40 to 10kHz
Limit Operating Conditions	200A MAX to 1kHzDerating above 1kHz: 200A x (1*F), F in kHz
Working Voltage	600Vrms
Common Mode Voltage	600Vrms
Influence of Adjacent Conductor	< 15mA/A at 50Hz
Influence of DC on AC signal	5A Range: DC Current < 1A, < 3% 100A Range: DC Current < 10A, < 10%
Influence of Conductor Position in Jaw	0.5% of mV output at 50/60Hz
Influence of Frequency	5A Range: 40Hz to 1kHz: <0.7% of mV output; 1kHz to 3kHz: <2%% of mV output 150A Range: 40Hz to 1kHz: <0.7% of mV output; 1kHz to 3kHz: <0.7% of mV output
Influence of Temperature	≤200 ppm/°K, or 0.2% of mV output per 10°K
Influence of Humidity (10 to 90% RH)	≤0.2% of mV output per 10°K at 18° to 28°C

What's included with the AEMC Instruments MN379

• AEMC MN379 AC Current Probe, Lead, 5A/100A
