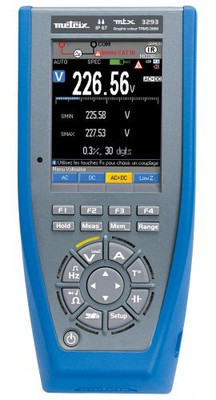

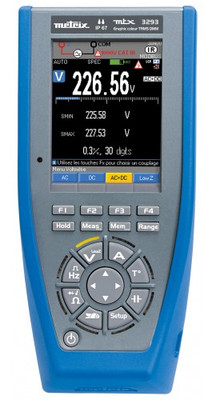

AEMC MTX 3293 Datalogging Multimeter, 1000 V AC/DC, 6500 point memory

Availability: 1 to 2 Weeks

AEMC Instruments MTX 3293 Offers

It's innovative design makes them compact, rugged, comfortable to grip and leakproof to IP67 standard. These dynamic loggers can record many different quantities. Advanced measurement functions includes Duty Cycle, Pulse Counting, Math function and monitoring of Min/Max/Avg/Peaks enables you to observe many various aspects of electrical quantities.

Features

• Easy-to-read 320 x 240 pixel color matrix graphical screen with black background
• Trace, cursors and zoom on recordings
• Programmable storage rate
• Stores of up to 6500 measurements
• On screen connection indicator
• USB Communication available
• NiMH AA rechargeable battery
• Diode test capable
• No downtime: instrument operates while charging

AEMC Instruments MTX 3293 Specifications

Specifications

DC, AC & AC/DC Voltage	100mV to 1000V
Audible Continuity	1000Ω signal < 20Ω < 3.5
Diode Test	Diode 0 to 2.6V < 1mA + Zener Diode or LED 0 to 20V < 11mA
DC Voltage Accuracy	0.02%
AC & AC/DC Bandwidth	200kHz
DC, AC & AC/DC Current	1000µA to 10A / 100A to 20A (30s max)
DC Current Accuracy	0.01%
Frequency	10Hz to 5MHz
Resistance	100Ω to 100MΩ
Capacitance	1nF to 10mF
Temperature Pt100/1000	-328 to 1472°F (-200 to 800°C)
Temperature K/J TC	-40 to 2192°F (-40 to 1200°C)
Memory	6500 Data Points

What's included with the AEMC Instruments MTX 3293

• MTX 3293 Digital Multimeter
• 4 x NiMH 2400mAH 1.5V Rechargeable Batteries
• Battery Charger
• 2 Test Leads, 1 red, 1 black, 1.5m
• 2 Test Probes, 1 red, 1 black, CAT IV 1kV
• Soft Carrying Case
• USB Cable
• SX-DMM Software
• Remote Programming Manual
• User Manual on CD
• Quick Start Guide
