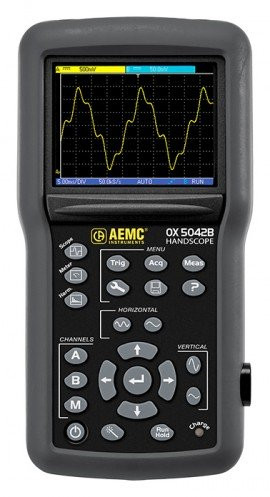

AEMC OX5042B-CK Portable 3-in-1 Oscilloscope, 2 Channel, 40 MHz
SKU: OX5042B-CK
Availability: 2 to 3 Weeks AEMC Instruments OX5042B-CK Offers The Handscope is an ergonomically designed instrument equipped with a color screen and LED backlighting for precise, crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use. 2 MB of storage are available for recording data. In the multimeter mode, it is possible to store graphic recordings of 2700 measurements from 5 min to 1 mon
Availability: 2 to 3 Weeks
AEMC Instruments OX5042B-CK Offers
The Handscope is an ergonomically designed instrument equipped with a color screen and LED backlighting for precise, crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use. 2 MB of storage are available for recording data. In the multimeter mode, it is possible to store graphic recordings of 2700 measurements from 5 min to 1 month. Isolated USB communication with the SCPI protocol is available. This makes it simple to program the instrument remotely with the supplied SX-METRO software. This product has been developed using an Eco-Design approach to reduce their environmental impact and is supplied with a 3-year warranty.
Features
- 2 totally isolated channels
- Three instruments in one
- Recording capacity
- 8-hour battery life
- Integrated multilingual help function
- 3.5" color LCD screen
Combines three measuring instruments in one:
- 40 MHz oscilloscope
- Independent 8000-count multimeter with power measurements
- Built-in harmonic analyzer out to the 31st harmonic (fundamental between 40 Hz and 450 Hz)
Applications
- Field Troubleshooting
- Education
- Design verification
AEMC Instruments OX5042B-CK Specifications
Specifications
| Type of Display | 3.5" color TFT LCD screenResolution: 320 x 240LED backlighting |
| Commands | Direct adjustments on front panel and on-screen menus via browser (principal & secondary without "hidden menus") |
| Power Measurements | Single-phase and balanced three-phase active power values (with or without neutral), simultaneous display of current |
| PC Communication | Isolated optical USB interface"SX-Metro" PC application software |
| Power Supply | 6 LR6 or 6 AA NiMh batteriesBattery life up to 8 hrs 30 minUniversal mains adapter isolated from the channelsQuick charging in 2 hrs 30 min |
| Safety/EMC | Safety according to IEC61010-1 Ed3600 V CAT IIIEMC according to EN61000-3, 2001 & EN61326-1, 2006 |
| Protection Rating | IP54 (moulded elastomer casing) |
| Dimensions | 8.43 x 4.33 x 2.24" (214 x 110 x 57 mm) |
| Weight | 2.65 lbs (1.2 kg) |
What's included with the AEMC Instruments OX5042B-CK
- OX5042-CK Handscope Oscilloscope
- 5000.50 (2) Probe 10:1 600V/BNC-M
- 5000.49 BNC Adapter
- 5000.52 USB Cable + Driver
- 2152.03 Set of two, color-coded leads, test probes and clips
- 5000.53 Power Supply 15 W, 10 to 240 V, 12 V
- 5000.51 US Adapter for the power supply
- 5000.48 Soft Hand-held Carrying Case
- 2 CD-ROMs (software and manual)
- (6) 1.2V NiMH rechargeable batteries 2700 mA/h
AEMC OX5042B-CK Portable 3-in-1 Oscilloscope, 2 Channel, 40 MHz. Great savings PLUS Free Shipping when you buy now from EquipTestPro.com.
