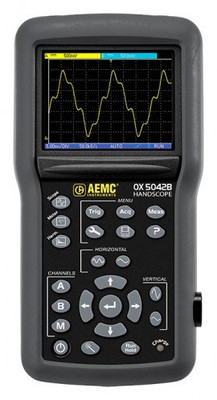

AEMC OX5042B Portable Handscope Oscilloscope Kit with MN379T AC current probe
SKU: OX5042B w/MN379T Kit
Availability: 1 to 2 Weeks AEMC Instruments OX5042B w/MN379T Kit Offers Features Two isolated channels Three instruments in one: 40 MHz oscilloscope, double 8000-count TRMS multimeter/power analyzer, and harmonic analyzer 3.5″ color LCD screen LED backlighting technology Integrated interactive multilingual help function 2 MB recording data Store graphic recordings of 2700 measurements (5 min to 1 month) Communication via isolated USB SCPI prot
Availability: 1 to 2 Weeks
AEMC Instruments OX5042B w/MN379T Kit Offers
Features
- Two isolated channels
- Three instruments in one: 40 MHz oscilloscope, double 8000-count TRMS multimeter/power analyzer, and harmonic analyzer
- 3.5" color LCD screen LED backlighting technology
- Integrated interactive multilingual help function
- 2 MB recording data
- Store graphic recordings of 2700 measurements (5 min to 1 month)
- Communication via isolated USB SCPI protocol
AEMC Instruments OX5042B w/MN379T Kit Specifications
Specifications
| Oscilloscope Mode | |
| Vertical Deflection | Bandwidth: 40 MHz Bandwidth Limiter: 1.5 MHz, 5 kHz Number of Channels: 2 totally isolated channels Input Impedance: 1 MΩ ±0.5%, approximately 17 pF Maximum Input Voltage: 600 V CAT III – Derating -20 dB per decade from 100 kHz Vertical Sensitivity: 5 mV to 200 V/div |
| Horizontal Deflection | Sweep Speed: 25 ns/div to 200 s/div – roll mode from 100 ms to 200 s/div Horizontal Zoom: Zoom factor: x1, x2, x5 |
| Triggering | Mod: Automatic, triggered, one-shot & triggered roll Typ: Edge, pulse width (20 ns to 20 s) Couplin: AC or DC (depending on the coupling of the triggering channel) HF, LF or noise rejection Sensitiv: ≤1.2 divisions p-p up to 40 MHz |
| Multimeter Mode | |
| General Specifications | 2 channels, 8000-count display + min/max bargraph – Graphic recording of 2700 measurements (5 min to 1 month) |
| Operating Modes | Absolute or relative display (absolute, deviation, ref, ref%) – Monitoring (instantaneous, min, max, Avg) |
| AC, DC & AC+DC Voltages | Ranges from 600 mV to 600 V RMS, 800 mV to 800 V DC – accuracy for V DC ±1% reading+20D – 50 kHz bandwidth |
| Resistance | Range from 80 Ω to 32 MΩ - accuracy ±2% reading + 10 D – 10 ms quick continuity test |
| Capacitance | Ranges from 5 nF to 5 mF – basic accuracy ±2% reading + 10 D |
| Other Measurements | Frequency, rotation speed, 3.3 V diode test, temperature measurement (with K-type thermocouple or infrared probe) |
| Harmonic Analyzer Mode | |
| Multi-Channel Analysis | 2 channels, 31 orders, fundamental frequency from 40 to 450 Hz |
| Simultaneous Measurements | Total V RMS, THD, and selected order (% fundamental, phase, frequency, V RMS) |
What's included with the AEMC Instruments OX5042B w/MN379T Kit
- Handscope Oscilloscope
- MN379T AC Current Probe
- MiniFlex® Sensor 3000-24-1-1
- USB Wall Plug
- USB Cable
- 2 x 10' Color-Coded Leads (Red/Black)
- 2 x Color-Coded Alligator Clips (Red/Black)
- 2 x Color-Coded Probes (Red/Black)
- BNC Adapter
- Probe 10:1 600 V BNC Male
- Field Carrying Case
- 1.2 V NiMH Rechargeable Batteries
- Quick Start Guide
- USB Drive with Software and User Manual
AEMC OX5042B Portable Handscope Oscilloscope Kit with MN379T AC current probe. Great savings PLUS Free Shipping when you order today on EquipTestPro.com.
