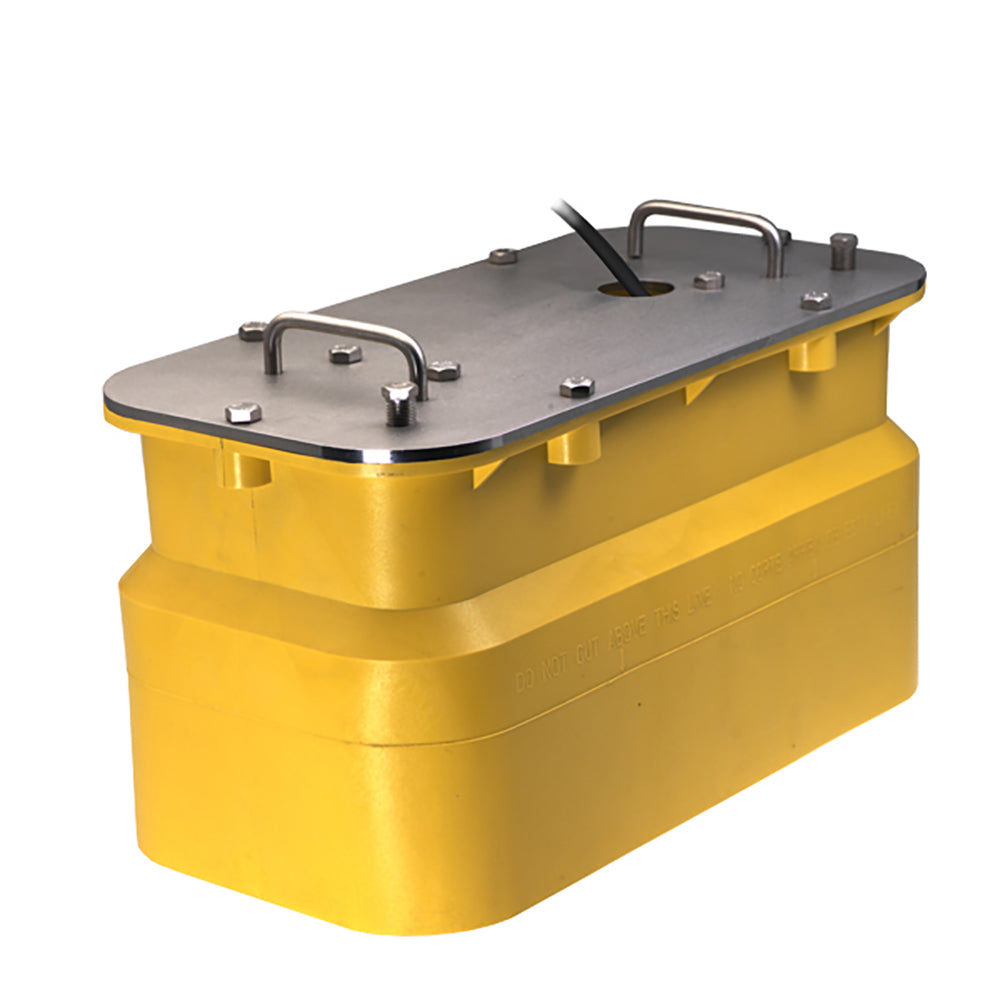

Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector

No reviews yet Write a Review
$7,128.85
SKU:
R599C-LH
UPC:
R599C-LH
Condition:
New
5 customers are viewing this product

Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector

$7,128.85

Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector Product Description

3 kW

The R599LH is the go-to transducer for today's top captains who want the maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse shows extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R599LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beam, delivering amazing target resolution and bottom detail.

The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The R599LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or multi-hull boats.



Low/High Frequency - In-Hull Chirp Transducer without Connector

Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000') with 5 to 10 times greater detail and resolution so precise it_s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 112 kHz of total bandwidth in just one installation, saving customers time and money.

As the ELITE model in the Chirp In-Hull product line, the R599 LH Chirps across the following bandwidths:

LH Model - Low Frequency 28-60 kHz/High Frequency 130-210 kHz

Features:

  • Depth only
  • Low-CHIRPS from 28 kHz to 60 kHz 23° to 9° beamwidth
  • High-CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth
  • 112 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 28, 38, 50, and 200 kHz plus everything else in the bandwidth
  • Fishing Profile: Recreational and commercial inshore and offshore fishing (deep-water canyon and sea-mount tracking)
  • Epoxy transducer housing
  • Hull Type: Solid fiberglass only

Specifications:

  • Hull Deadrise: 0° to 22°
  • Acoustic Window: Epoxy/urethane
  • All mounting hardware provided, including tank
  • Weight: 19.7 kg (43.4 lb)


The W is housed in a flush bronze shell without a fairing. The shell protrudes less than 1/4 inch to the outside of the hull and can be placed on the wheel/baggage rack of the trailer without damage. - This ...



Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector

Airmar?
How to describe Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector package dimensions and weight?
Is this product single or dual frequency?
How to mount or what is the mounting style of Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector?
What is the length of cable?
What is the connector type of the product?
What is the common use place of the product?
What is the display connector of the product?
What is the housing material of the product?
What is the max depth of the product?
What is the deadrise range of product?
What is the low frequency beamwidth of the product?
What is the low frequency level of the product?
What is the high frequency level of the product?
What is the high frequency beamwidth of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the max deadrise angle of the product?
What is the max deadrise of the product?
What is the manufacturer notes about Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector?

Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector?

3 kW

The R599LH is the go-to transducer for today's top captains who want the maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse shows extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R599LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beam, delivering amazing target resolution and bottom detail.

The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The R599LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or multi-hull boats.

What is the power rating of the product?

2-3 kW

What is the transducer functions of the product?

Depth

In which country this product made in?

USA

What is the frequency band of the product?

Low-High

What's the Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector package dimensions and weight?

14 (w) X 17 (h) X 27 (l) inches and the weight is: 56.8 lb.

Is this product single or dual frequency?

CHIRP-Ready Dual-Band

How to mount or what is the mounting style of Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector?

In-Hull

What is the length of cable?

15 m (49')

What is the connector type of the product?

Bare Wire

What is the common use place of the product?

Fishing, Commercial Fishing

What is the display connector of the product?

0

What is the housing material of the product?

Urethane

What is the max depth of the product?

Low frequency- 3048 m (10000'), High frequency- 457 m (1500')

What is the deadrise range of product?

0° to 22°

What is the low frequency beamwidth of the product?

11°x23°-5°x9°

What is the low frequency level of the product?

28-60 kHz

What is the high frequency level of the product?

130-210 kHz

What is the high frequency beamwidth of the product?

8°-4°

This product has tilted element?

No

Which hull material is proper for this product?

Solid fiberglass only

What is the max deadrise angle of the product?

22°

What is the max deadrise of the product?

Up to 22° (short side), up to 12° (long side)

What is the manufacturer notes about Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector?

3 kW

The R599LH is the go-to transducer for today's top captains who want the maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse shows extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R599LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beam, delivering amazing target resolution and bottom detail.

The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The R599LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or multi-hull boats.



Buy with the best price Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector for only $6199 from NVN Marine! Same day fast and free shipping before 3pm.

Airmar 599 Low/High Frequency - In-Hull Chirp Transducer w/o Connector Technical Specifications

Type:

Marine Navigation & Instruments | Transducers

Vendor:

Airmar

Weight:

56.4 lb

Mounting Style:

In-Hull

User Guide:

Download PDF

Product Manual:

Download PDF

Product Brochure:

Download PDF

Product Installation:

Download PDF
