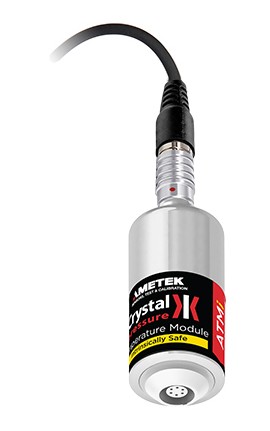

AMETEK Crystal ATMi Intrinsically Safe Temperature Module with PT100, 9.84' cable
SKU: ATMI-T-3M
$1,643.77
Availability: 2 to 3 Weeks Crystal Pressure ATMI-T-3M Offers Allows the flexibility to read pressure with ambient and process temperature in the same instrument. Features Accuracy to 0.015% of reading Temperature compensated from -4 to 122°F (-20 to 50°C) Connects with temperature sensors Rugged machined stainless steel housing Self-contained, intelligent modules Calibrate with confidence anywhere Combine with our ready to go pump syst
Secure Checkout
Fast Shipping
Authorized Dealer
Availability: 2 to 3 Weeks
Crystal Pressure ATMI-T-3M Offers
Allows the flexibility to read pressure with ambient and process temperature in the same instrument.
Features
- Accuracy to 0.015% of reading
- Temperature compensated from -4 to 122°F (-20 to 50°C)
- Connects with temperature sensors
- Rugged machined stainless steel housing
- Self-contained, intelligent modules
- Calibrate with confidence anywhere
- Combine with our ready to go pump systems
Applications
- Pressure and temperature calibration
Crystal Pressure ATMI-T-3M Specifications
| Accuracy | ±(0.015% of rdg) + 0.02 Ohm |
| Temperature Resolution | 0.01 |
| Interface Cable Length | 10'/3 m |
| Temperature | Operating: -4 to 122°F (-20 to 50°C) Storage: -40 to 167°F (40 to 75°C) |
| Probe | Accuracy: 0.02°F (0.01°C) Temperature Range: -58 to 302°F (-40 to 150°C) |
| Enclosure Dimensions | 2.5 x 1.1" (63.3 x 27.0 mm) |
| Weight | 0.31 lbs (141.0 g) |
Click here for complete specifications on the Crystal Pressure ATMI-T-3M
