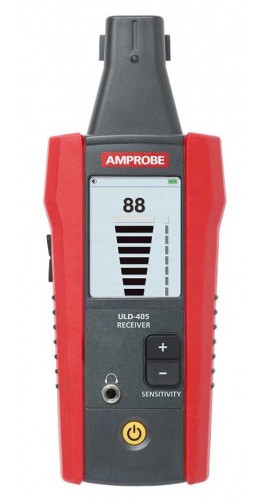

Amprobe ULD-405 Ultrasonic Leak Detector, 20 to 90 kHz
SKU: ULD-405
Availability: 1 in Stock Amprobe ULD-405 Offers Find costly leaks in active compressed air systems Easy inspection and troubleshooting, the ultrasonic leak detector hears what you cannot. When equipment begins to fail due to an air leak or vibration, the leakage point emits an ultrasonic sound wave that is above the natural range of human hearing. This is where the detector comes in handy, for it allows you to pinpoint the exact location of
Availability: 1 in Stock
Amprobe ULD-405 Offers
Find costly leaks in active compressed air systems
Easy inspection and troubleshooting, the ultrasonic leak detector hears what you cannot. When equipment begins to fail due to an air leak or vibration, the leakage point emits an ultrasonic sound wave that is above the natural range of human hearing. This is where the detector comes in handy, for it allows you to pinpoint the exact location of the equipment failure, as well as let you see the strength of the leak clearly on the large LCD bar graph.
Features
- 2.5" LCD display with bar graph
- 20 to 90 kHz frequency range: optimal range for detecting a variety of leakage events
- Adjustable receiver sensitivity for accurate leak pinpointing
- Parabola accessory directs the ultrasound towards the sensor
- Detachable tubular extension provides additional reach in hard to reach areas
Applications
- Compressed air or other gases
- Plumbing
- Electrical and mechanical systems
- Valves, tanks and pipes
- Heat exchangers, boilers and condensers
- Air conditioning and refrigeration systems
- Motors and machinery
- Automotive repair
Amprobe ULD-405 Specifications
Specifications
| Frequency Range | 20 to 90 kHz |
| Sensitivity Adjustment | 8 levels |
| Display | Size: LCD 2.5" (6.35 cm)Dimensions: 1.45 x 1.93" (36.72 x 48.96 mm)Resolution: 240 (RGB) x 320 pixelsType: TFT-LCD (262 K)Color: True, 16bit/color |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Operating Humidity | <80% RH |
| Power Supply | 4 x 1.5 V AA (LR6) alkaline batteries |
| Power Consumption (Typical) | 75 mA |
| Battery Life (Typical) | 105 hours (Alkaline) |
| Automatic Power Off | 60 minutes when in idle |
| Low Battery Indication | Yes |
| Pollution Degree | 2 |
| Protection | IP40 |
| Certifications | CE |
| Electromagnetic Compatibility (EMC) | EN 61326-1 |
| Dimensions | 7.55 x 2.98 x 1.79" (183 x 75 x 43 mm) |
| Weight | Approximately 0.52 lbs (0.235 kg) |
What's included with the Amprobe ULD-405
- Receiver
- Power Parabola
- Flexible Tubing Adapter
- Tubular Extension
- Earbuds
- Soft Carrying Case
- 4 x AA Batteries
- User Manual
Amprobe ULD-405 Ultrasonic Leak Detector, 20 to 90 kHz. Great savings PLUS Free Shipping when you buy now from EquipTestPro.com. In stock, fast shipping!
