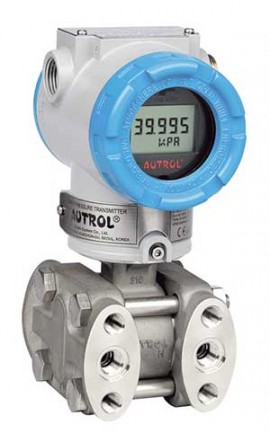

Autrol 3100-DX Differential Pressure Transmitter, static pressure 13.79 MPa/2000 psi, 0.15 to 7.5 Kpa

Availability: 4 Days

Autrol APT3100D3-M11-F1-1-S-1-M1 Offers

Features

• High reference accuracy: ±0.075% of calibrated span (specially ±0.04%)
• Long-term stability
• High rangeability (100 : 1)
• Flexibility
• Data configuration with HART configurator
• Zero point adjustment
• Reliability
• Continuous self-diagnostic function
• Automatic ambient temperature compensation
• Fail-mode process function
• EEPROM write protection
• CE EMC conformity standards

Applications

• Pressure
• Flow
• Level measurement for oil and gas
• Liquid
• Water
• Maine and offshore
• Vessel
• Power
• Chemical plants

Autrol APT3100D3-M11-F1-1-S-1-M1 Specifications

Specifications

Calibrated Span	0.15 to 7.5
Power Supply & Load Requirement	250 to 550 Ω at 24 Vdc, Loop Powered
Process Temperature Limits	-104 to 24°F (-40 to 120°C)
Mounting Flange/Material	Body: 316 SSTVent Plug: 316 SSTDiaphragm: 316L SST
Hazardous Location Certifications	FM and FM Canada Explosion Proof
Fill Fluid	Silicone (DC200)
Process Connection	¼ - 18 NPT (Standard)
Electrical Connection	½ - 14 NPT eoxy-polyester painted aluminum
Option	LCD indicator (5 digits)
Weight	8.6 lbs (3.9 kg)

What's included with the Autrol APT3100D3-M11-F1-1-S-1-M1

• Autrol 3100-DX Differential Pressure Transmitter, static pressure 13.79 MPa/2000 psi, 0.15 to 7.5 Kpa
