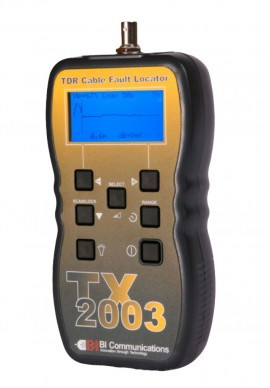

BI Communications TX2003 Handheld TDR Cable Fault Tester
SKU: TX2003
Availability: 2 to 3 Weeks BI Communications TX2003 Offers Features 0.5mtr dead Zone Selectable Cable Impedance Warble Tone Generator Rapid Fault Location Large 128×64 LCD with Backlight Scratch Resistant Display Environmental Protection IP54 CE Approved 60 Hours Battery Life Easy to Use Includes Soft bag and Test Leads BI Communications TX2003 Specifications Specifications Ranges at Vp=70% 7, 15, 30, 60, 120, 250, 500, 1km, 2km, 3km, 6km Feet
Availability: 2 to 3 Weeks
BI Communications TX2003 Offers
Features
- 0.5mtr dead Zone
- Selectable Cable Impedance
- Warble Tone Generator
- Rapid Fault Location
- Large 128x64 LCD with Backlight
- Scratch Resistant Display
- Environmental Protection IP54
- CE Approved
- 60 Hours Battery Life
- Easy to Use
- Includes
- Soft bag and Test Leads
BI Communications TX2003 Specifications
Specifications
| Ranges at Vp=70% | 7, 15, 30, 60, 120, 250, 500, 1km, 2km, 3km, 6km |
| Feet | 23, 49, 98, 197, 394, 820, 1640, 3280, 6560, 9850, 19000 |
| Range Selection | Manual range control |
| Backlit display | 128 x 64 pixel |
| Resolution | Approximately 1% of range |
| Sensitivity | min. 3 pixel return at 4 km |
| Velocity Factor | Adjustable from 1% to 99% |
| Output Pulse | 5v p-p into open circuit |
| Output Impedance | Selectable 25, 50, 75 and 100 ohms |
| Output Pulse Width | 3ns min. 3MS, AUTORANGE |
| Scan Rate | 2 scans/second or scan held |
| Tone Generator | Oscillating 810 to 1110 Hz |
| Power | 6v 4 x AA cells |
| Battery Life | 60 hours continuous scanning |
| Power Down | Selectable 1,2,3,5 mins or disabled |
| Voltage detection | 240 volts AC |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 70°C |
| Safety | IEC61010-1 EN60950 |
| EMC | BS/EN61326-1 |
| CE Compliance | To EU directives |
| Water/Dust Proof | IP54 |
| Warranty | 3 years |
| Dimensions (mm) | 165 x 90 x 37 |
| Weight | 350 g (12 oz) |
What's included with the BI Communications TX2003
- BI Communications TX2003 Handheld TDR Cable Fault Tester
