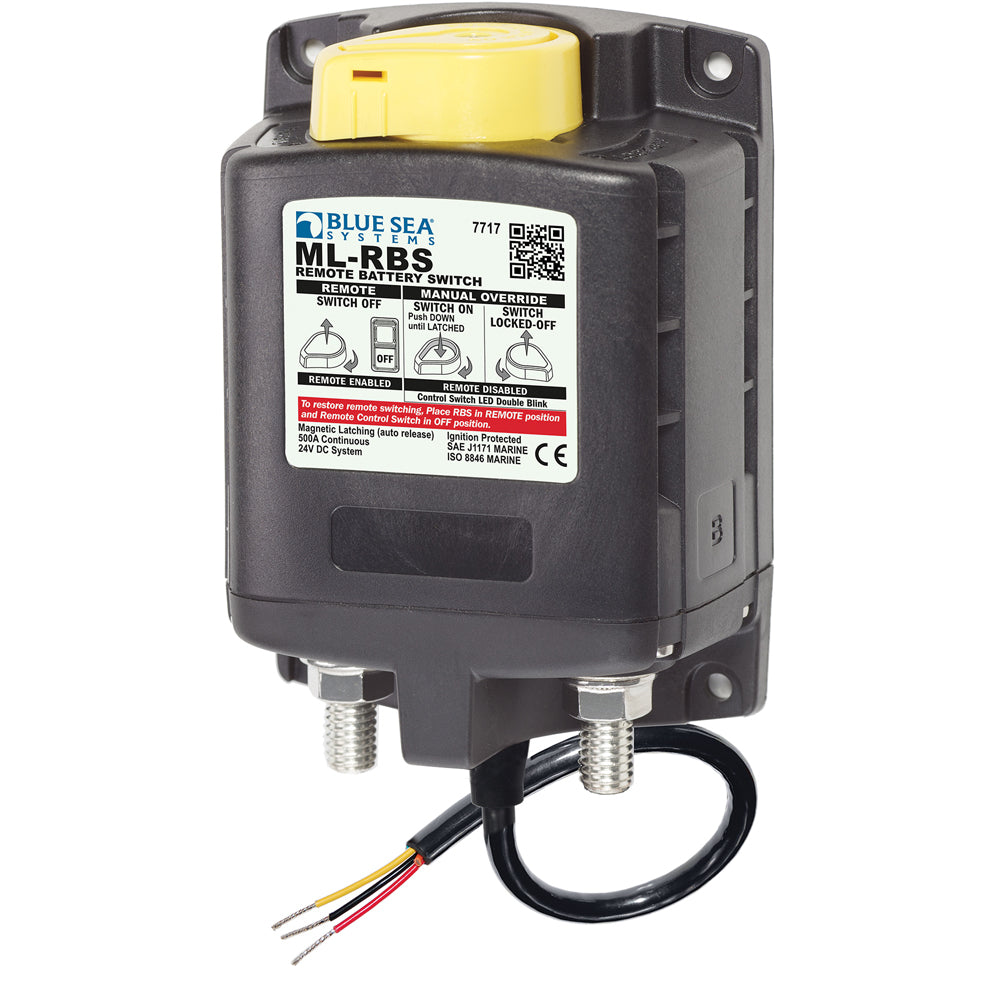

Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V

No reviews yet Write a Review
$197.44
SKU:
7717
UPC:
632085077143
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V

$197.44

Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V Product Description

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500 Ampere switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired.

Blue Sea 7717BSS Attributes

  • Type: Push/ Pull
  • Activation Type: Manual
  • Continuous Ampere Rating (A): 500 Amp
  • Surge Ampere Rating (A): 700 Amp
  • Installation Type: Bolt-On

Blue Sea 7717BSS Features & Benefits

  • Manual Override Knob Provides An Added Level Of Safety Allowing Control With Or Without Power And Offering LOCKED OFF Capability For Servicing
  • LED Output To Remotely Indicate Switch State
  • Silver Alloy Contacts Provides High Reliability For Switching Live Loads
  • 3/8 Inch -16 Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
  • 7/8 Inch Stud Length Accepts Multiple Cable Terminals
  • Label Recesses For Circuit Identification
  • No Supplier Warranty

Blue Sea 7717BSS Installation Instructions

  • 990180170-006.pdf

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V

  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/ 8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads


Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:24V DC
Manual Control: Yes
Coil Function: Auto releasing
Mounting: #10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state: <4A (40 ms)
Control Circuit Voltage: 20.2 to 32.9V DC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 50° C
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A @ 12V DC 10,000 Cycles
Master Control Switch Capability: Yes
Mechanical Endurance: 100,000 Cycles
Switching Cycles: 100000
Terminal Ring Diameter Clearance: 1.18" (29.97mm)
Terminal Stud Length: 0.875" (22.23mm)
Terminal Stud Size: 3/8-16 (M10)
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Weight: 1.75lb (0.79 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



The ML-RBS remote battery switch with manual control and automatic release function-24V manual control button provides a higher security level, allows control in the case of power-on or power-off, and provides...

Ancor Red 1 AWG Battery Cable - Sold By The Foot
Ancor Red 1/0 AWG Battery Cable - Sold By The Foot
Ancor Red 2/0 AWG Battery Cable - Sold By The Foot
Ancor Heavy Duty Lugs - 1 Gauge Wire - 3/8" Post - 2-Pack
Ancor Heavy Duty Lugs - 1/0 Gauge Wire - 3/8" Post - 2-Pack
Ancor Heavy Duty Lugs - 2/0 Gauge Wire - 3/8" Post - 2-Pack
Ancor Red 3/0 AWG Battery Cable - Sold By The Foot
Ancor Red 4/0 AWG Battery Cable - Sold By The Foot
Ancor Heavy Duty Lugs - 3/0 Gauge Wire - 3/8" Post - 2-Pack
Ancor Heavy Duty Lugs - 4/0 Gauge Wire - 3/8" Post - 2-Pack


Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V

Blue Sea Systems
How to describe Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V
What is the type of the product
Product lockable

Blue Sea Systems

Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

How to describe Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V

The ML-RBS remote battery switch with manual control and automatic release function-24V manual control button provides a higher security level, allows control in the case of power-on or power-off, and provides...

What is the type of the product

Push/ Pull

Product lockable

Yes


Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V Technical Specifications

Type:

Electrical | Battery Management

Vendor:

Blue Sea Systems

Weight:

2.2 lb

Lockable:

Yes

Continuous Amperage:

500a

Product Manual:

Download PDF

Product Brochure:

Download PDF
