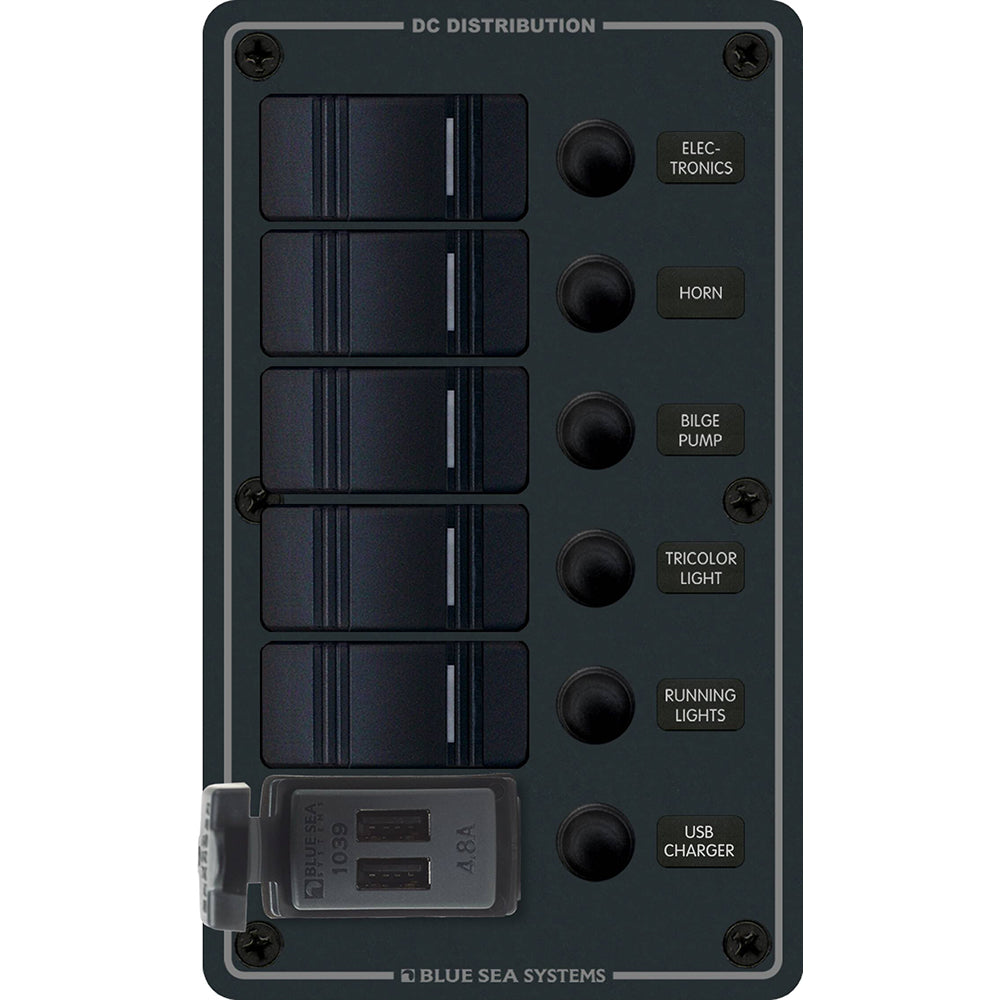

Blue Sea 8521 - 5 Position Contura Switch Panel w/Dual USB Chargers - 12/24V DC - Black

Availability: In Stock

8521 - 5 Position Contura Switch Panel with Dual USB Chargers - 12/24V DC - Black

Designed for open-cockpit and flybridge applications using switches to complement existing controls commonly used on many boats.

Features:

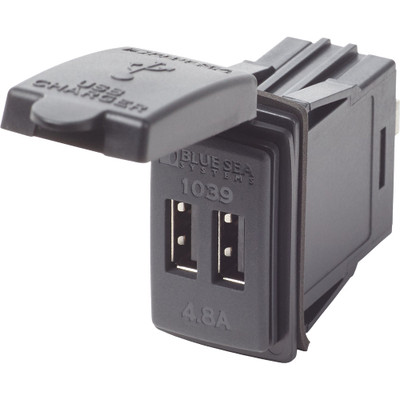

• Includes 12/24V DC, 4.8A Dual USB chargers with intelligent device recognition that maximizes charge rate
• Designed for 12 or 24V DC systems
• Watertight mounting gasket
• ON indicating LEDs embedded in all switches

Technical Specifications:

• Nominal Voltage - 12/24V DC
• Operating Current - 18mA per switch
• Switch Rating - 20A@12V and 15A@24V DC
• USB - 12/24V Dual USB Charger 4.8A
• Dimensions (H x W x D) - 7.5" x 4.5" x 3.25" (190.5 x 133.35 x 76.2mm)

In the Box:

• 8521 Panel
• Labels
• Mounting hardware

*Sold as Individual

Specifications

Manufacturer Part Number	8521
UPC	632085085216
Shipping Weight	1.4 lb

For current availability, ordering support, and product assistance, visit EquipTestPro.com.

Product Documents

• Installation Guide
