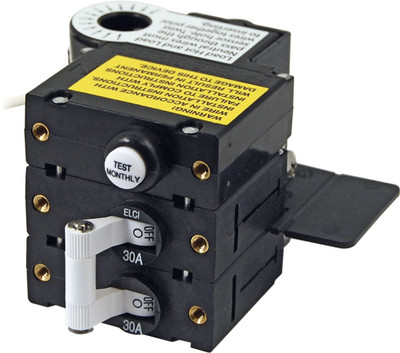

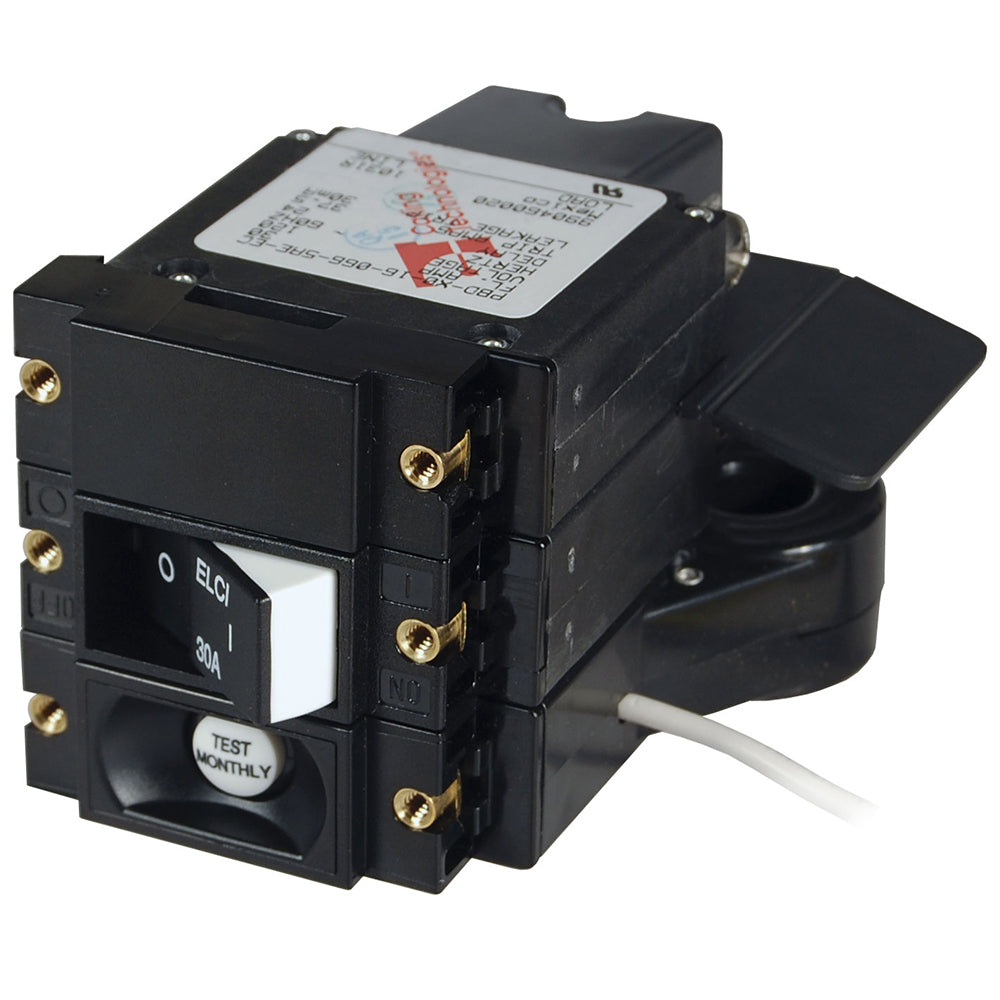

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker

Availability: In Stock

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker

Features:

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground
• Front panel mount—installed in a power distribution panel

Specifications:

• Amperage: 30A
• Actuator Style: Flat Rocker
• Poles: 2
• Ignition Protected: Yes
• Max Voltage: 240VAC/120VAC per pole
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Max Operating Temperature: 65 degrees C
• Leakage Trip Amps: 30mA

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications

Manufacturer Part Number	3102100
UPC	632085310219
Shipping Weight	0.8 lb

For current availability, ordering support, and product assistance, visit EquipTestPro.com.

Product Documents

• Installation Guide
