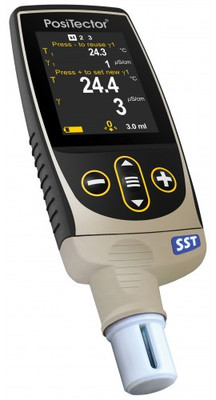

DeFelsko SSTKITPF3 PosiTector Advanced Soluble Salt Tester Kit

Availability: 2 to 3 Weeks

DeFelsko SSTKITPF3 Offers

Features

Fea

Simple

• Conductivity probe specifically designed for ISO 8502-6,9
• Displays test duration, sample temperature, conductivity (μS/cm) and surface density (mg/m2 or μg/cm2)
• On-screen interface guides users through the Bresle test method
• Automatic storage of a background (blank) measurement-handy when performing multiple tests
• Large 2.8” impact resistant color touchscreen with keypad for quick menu navigation
• On-gauge help explains menu items at the touch of a button

Accurate

• Automatic temperature normalization and sample temperature reporting
• Conforms to national and international standards including ISO, NACE, SSPC, IMO, and US Navy

Powerful

• Track and record test duration in accordance with ISO 8502-6
• Screen capture - save 100 screen images for record keeping and review
• USB port for fast, simple connection to a PC and to supply continuous power
• PosiSoft USB drive-stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required
• Storage of 1000 readings per probe - stored readings can be viewed or downloaded

Durable

• Weatherproof, dust-proof, and water-resistant - IP65-rated enclosure
• Ergonomic design with durable rubberized grip

Versatile

• PosiTector body accepts all PosiTector SST, 6000, 200, DPM, IRT, RTR, SPG, SHD, BHI, and UTG probes easily converting from a soluble salt tester to a coating thickness gauge, dew point meter, surface profile gauge, hardness tester, or ultrasonic wall thickness gauge
• Adjustable for various patch volumes
• Selectable display languages

Includes all of these, PLUS:

• Storage of 250,000 readings from multiple probes in up to 1000 batches and sub-batches
• Touchscreen keyboard for quickly renaming batches, adding notes, and more
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector app or optional portable printer

Applications

App

• Determination of water-soluble contaminants in non-metallic blast media

USB keyboard mode

USB Keyboard mode enables PosiTector Advanced instruments to emulate a USB keyboard when connected to a computer.

USB Keyboard mode communicates with your computer by emulating keyboard keystrokes. When connected in this mode, PosiTector Advanced instruments will be recognized as a simple USB keyboard. Each reading is ‘typed’, followed by a carriage return (enter). This provides a simple way to capture readings as they are taken without any special software, drivers or complex setup.

WiFi streaming

Built into the PosiTector Advanced gauge is the ability to stream readings over WiFi. If WiFi Streaming is enabled in the WiFi menu, the gauge will send a GET request to specified URL for each reading. The URL can contain tags which are replaced by the PosiTector with values corresponding to the reading. This solution turns the PosiTector gauge body into an Internet of Things device and is ideal for users with an existing WiFi network and a desire to stream live readings to a central application or database.

How to use WiFi Streaming

• Connect the PosiTector to a WiFi network
• Navigate to http://:8080/stream_url.php on a device connected to the same network. Replace with the IP of the PosiTector found in the Connect menu. This page contains a text area where a URL can be entered as well as instructions on how to format the URL and what optional tags are available.
• As readings are taken the gauge will send GET requests to the URL entered.

USB serial streaming

PosiTector Advanced allows live streaming of measurement values to a USB connected computer.

Any software that accepts data via a serial interface can be configured to accept the PosiTector data stream.

The PosiTector creates a virtual ‘serial’ port, a protocol commonly used by applications to communicate with external tools and devices. PosiTector measurements can be captured as they are taken in real-time, including metadata such as the units and measurement type.

Any serial-compatible software can be configured to accept the PosiTector data stream. Proficient (by InfinityQS) and WinSPC (by DataNet systems) are two popular statistical process control (SPC) software options.

This solution is ideal for users who want the reliability and simplicity of a wired connection.

Proficient

WinSPC

WiFi server mode

WiFi wireless technology is included with all PosiTector Advanced models Automatic Adhesion Testers with touchscreen display.

Any device connected on the same WiFi network can wirelessly access the gauge's stored measurement data to:

• Viewed stored measurements using a standard web browser
• Access HTML, comma delimited text (.txt) and JSON schema files - parse information for inclusion in databases or custom software applications
• Remotely control gauge memory features such as creating a new batch, closing a batch and deleting all measurement data
• Remotely view the live display of a working instrument - see the gauge display as if it were in your hand

This solution is ideal for users who want to store readings in the PosiTector gauge body to be transferred to another device at a later date.

Download the App

DeFelsko SSTKITPF3 Specifications

Specifications

PosiPatch Specifications
Test	Area: 1250 mm2Volume: 2.5 to 3 ml
Diameter	Patch: 1.75" (44.4 mm)Magnetic Ring: 2.6" (66.9 mm)
Background Contamination	< 3 mg/m2
Soluble Salt Tester Specifications
Range	0 to 500 μS/cm, 0 to 2000 mg/m2, 0.0 to 200.0 μg/cm2
Resolution	1 μS/cm, 1 mg/m2, 0.1μg/cm2
Accuracy	±2 μS/cm (0 to 200 μS/cm)±10 μS/cm (>200 to 500 μS/cm)±20 μS/cm (>600 to 1500 μS/cm)
Temperature Range	32 to 122°F (0 to 50°C)
Normalization Temperature	77°F (25°C)
Test Cell Volume	1 ml
Dimensions	5 x 2.6 x 1" (127 x 66 x 25.4 mm)
Weight	4.9 oz (137 g)

What's included with the DeFelsko SSTKITPF3

• PosiTector Advanced Soluble Salt Tester
• Long Form Certificate of Calibration Traceable to NIST
• 5 x PosiPatch
• Flexible Magnetic Ring
• 2 x Syringe and Needle
• 250 ml DI Water
• 5 x Cups
• Certified Conductivity Standard
• Protective Rubber Holster
• 5 x Foam Swabs
• Wrist Strap
• Protective Lens Shield
• USB Cable
• Hard-Shell Carrying Case
• 3 x AAA Alkaline Batteries
• User's Manual
• PosiSoft Software
• Two-Year Warranty
