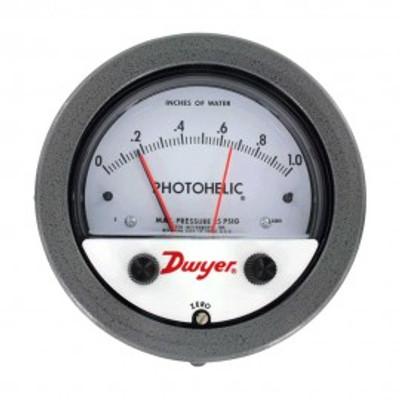

Dwyer A3050 Photohelic Pressure Switch/Gauge (0-50"w.c.)

No reviews yet Write a Review
$1,191.38
SKU:
A3050
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Dwyer A3050 Photohelic Pressure Switch/Gauge (0-50"w.c.)

$1,191.38

Dwyer A3050

Features

  • Bezel and front cover (with set point knobs and zero adjustment screw) removed to expose Photohelic® switch/gage set point mechanism (cover is clear polycarbonate plastic)
  • Gauge pointer and light shutter are mounted on helix and balancing counterweight
  • Shutter passes through slot in optical limit switch to expose phototransistors to integral infrared light source or mask them depending on applied pressure
  • Light shield effectively protects phototransistors from strong outside light sources yet allows free pointer movement; it also gives interior a clean "finished" look
  • Optical limit switches are used for reliability and long service life. Attached directly to set pointers, they are individually aligned to assure precise switching accuracy
  • Semi-flexible drive shaft connects to set point knobs
  • Zero adjustment screw connects to screw in cover to adjust zero pressure reading
  • Plastic enclosure protects electronic components and electrical connections
  • Polycarbonate connection or terminal board is self-extinguishing
  • Glass epoxy printed circuit boards for durability and permanence
  • Load relays are DPDT with latching feature for maximum application versatility
  • Electronics are designed to operate on 50/60 Hz, 120 volt current with 10% over or under voltage
  • Switch set pointers show switch settings at all times
  • Spring loaded friction clutch prevents operator damage of set point mechanism
  • 3-in-1 instrument allows the reduction of several instruments with one product
  • Unique design and 1% full scale dead band provides quick response to pressure changes means no delay in switching and chatter-free operation
Applications
  • Air conditioner systems
  • Clean rooms
  • Fume exhaust systems

Dwyer A3050 Specifications

Switch Specifications
Switch Type Each set point has 2 Form C relays (DPDT)
Repeatability ±1% of FS
Electrical Rating 10 A at 28 VDC
10 A at 120
240 VAC
Electrical Connections Screw terminals. Use 167°F (75°C) copper conductors only
Power Requirements 120 VAC, 50/60 Hz
240 VAC and 24 VAC power optional
Mounting Orientation Diaphragm in vertical position. Consult factory for other position orientations
Set Point Adjustment Adjustable knobs on face
Agency Approvals CE, CSA, UL
Gauge Specifications
Service Air and non-combustible, compatible gases
Accuracy ±2% of FS at 70°F (21.1°C)
±3% on -0
±4% on -00 models
Pressure Limits -20" Hg to 25 psig (-0.677 to 1.72 bar)
MP option; 35 psig (2.41 bar)
HP option; 80 psig (5.52 bar)
Temperature Limits 20 to 120°F. (-6.67 to 48.9°C)
-20 to 120°F (-28 to 48.9°C) with low temperature option
Process Connections ? female NPT
Dimensions 4" (101.6 mm) dial face
5 x 8¼" (127 x 209.55 mm)
Weight 4 lb (1.81 kg)
