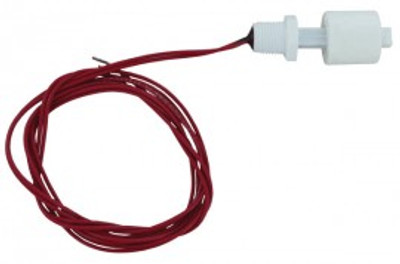

Dwyer F7-SB Vertical Mount Level Switch with Polypropylene/Epoxy Float & 316SS Stem

Availability: 5 Days

Dwyer F7-SB Offers

Features

• Electrical rating 20 VA: 0.08A @ 240 VAC, 22 AWG 11.8" (30 cm) wire leads
• 1/8" male NPT mounting
• Weight 1.59 oz (45 g)
• Hermetically sealed reed switches are actuated by magnets permanently bonded inside the float and can be easily adapted to open or close a circuit on rising or falling levels
• Shipped with normally open switch contacts which close as the float rises toward the mounting threads
• Reverse switch action by removing the float, rotating it end-for-end and replacing it on the stem
• Mount internally, oriented within 30° of vertical, or select optional fittings for external mounting
• Switch ratings are suitable for many solid state control systems and monitors or alarms
• Simple relay interfaces can be used for higher current applications

What's included with the Dwyer F7-SB

• Dwyer F7-SB Vertical Mount Level Switch with Polypropylene/Epoxy Float & 316SS Stem
