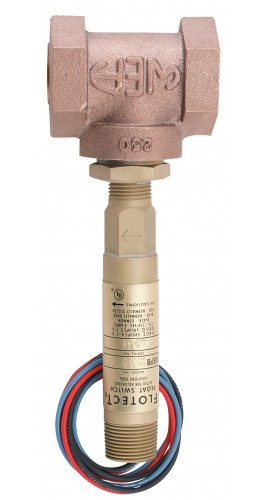

Dwyer L6EPB-B-S-3-H Liquid Level Switch, Brass Housing, 304 SS Float

Availability: 3 to 4 Weeks

Dwyer L6EPB-B-S-3-H Offers

Features

• Compact design is built for years of trouble-free service
• Simple and dependable operation with no mechanical linkage
• Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
• Leak proof lower body machined from bar stock
• Direct tee mounting to act as an external float chamber
• Weatherproof and explosion-proof body for demanding outdoor applications
• Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
• Sensitive to level changes of less than 1/2" (12 mm)

Applications

• Direct pump control for maintaining level
• Automatic tank dump operations
• Level control
• Valve control
• Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/wastewater treatment processes

Specifications

• Service: Liquids compatible with wetted materials
• Temperature Limits: -4 to 220°F (-20 to 105°C) standard, MT high temperature option 400°F (205°C), (MT option not UL, CSA or ATEX). ATEX compliant AT option ambient temperature: -4 to 167°F (-20 to 75°C) process temperature: -4 to 220°F (-20 to 105°C)
• Pressure Limits: See Datasheet
• Enclosure Rating: Weatherproof and explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on stainless steel body models only.) ATEX CE 0344 EX II 2 G EEx d IIC T6 Process Temp ≤75°C. EC-Type Certificate No: KEMA 04ATEX2128
• Electrical Connections: UL models: 18 AWG, 18" (460 mm) long. CSA and ATEX models: terminal block
• Upper Body: Brass or 303 SS
• Conduit Connection: 3/4" male NPT standard, 3/4" female NPT on junction box models
• Process Connection: 1" male NPT on models without external float chamber, 1" female NPT on models with external float chamber
• Mounting Orientation: Horizontal with index arrow pointing down
• Weight: Approximately 1 lb (.5 kg) without external float chamber, 1.75 lb (.8 kg) with external float chamber
• Specific Gravity: See Datasheet
• Agency Approvals: ATEX, CE, CSA, IECEx, UL

Dwyer L6EPB-B-S-3-H Specifications

Specifications

Service	Liquids compatible with wetted materials
Wetted Materials	Float: 304 SSLower Body: BrassMagnet: CeramicExternal Float Chamber (Tee): Brass
Temperature Limit	-4 to 220°F (-20 to 105°C)
Pressure Limits	Maximum pressure 250 psig (17.2 bar)
Enclosure Rating	Weatherproof and explosion-proofListed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G
Switch Type	SPDT snap switch
Electrical Rating	5 A at 125/250 VAC (V~)
Electrical Connections	18 AWG, 18" (460 mm) long
Upper Body	Brass
Conduit Connection	3/4" male NPT
Process Connection	1" female NPT
Mounting Orientation	Horizontal with index arrow pointing down
Specific Gravity	Minimum 0.7
Weight	Approximately 1.75 lb (.8 kg)

What's included with the Dwyer L6EPB-B-S-3-H

• Dwyer L6EPB-B-S-3-H Liquid Level Switch, Brass Housing, 304 SS Float
