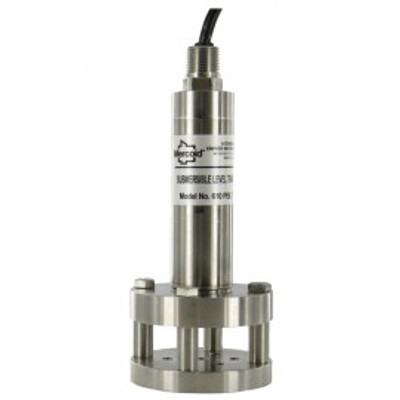

Dwyer PBLTX-10-40 Level Transmitter, ETFE, 40", 10Psi, Submersible, IS
SKU: PBLTX-10-40
Availability: 4 to 5 Weeks Dwyer PBLTX-10-40 Offers Features Maintenance free vent filter Large diameter, non-clogging, damage resistant, 316SS diaphragm seal Units come equipped with a 270-pound tensile strength shielded and vented cable Applications Wastewater Sludge pits, clarifiers, digesters Alum tanks Chemical storage tanks Oil tanks Lime slurry Sumps Reservoirs Dwyer PBLTX-10-40 Specifications Specifications Service Compatible liquids W
Availability: 4 to 5 Weeks
Dwyer PBLTX-10-40 Offers
Features
- Maintenance free vent filter
- Large diameter, non-clogging, damage resistant, 316SS diaphragm seal
- Units come equipped with a 270-pound tensile strength shielded and vented cable
Applications
- Wastewater
- Sludge pits, clarifiers, digesters
- Alum tanks
- Chemical storage tanks
- Oil tanks
- Lime slurry
- Sumps
- Reservoirs
Dwyer PBLTX-10-40 Specifications
Specifications
| Service | Compatible liquids |
| Wetted Materials | 316 SS, 316L SS, Buna-N, cable: ETFE or polyurethane |
| Accuracy | ±0.25% full scale (includes linearity, hysteresis, and repeatability) |
| Temperature Limit | 0 to 200°F (-18 to 93°C) |
| Compensated Temperature Range | PBLT2: 0 to 180°F (-18 to 82°C), PBLTX: 0 to 176°F (-18 to 80°C) |
| Thermal Effect | ±0.02% FS/°F |
| Pressure Limit | 2X full scale |
| Power Requirement | 13 to 30 VDC |
| Output Signal | 4 to 20 mA DC, two wire |
| Response Time | 50 msec |
| Loop Resistance | 900 ohms |
| Electrical Connection | Wire pigtail |
| Mounting Orientation | Suspended in tank below level being measured |
| Weight | 4.3 lb (2.0 kg) |
| Electrical Protection | Lightning and surge protection |
| Agency Approvals | None |
What's included with the Dwyer PBLTX-10-40
- Dwyer PBLTX-10-40 Level Transmitter, ETFE, 40", 10Psi, Submersible, IS
Dwyer PBLTX-10-40 Level Transmitter, ETFE, 40", 10Psi, Submersible, IS. Great savings PLUS Free Shipping when you buy now from EquipTestPro.com.
