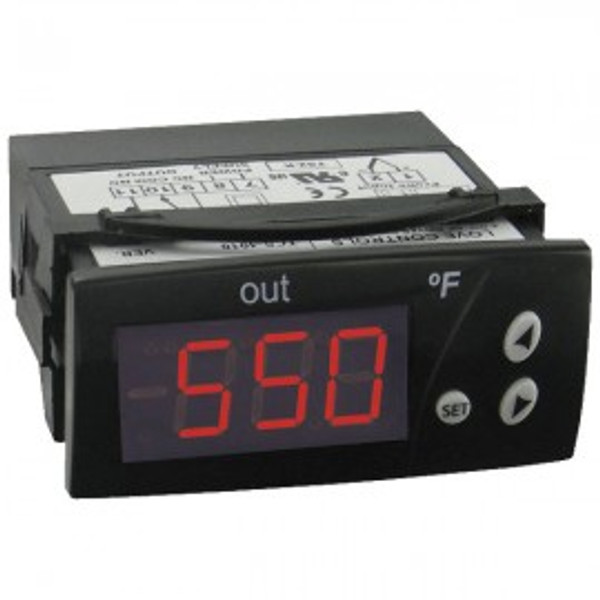

Dwyer TCS-4020 Temperature Switch, Type J/K, 230V, F
SKU: TCS-4020
Availability: 2 to 3 Weeks Dwyer TCS-4020 Offers User can define set point, heating/cooling regulation, cycle time, alarm configuration, load status, and ambient probe adjustment. The thermocouple switch Features password protection and error/alarm messaging. Temperature and output status is indicated on the bright red LED display. Use the configuration key (sold separately) to quickly program multiple units. Includes a fitting clip for panel
Availability: 2 to 3 Weeks
Dwyer TCS-4020 Offers
- User can define set point, heating/cooling regulation, cycle time, alarm configuration, load status, and ambient probe adjustment.
- The thermocouple switch Features password protection and error/alarm messaging.
- Temperature and output status is indicated on the bright red LED display.
- Use the configuration key (sold separately) to quickly program multiple units.
- Includes a fitting clip for panel mounting, gasket, rear terminal cover and instruction manual.
Specifications:
Probe Range: 0 to 700°C (32 to 999°F) for thermocouple J, 0 to 999°C (32 to 999°F) for thermocouple K, S Input: Type J, K or S thermocouple Output: 16A SPDT relay @ 250 VAC resistive .Horsepower Rating (HP): 1 HP Control Type: ON/OFF Power Requirements: 110 VAC, 230 VAC, 12 VAC/VDC, or 24 VAC/VDC(depending on model) Accuracy: ±1% FS Display: 3-digit, red, 1/2" (12.7 mm) digits, plus sign Resolution: 1° Memory Backup: Nonvolatile memory Temperature Limits: Ambient: 32 to 158°F (0 to 70°C) Storage Temperature: -4 to 176°F (-20 to 80°C) Weight: 2.3 oz (65 g) Front Panel Rating: IP64 Agency Approvals: CE, UL, ULC
Features
- User can define set point, heating/cooling regulation, cycle time, alarm configuration, load status, and ambient probe adjustment
- The thermocouple switch features password protection and error/alarm messaging
- Temperature and output status is indicated on the bright red LED display
- Use the configuration key (sold separately) to quickly program multiple units
- Includes a fitting clip for panel mounting, gasket, rear terminal cover and instruction manual
Applications
- Industrial chillers
- Environmental chambers
- Walk-ins and freezers
- Heat sealers
- Sterlizers
- Beer and wine chillers
- Mug frosters
- Coolers
- Display cases and cabinets
- Warmers
- Meat and produce storage
- Floral preservation
- Refrigerated transportation
- Laboratories
- Food service equipment
- Ovens and dryers
- Tobacco preservation
- Hot melt glue stitchers for case erectors
- Tool rooms
- Burn-in rooms and chambers
- Cold water citrus packing
What's included with the Dwyer TCS-4020
- Dwyer TCS-4020 Temperature Switch, Type J/K, 230V, F
Dwyer TCS-4020 Temperature Switch, Type J/K, 230V, F. Great savings and get fast delivery when you order online at EquipTestPro.com.
