Fixturlaser 1-0671 PAT2 Pulley Alignment Tool
SKU: 1-0671
$3,175.20
Availability: 2 to 3 Weeks FIXTURLASER 1-0671 Offers Features Measures vertical and horizontal angles, and offset simultaneously Measures distances from 6″ to 20′ Measures pulley diameters 3″ and larger No need to remove the belts Easy to use, no training required Fast, one person operation Sturdy extruded aluminum housing Recessed, stronger magnets FIXTURLASER 1-0671 Specifications Specifications Measuring Units Operating Temperature 32 to 10
Secure Checkout
Fast Shipping
Authorized Dealer
Availability: 2 to 3 Weeks
FIXTURLASER 1-0671 Offers
Features
- Measures vertical and horizontal angles, and offset simultaneously
- Measures distances from 6" to 20'
- Measures pulley diameters 3" and larger
- No need to remove the belts
- Easy to use, no training required
- Fast, one person operation
- Sturdy extruded aluminum housing
- Recessed, stronger magnets
FIXTURLASER 1-0671 Specifications
Specifications
| Measuring Units | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Laser | 630 to 680 nm class II diode laserLine Fan Angle: 90°Power: < 1 mW |
| Relative Humidity | 10 to 90% |
| Measurement | Distance: 1.97 to 236.22" (50 to 600 mm)Accuracy: Better than 0.02" (0.5 m) or 0.2 degees |
| Pulley | Diameter Range: From 2,95" (75 mm) and larger (standard)Belt Groove Width: 0.23 to 1.57" (6 to 40 mm) (standard) |
| Power Supply | 2 x LR03 (AAA) 1.5 V per unit |
| Operating Time | 20 hours of continuous operation |
| General Specifications | |
| Complete System Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Carrying Case | Drop Test: 10' (3 m) on to concrete floorDimensions: 9.84 x 7.09 x 3.15" (250 x 180 x 80 mm) |
| Weight | 3.3 lbs (1.5 kg) |

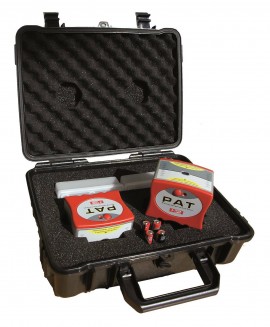

What's included with the FIXTURLASER 1-0671
- Pulley Alignment Tool
- 2 x Laser Hog Detectors
- 12 x Groove Adapters
- Carrying Case
Fixturlaser 1-0671 PAT2 Pulley Alignment Tool. Get Free Shipping when you buy now from EquipTestPro.com.
