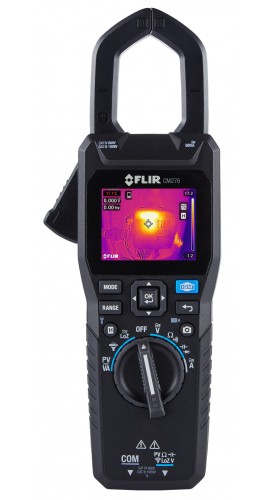

FLIR CM276 IGM Clamp Meter and Thermal Imaging Camera with METERLiNK, 160 × 120, 600 A is available at EquipTestPro.com with fast shipping and great prices.
Availability: 2 to 3 Weeks
FLIR CM276 IGM Clamp Meter and Thermal Imaging Camera with METERLiNK, 160 × 120, 600 A is available at EquipTestPro.com with fast shipping and great prices.
Reliable for safe operations, this clamp meter provides accurate readings of current and frequency across solar photovoltaic, electrical, and mechanical systems. Moreover, quickly identify problems with solar photovoltaic (PV) cells using PV test leads and PV plugs (sold separately), safely measuring up to 1500 V.
Take advantage of thermal imaging's capabilities to detect failing components early on and identify the root issue for further testing and investigation. Infrared Guided Measurement (IGM) provides a quick and dependable way to detect hot spots and overloaded circuits from a safe distance. In addition, connect to the METERLiNK app for data tracking, monitoring, and reports.
Features
Applications
| Thermal Imaging | |
| Color Palettes | Iron, rainbow, arctic, white hot and black hot |
| Focus | Fixed |
| Sensitivity | 150 mK |
| Field of View [V x H] | 44 x 57° |
| Thermal Imaging Detector | FLIR Lepton microbolometer |
| IR | Spectral response: 8 to 14 μmTemperature measurement range: 14 to 572°F (-10 to 300°C)Temperature resolution: 0.1°F (0.1°C)Temperature accuracy: ±5.4°F (3°C) or ±3% of the reading; whichever is greater |
| Emissivity Adjustment | 0.1 to 1 (default is 0.95); select from three presets or set manually |
| Laser | Pointer type: Class 1Pointer power: ≤0.39 mWWavelength: 640 to 660 nm |
| Display | 2.4" (609 mm) TFT screen |
| Storage Media | eMMC 8 GB |
| IR Resolution | 160 × 120 (19,200 pixels) |
| Image Modes | Thermal MSX (Multi Spectral Dynamic Imaging), thermal camera only, digital camera only |
| Visual Imaging | |
| Resolution | Resolution: 2 MP (1600 × 1200 pixels) |
| Focus | Fixed |
| Field of View | 71° × 56° |
| Measurements and Analysis | |
| AC/DC | Current: Range 600 A/basic accuracy ±2%Voltage: Range 1000 V/basic accuracy ±1% |
| Auto Range | Yes, with manual range option |
| Capacitance | Range 1000 µF/basic accuracy ±1% |
| Continuity Check Threshold | <30 Ω beeper on, >150 Ω beeper off |
| Diode Range | 1.5 V/basic accuracy ±1.5% |
| Flex Input | AC A: Range 3000 A/basic accuracy ±1%Frequency counter: Range 10 kHz/basic accuracy ±0.1% |
| Inrush AC Current Range | 600 A/basic accuracy ±3% |
| LoZ Mode | AC voltage: Range 60, 600, 1000 V/basic accuracy ±1%DC voltage: Range 60, 600, 1000 V/basic accuracy ±1% |
| Measuring Rate | 3 samples per second |
| Resistance | Range 60 KΩ/basic accuracy ±1% |
| Temperature | Accuracy: ±5.4°F (3°C) or ±3% of rdg; whichever is greaterRange: 14 to 572°F (-10 to 300°C) |
| True RMS | Yes |
| VFD | AC current: Range 600 A/basic accuracy ±2%AC voltage: Range 1000 V/basic accuracy ±1% |
| PV | DC V: Range 1000 V/basic accuracy ±2%, range 1500 V/basic accuracy ±2% with optional accessories test leads (sold separately) DC power: Range 900 kVA/basic accuracy ±2% |
| General Specifications | |
| Communication & Data Storage | Connectivity: BluetoothData logging and storage: 10 sets of 40 K scalar measurements, 30 K images |
| Power | Auto power off For device: option to OFF, 2, 5, or 10 minutesFor worklight only: option to OFF, 5, 15, or 30 minutesBattery: Rechargeable 3.7 V, 5400 mAh LiPo |
| Drop Test | 6.5' (2 m) |
| Product Certifications | cULus, CE, FCC, UKCA |
| ROHS and Reach Directive | Yes |
| IP Rating | IP40 |
| Worklights | 2 x white LED |
| Dimension | 10.7 × 3.94 × 2" (272 × 100 × 51.5 mm)Jaw opening: 1.37" (35 mm) |
| Weight | 2.8 lbs (560 g) |
