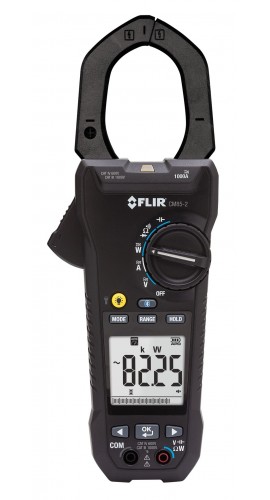

FLIR CM85-2 True RMS Power Clamp with Bluetooth connectivity, 1000 A

Availability: 2 to 3 Weeks

FLIR CM85-2 Offers

Simplify motor analysis with this power clamp that features advanced troubleshooting capabilities such as VFD mode for accuracy when working on VFD-controlled equipment, integrated inrush current, and phase rotation. In addition, this power clamp is compatible with the MEASURELiNK app for log comparisons, reporting, custom alarm thresholds, and multiple-meter connectivity.

Features

• VFD mode for superior accuracy on VFD-controlled equipment
• Inrush mode to capture AC Current spikes during start-up
• Bluetooth connectivity up to 32' (10 m)
• VFD mode increases accuracy when working on VFD-controlled equipment and conduct multiple conductor measurements with true RMS AC current up to 1000 A
• Purpose built for inspections: Dual LED lights eliminate the need to carry additional tools, and an ergonomic industrial design offers ease of use and operation
• Inpect at a safe disctance: Stream live readings in real time from the meter to your mobile device over Bluetooth using the METERLiNK app from a distance up to 32' (10 m)

METERLiNK app

The METERLiNK® app allows you to monitor a variety of environmental and electrical conditions simultaneously with the ability to connect with up to seven FLIR compatible meters at once. METERLiNK allows you to safely capture images and monitor hazardous areas remotely and in real time. Whether you're connecting several FLIR clamp meters, digital multimeters, or any of the new METERLiNK app compatible meters, you will be able to keep tabs on key readings around your facility and easily share them with your team.

Applications

• Advanced power analysis and variable frequency drive (VFD) filtering functions
• Accurately analyze voltage in complex machinery
• Harmonics, inrush, current, and phase rotation testing

FLIR CM85-2 Specifications

Specifications

Measurement Ranges and Accuracy
Voltage	DC:99.99 V, ±(0.7% + 2 digits)999.9 V, ±(0.7% + 2 digits)AC:0.05 to 99.99 V, ±(1% + 5 digits)999.9 V, 50 to 500 Hz
VDF	ACV:0.05 to 99.99 V, 50 to 60 Hz ±(1% + 5 digits)999.9 V, 50 to 60 Hz ±(1% + 5 digits)ACA:0.1 to 99.99 A, 50 to 60 Hz ±(2% + 5 digits)999.9 A, 50 to 60 Hz ±(2% + 5 digits)
Current	DC:99.99 A, ±(2% + 0.5 A)999.9 A, ±(2% + 5 digits)AC: 0.10 to 99.99 A, 50 to 60 Hz ±(2% + 5 digits)999.9 A, >60 to 400 Hz ±(2.5% + 5 digits)
Peak Hold	ACV:140 V, ±(3% + 15 digits)1400 V, ±(3% + 15 digits)ACA:140 A, ±(3.5% + 15 digits)1400 A, ±(3.5% + 15 digits)
Frequency	20 to 99.99 Hz, ±(0.5% + 3 digits)20 to 999.9 Hz, ±(0.5% + 3 digits)0.02 to 9.999 kHz, ±(0.5% + 3 digits)
Total Harmonic Distortion ACA/ACV	99.9%, ±(3% + 10 digits)
Harmonic Distortion	H01–H12: 99.9%, ±(5% + 10 digits)H13-H25A: 99.9%, ±(10% + 10 digits)
Inrush Current ACA	99.99 A, ±(3% + 0.3 A)999.9 A, ±(3% + 5 digits)
Watts	DC:9.999 kW (10 V, 5 A minimum), ±(3% + 0.05 kW)99.99 kW (10 V, 5 A minimum), ±(3% + 0.5 kW)999.9 kW (10 V, 5 A minimum), ±(3% + 10 digits)AC:9.999 kW (10 V, 5 A minimum), ±(3% + 10 digits)99.99 kW (10 V, 5 A minimum), ±(3% + 10 digits)999.9 kW (10 V, 5 A minimum), ±(3% + 10 digits)
Power Factor	-1 to 0 to 1, ±3° ±1 digit
Resistance	999.9 Ω, ±(1% + 5 digits)9.999 kΩ, ±(1% + 3 digits)99.99 kΩ, ±(1% + 3 digits)
Continuity	999.9 Ω, ±(1% + 5 digits)
Diode	0.4 to 0.8 V, ±0.1 V
Capacitance	3.999 μF, ±(1.9% + 8 digits)39.99 μF, ±(1.9% + 8 digits)39.99 μF, ±(1.9% + 8 digits)3.999 mF, ±(1.9% + 8 digits)
Measuring Rate	3 times per second
Meter Data
Jaw Opening	1.77" (45 mm)
Bluetooth Range	32' (10 m)
Data Recording	Available via METERLiNK app
Drop Test	4' (1.2 m)
Category Rating	CAT IV-600 V, CAT III-1000 V
General Specifications
Operating Ambient Temperatures and Relative Humidity	32 to 50°F (0 to 10°C), non-condensing50 to 86°F (10 to 30°C), ≤80% RH86 to 104°F (30 to 40°C), ≤75% RH104 to 122°F (40 to 50°C), ≤45% RH
Storage Temperature and Relative Humidity	14 to 122°F (-10 to 50°C)0 to 80% RH (batteries not fitted)
Temperature Coefficient	0.2 x (specified accuracy)/°C, <18°C, >28°C
Operating Altitude	6562' (2000 m)
Shock Vibration	Random vibration per MIL‐PRF‐28800f Class 2 (5 to 55 Hz, 3 g maximum)
Pollution Degree	2
Power Requirements	6 x 1.5 V AAA alkaline batteries
Battery Life	50 hours with alkaline batteries (backlight, worklight, and Bluetooth off)
Auto Power Off	Approximately 30 minutes
Certifications	UL, CE, FCC, IC, UKCA, CSAUS
Complies with Safety Standards	IEC 61010-1:2010, IEC 61010-2-032:2012, IEC 61010-2-033:2012
EMC	FCC: 47 CFR part 15 subpart BCE:EN IEC 61326-1:2021EN IEC 61326-2-2:2021EN 301 489-1 V2.2.3 (2019-11)EN 301 489-17 V3.2.4 (2020-09)RF:ETSI EN 300 328 V2.2.2EN 62479:2010EN 50663:2017
Dimensions	10.87 x 3.98 x 1.97" (276 x 101 x 50 mm)
Weight	1.43 lbs (0.65 kg), including batteries

What's included with the FLIR CM85-2

• True RMS Power Clamp
• Set of CAT IV-600V Test Leads
• 6 x LR03 Alkaline Batteries
• Quick Start Guide
• Warranty Card
• Limited Lifetime Warranty
