Panoptix LiveScope System with Thru-Hull Mount Transducer
Took Scanning Sonar & Made It Panoptix
Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn't need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!
Panoptix LiveScope Forward Sonar
LiveScope Forward is an excellent tool for scouting and fishing out ahead of your cast. You're looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat up to 200' even while your boat is stationary.

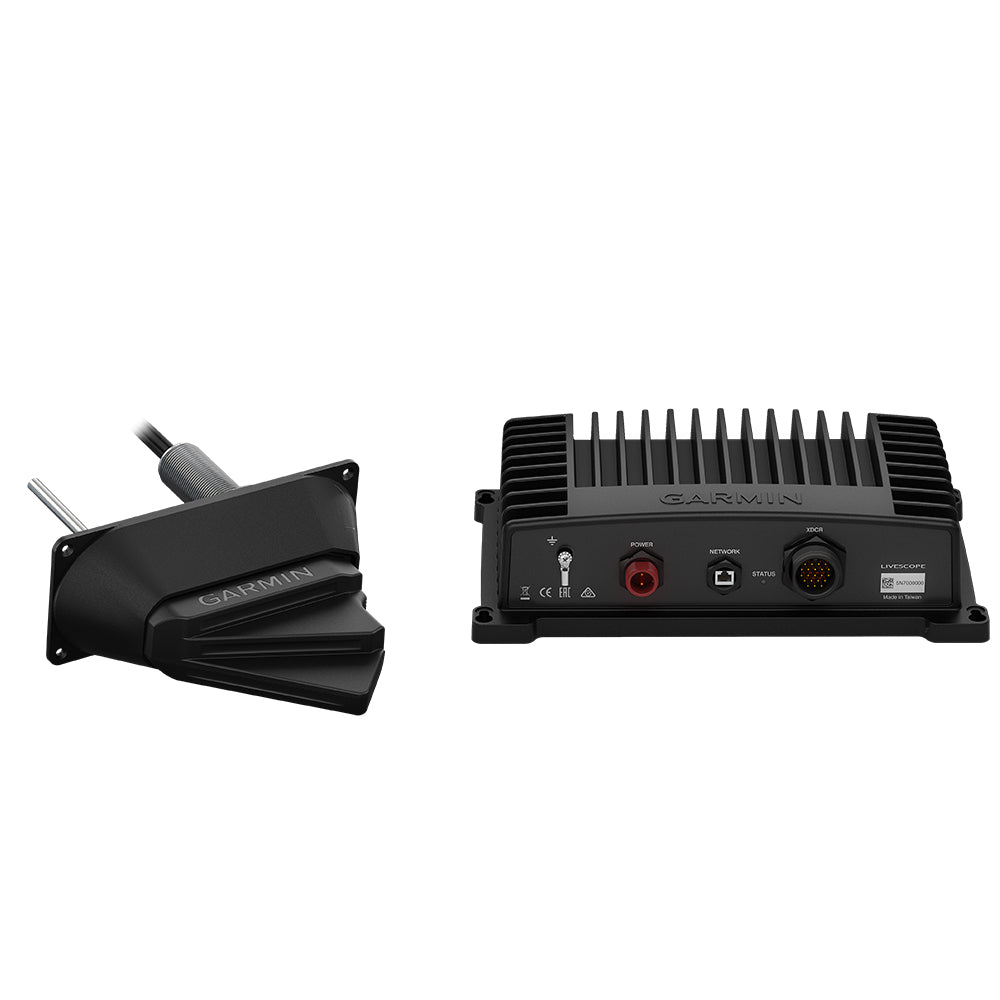

The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 thru-hull transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter. Use the transducer as a supplemental traditional and ClearV sonar source to see a historical representation of structure and fish below your boat.
Compatible with GPSMAP 8400/8600 series MFDs, GPSMAP 7400/7600, 1002/1202, GPSMAP 1202/1202xsv Touch and 702/902 series chartplotters and ECHOMAP Plus 70cv/70sv and 90sv chartplotter/sonar combo series.
Garmin Panoptix LiveScope System With Thru-hull Mount
Model: 010-02233-00Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesnt need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!
LiveScope Forward is an excellent tool for scouting and fishing out ahead of your cast. Youre looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat up to 200 even while your boat is stationary.
The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 thru-hull transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter . Use the transducer as a supplemental traditional and ClearVü sonar source to see a historical representation of structure and fish below your boat.
Compatible with GPSMAP® 8400/8600 series MFDs, GPSMAP 7400/7600, 1002/1202, GPSMAP 1202/1202xsv Touch and 702/902 series chartplotters and ECHOMAP Plus 70cv/70sv and 90sv chartplotter/sonar combo series
Specifications| Physical dimensions | |
| GLS 10 sonar black box | 9.6" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm) |
| LVS32-TH transducer without fairing block | 9.6" x 1.8" x 5.4" (24.4 x 4.6 x 13.7 cm) |
| LVS32-TH transducer with fairing block | 9.6" x 3.4" x 8.1" (24.4 x 8.6 x 20.6 cm)LVS32-TH transducer with fairing block: 9.6" x 3.4" x 8.1" (24.4 x 8.6 x 20.6 cm) |
| General | |
| Water rating | IPX7 |
| Garmin Marine Network ports | 1 (small connector) |
| Temperature range | -15 C to 70 C |
| Sonar Features & Specifications | |
| Frequencies supported | 530 - 1,100 kHz |
| Transmit power | 500 W |
| Maximum depth | Forward: 200 (61.0 m) |
| Electrical | |
| Power input | 10-32 V |
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Other | |
| Beamwidth | 20° x 135° |
| Transducer cable length | 20 ft. |
| Transducer number of pins | 21 |
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Garmin |
| Weight: |
5.6 lb |
| Categories v2: |
Marine Navigation & Instruments | Transducers |
| Category v1: |
TRANSDUCERS |
| UPC: |
753759225384 |
| Product Installation: |
Download PDF |
